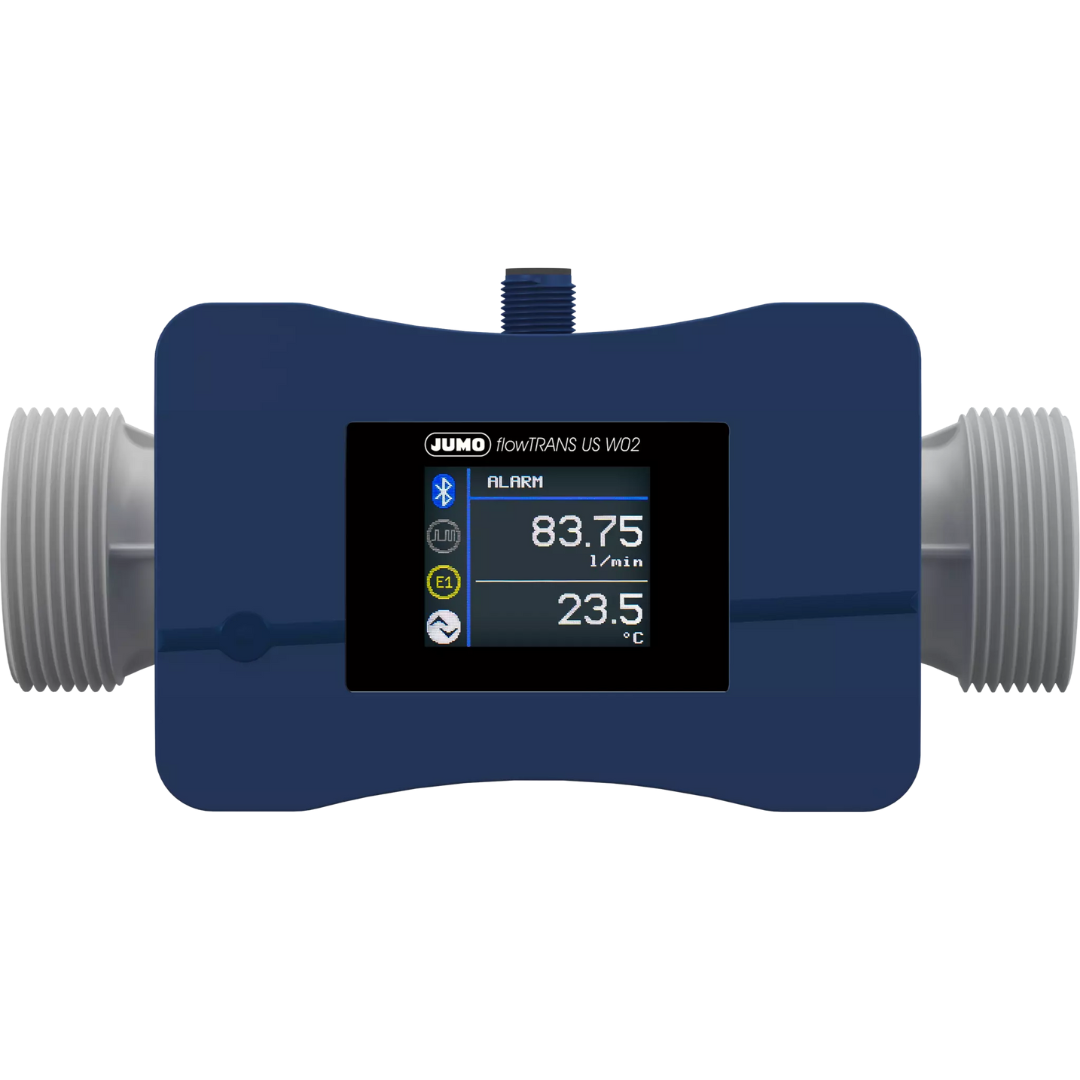

JUMO flowTRANS US W02

Absolut wear and maintenance-free ultrasonic technology allows the flowmeter to measure with high precision and independent of the conductivity. It can also be extended with temperature and pressure sensors. The device can be integrated into sensor networks via JUMO digiLine or IO-Link interface. Configuration is convenient via Bluetooth and app.

Categories: Flow, Flow measuring devices

Technical data
Downloads

Technical data

General technical data
Measuring principle	Ultrasonic (delay difference)
Accuracy	1 % of the measured value
Measuring dynamics	Up to 1:100 (0.1 to 10 m/s)
Medium temperature	Up to 80 °C (up to 95 °C with lower accuracy)
Nominal pressure	PN 16
Ambient temperature	60 °C
Outputs	IO-Link (configurable: Pulse output (up to 10 kHz), Analog output, Binary input/output
Display	TFT display for easy operation and measured value display
Process connection	Pipe made of high-performance plastic with nominal widths from DN 15 to DN 32, G-type external thread with integrated seal
Materials in contact with the medium	PPSU, PEEK, EPDM (FKM)
Protection type	IP65/IP67
Housing	Metal-free plastic housing
Electrical connection	M12 connector
Additional measurands (optional)	Temperature, pressure
Special features	Configuration via Bluetooth and app as well as RS485 and software (Digital Sensor Management); measurement of up to 3 measurands at 1 measuring point
Approvals	UL (except for DN15)

General technical data

Measuring principle

Ultrasonic (delay difference)

Accuracy

1 % of the measured value

Measuring dynamics

Up to 1:100 (0.1 to 10 m/s)

Medium temperature

Up to 80 °C (up to 95 °C with lower accuracy)

Nominal pressure

PN 16

Ambient temperature
