JUMO miroVIEW

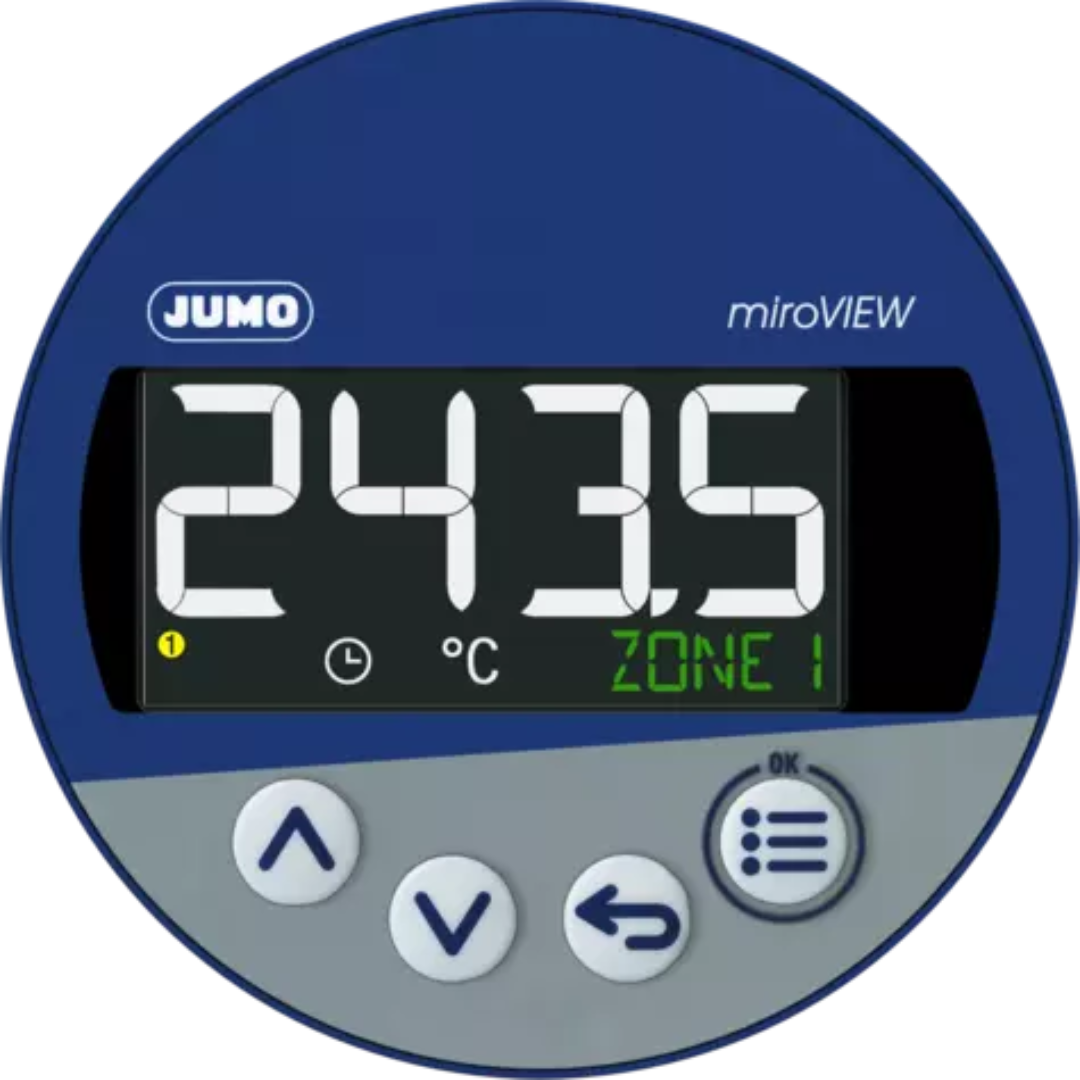

The JUMO miroVIEW is a digital indicator with measurement input for RTD temperature probes for panel mounting. In the 60 mm and 80 mm round installation format, the JUMO miroVIEW offers an alternative solution for mechanical dial thermometers or contact dial thermometers.

Categories: Digital indicators, Digital indicators, Digital indicators, Digital indicators, Flow, Level, Pressure, Temperature

Technical data
Downloads

Technical data

general technical data
Measurement inputs	RTD temperature probe
Outputs	Up to 2 relays
Voltage supply	AC 230 V, +10/-15 %, 48 to 63 Hz, AC 115 V, +10/-15 %, 48 to 63 Hz, DC 12 to 24 V, +15/-15 %
Formats	701590: (Ø 60 × 80) mm, 701591: (Ø 80 × 80) mm
Approval	cULus
Special features	Intuitive startup and operation, integrated timer function, service and operating hours counter, quick wiring through PUSH IN technology, cost-effective solution for individual display functions

general technical data

Measurement inputs

RTD temperature probe

Outputs

Up to 2 relays

Voltage supply

AC 230 V, +10/-15 %, 48 to 63 Hz, AC 115 V, +10/-15 %, 48 to 63 Hz, DC 12 to 24 V, +15/-15 %

Formats

701590: (Ø 60 × 80) mm, 701591: (Ø 80 × 80) mm

Approval

cULus

Special features

Intuitive startup and operation, integrated timer function, service and operating hours counter, quick wiring through PUSH IN technology, cost-effective solution for individual display functions
