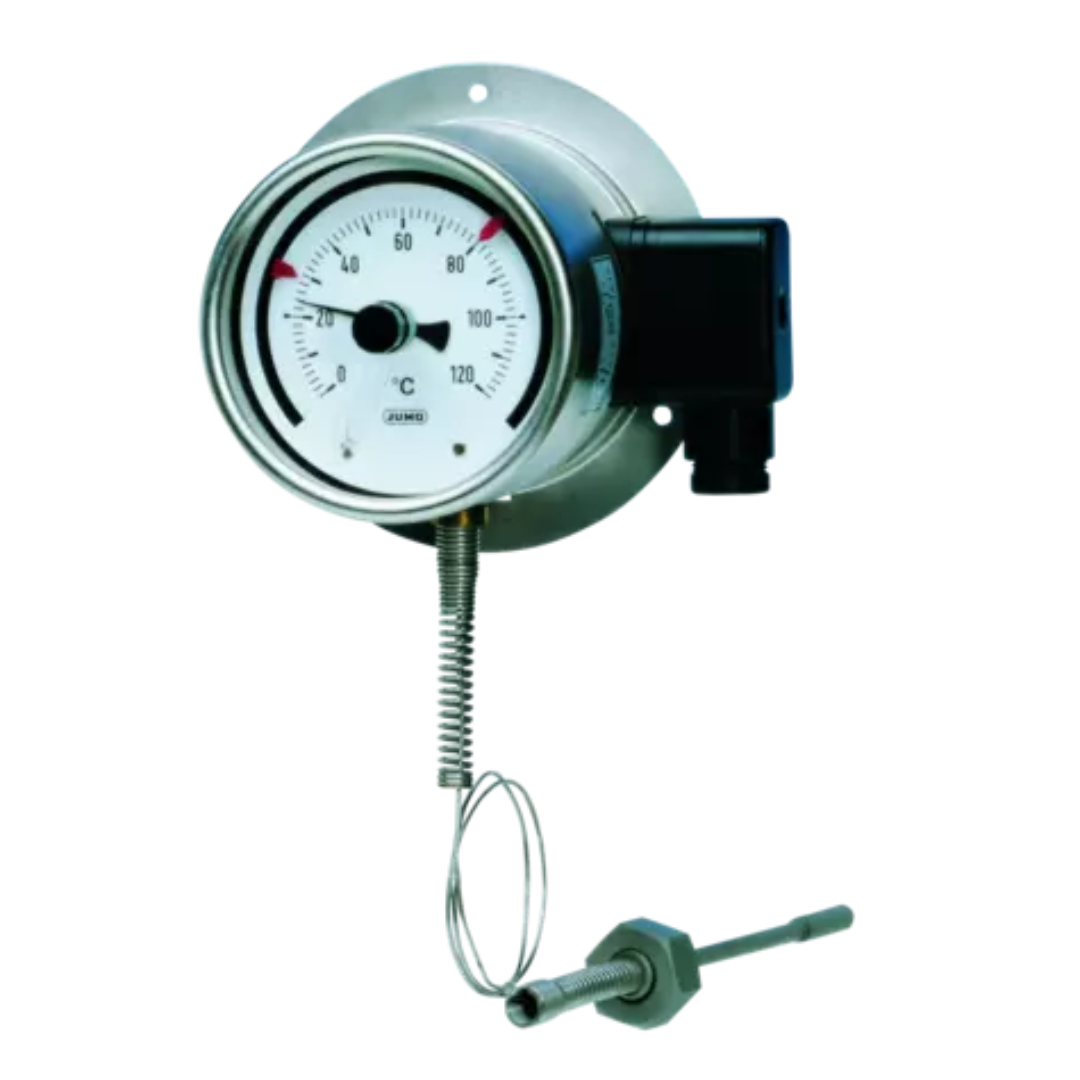

Contact dial thermometer

Contact dial thermometers are universally-applicable devices with actual value display for temperature measurement, control and monitoring.

Technical data

general technical data
Measuring range	-30 to +500 °C
Display range	-40 to +600 °C
Features	Temperature controller with up to 2 microswitches, IP65 possible (type 608523)
Accuracy class according to DIN EN 13190	Class 1.5
Capillary/rigid thermowell	Rigid thermowell or capillary (up to 10 m)
Probe outlet	Vertical or horizontal
Housing size	60 mm, 80 mm, 100 mm made from CrNi (608540 made from polyamide, 80 mm only)
Areas of application	Monitoring of the oil temperature in industrial transformers, process technology

general technical data

Measuring range

-30 to +500 °C

Display range

-40 to +600 °C

Features

Temperature controller with up to 2 microswitches, IP65 possible (type 608523)

Accuracy class according to DIN EN 13190

Class 1.5

Capillary/rigid thermowell

Rigid thermowell or capillary (up to 10 m)

Probe outlet
