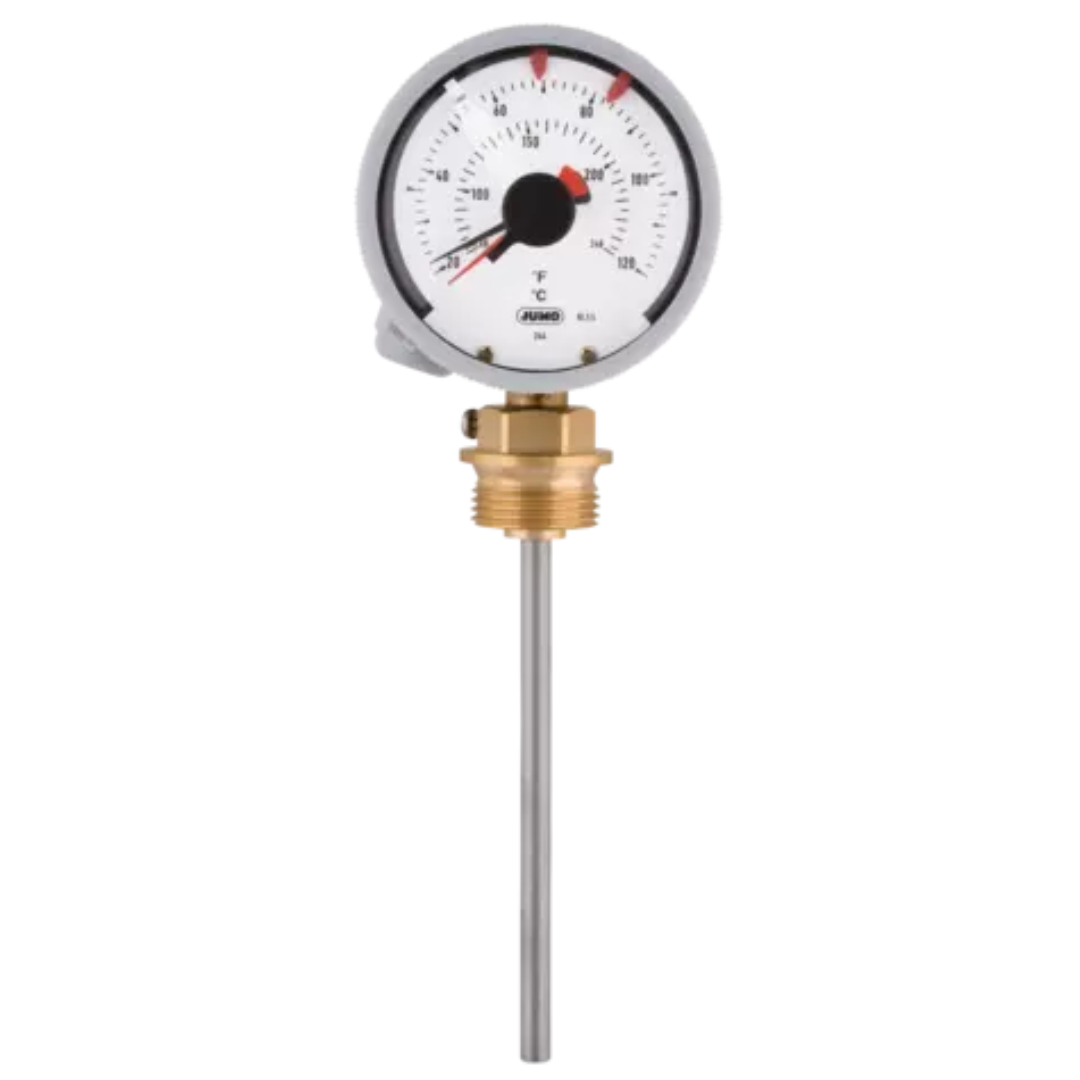

Contact dial thermometer
The contact thermometer is a universally-applicable device with actual value display for temperature measurement, control, and monitoring.
Technical data
| general technical data | |
|---|---|
| Measuring range | -30 to +500 °C |
| Display range | -40 to +600 °C |
| Features | Temperature controller with up to 2 microswitches, IP65 possible (type 608523) |
| Accuracy class according to DIN EN 13190 | Class 1.5 |
| Probe outlet | Vertical or horizontal |
| Housing size | 60 mm, 80 mm, 100 mm made from CrNi (608540 made from polyamide, 80 mm only) |
| Capillary/rigid thermowell | Rigid thermowell or capillary (up to 10 m) |
| Areas of application | Monitoring of the oil temperature in industrial transformers, process technology |
Downloads
Data Sheet
Operating Manual
Certificate
This way to your product
Brochure
– Control
Declaration of Conformity / White Paper
Order details
