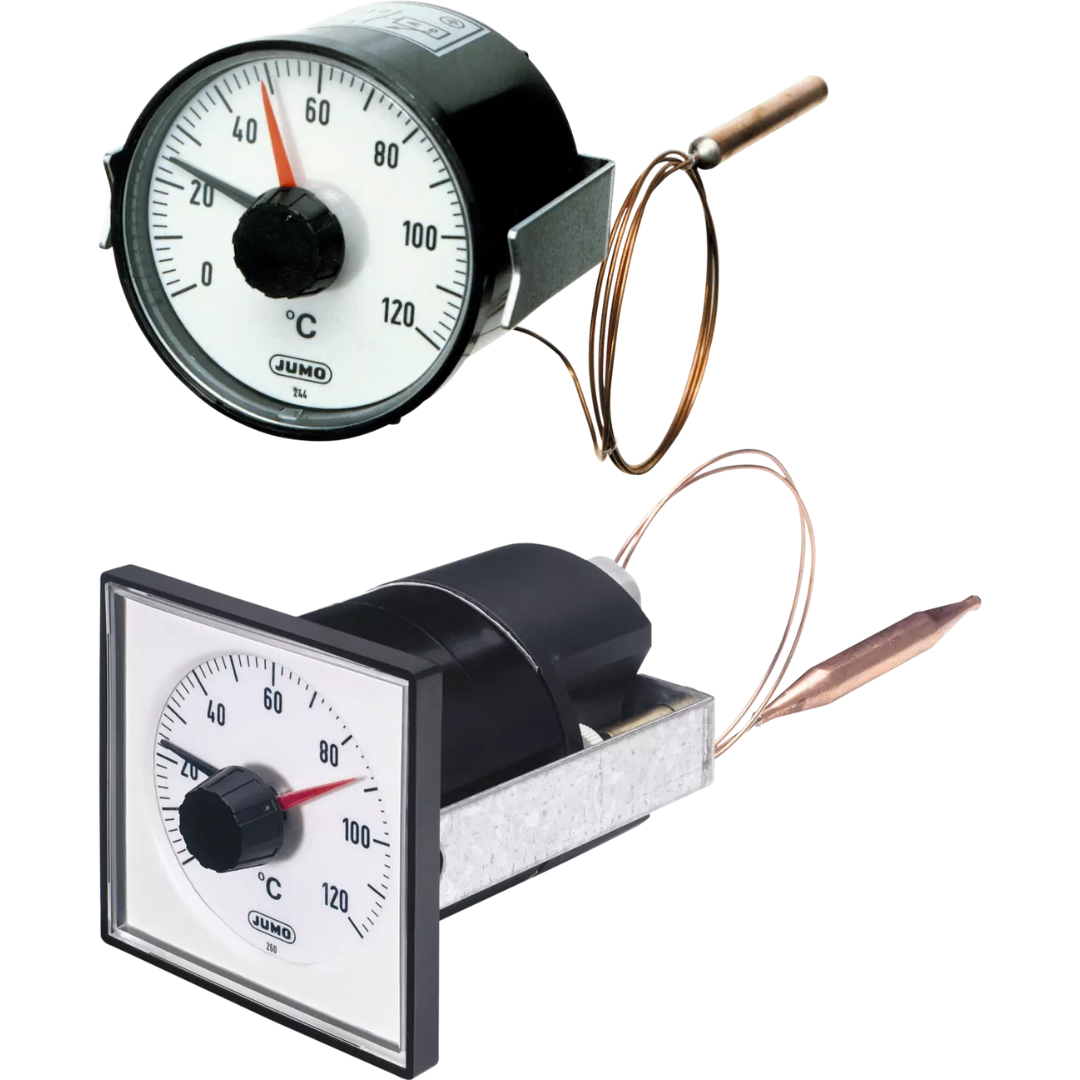

MICROSTAT-M
The MICROSTAT-M is a universally-applicable electromechanical temperature controller with actual value display. The device comes in a plastic housing with a liquid or gas-filled measuring system.
Technical data
| general technical data | |
|---|---|
| Measuring range | -40 to +600 °C |
| Display range | -40 to +600 °C |
| Features | Temperature controller with a microswitch in the flush-mounted housing made of plastic; optionally with sheet steel case |
| Accuracy class according to DIN EN 13190 | Class 2 |
| Housing size | 60 mm, 80 mm, 100 mm |
| Areas of application | Compressor engineering, oven engineering |
| Capillary/rigid thermowell | With capillary |
