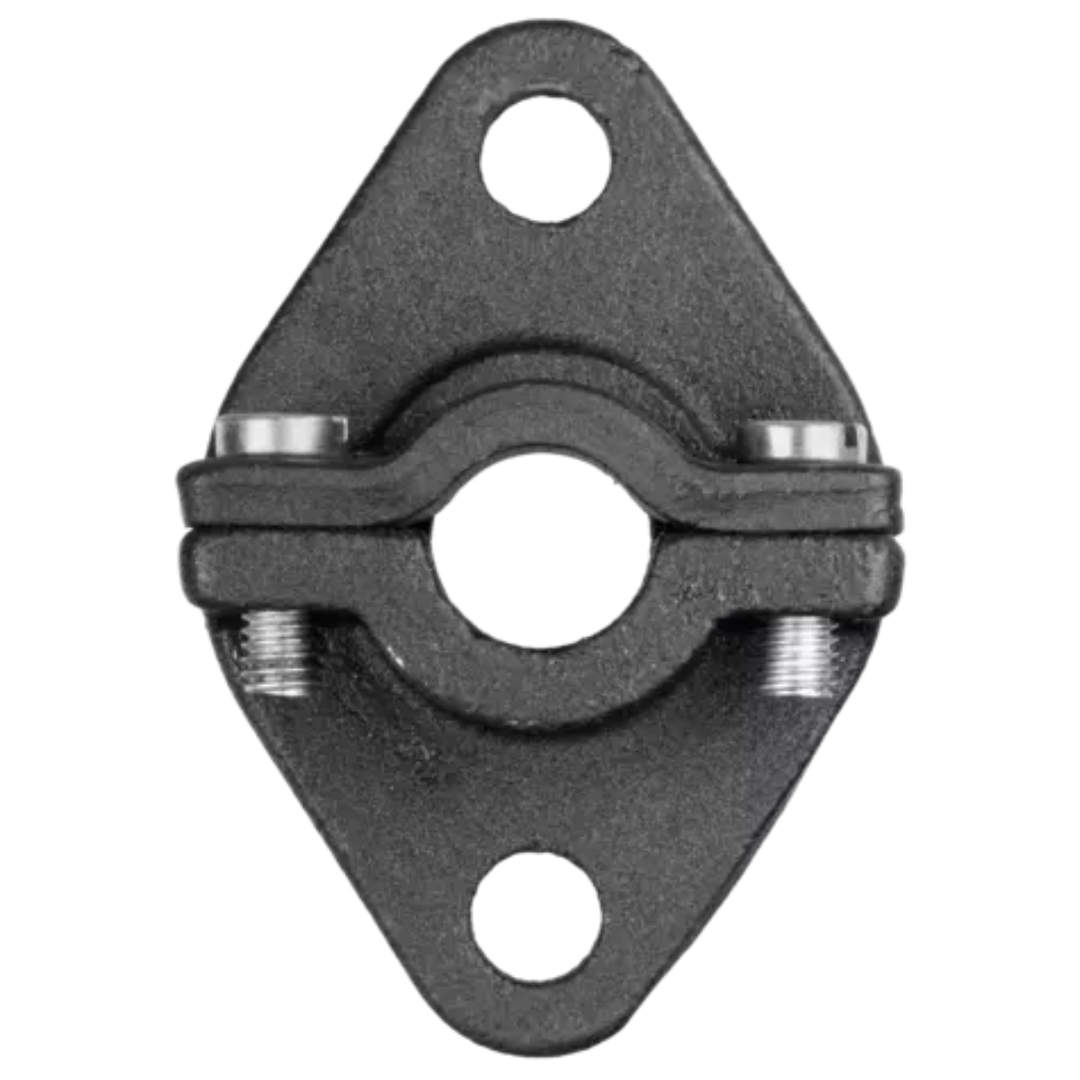

Flanges
Temperature probes can be easily mounted and removed with stop flanges made of different materials and for different protection tube diameters. The variable positioning of the insertion length is also an advantage. A counter flange can be used to seal the measuring point up to 1 bar.
Technical data
| general technical data | |
|---|---|
| Temperature | Up to 600 °C |
| Features | Variable insertion lengths, simple mounting, and straightforward replacement |
| Diameter | 6, 8, 10, 11, 15, 22, or 32 mm |
| Materials | Gray cast iron/sheet flanges made of steel, zinc-plated |
| Application possibilities | Installation of RTD temperature probes and thermocouples (e.g. in furnace construction) |
| Special features | Sealing of the measuring point up to 1 bar with a counter flange |
