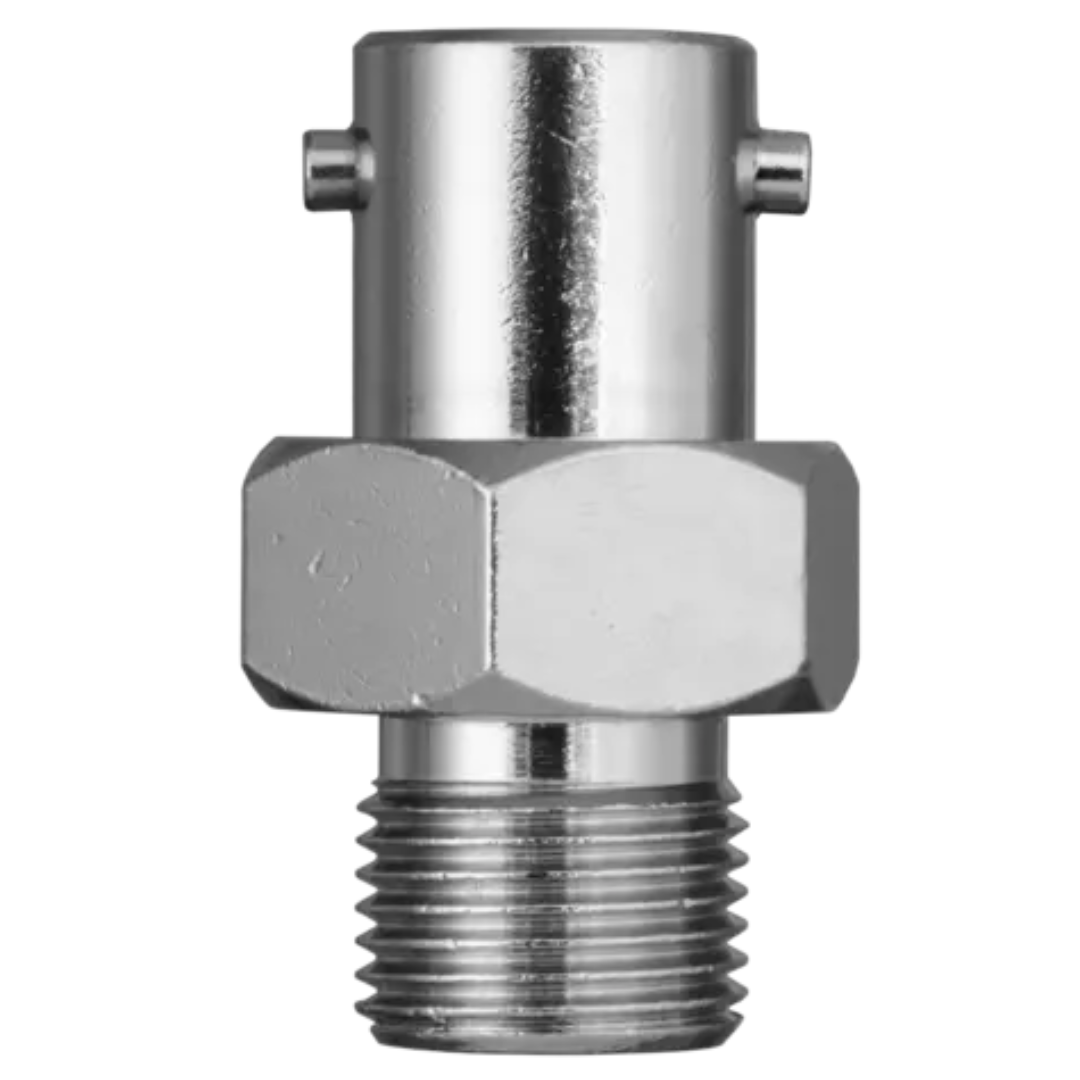

Bayonet sockets
Bayonet fasteners allow temperature probes to be quickly locked and unlocked at the installation location The option to change the insertion length is also an advantage. Versions with different threads and diameters can be combined using corresponding socket diameters.
Technical data
| general technical data | |
|---|---|
| Temperature | Up to 600 °C |
| Features | Variable insertion length, simple mounting, and straightforward replacement |
| Diameter | 12 mm or 14 mm (external), 6.5 mm or 8.5 mm (internal) |
| Thread | G 1/4, 3/8, M 10 × 1, M 12, M 12 × 1, M 14 × 1.5 |
| Length | 20, 30, 40, 50, 60, 100 mm |
| Application possibilities | Application possibilities Installation of push-in RTD temperature probes and push-in thermocouples |
