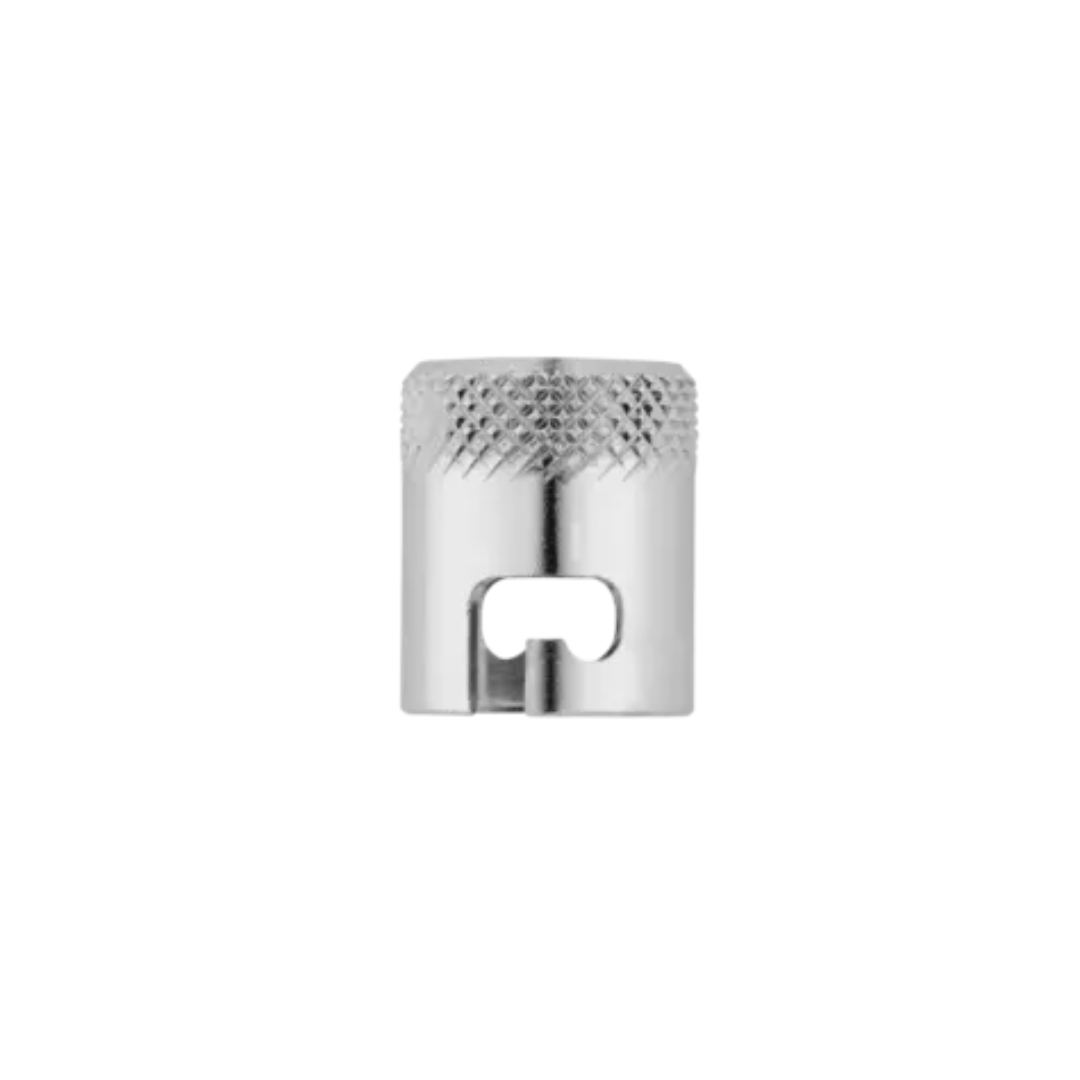

Bayonet fasteners
Bayonet fasteners allow temperature probes to be quickly locked and unlocked at the installation location. The option to change the insertion length is also an advantage. Versions with different threads and diameters can be combined using corresponding socket diameters.
Technical data
| general technical data | |
|---|---|
| Temperature | Up to 600 °C |
| Features | Variable insertion length, simple mounting, and straightforward replacement |
| Bayonet diameter | 12.2, 14.5, and 15.2 mm |
| Thread diameter | 5.4 or 7 mm |
| Length | 18 mm |
| Material | Brass 2.0401.20, nickel-plated |
| Application possibilities | Installation of push-in RTD temperature probes and push-in thermocouples |
| Special features | Quick locking and unlocking of temperature probes |
| Diameter | 15 mm or 18 mm |
