Measuring inserts for screw-in RTD temperature probes

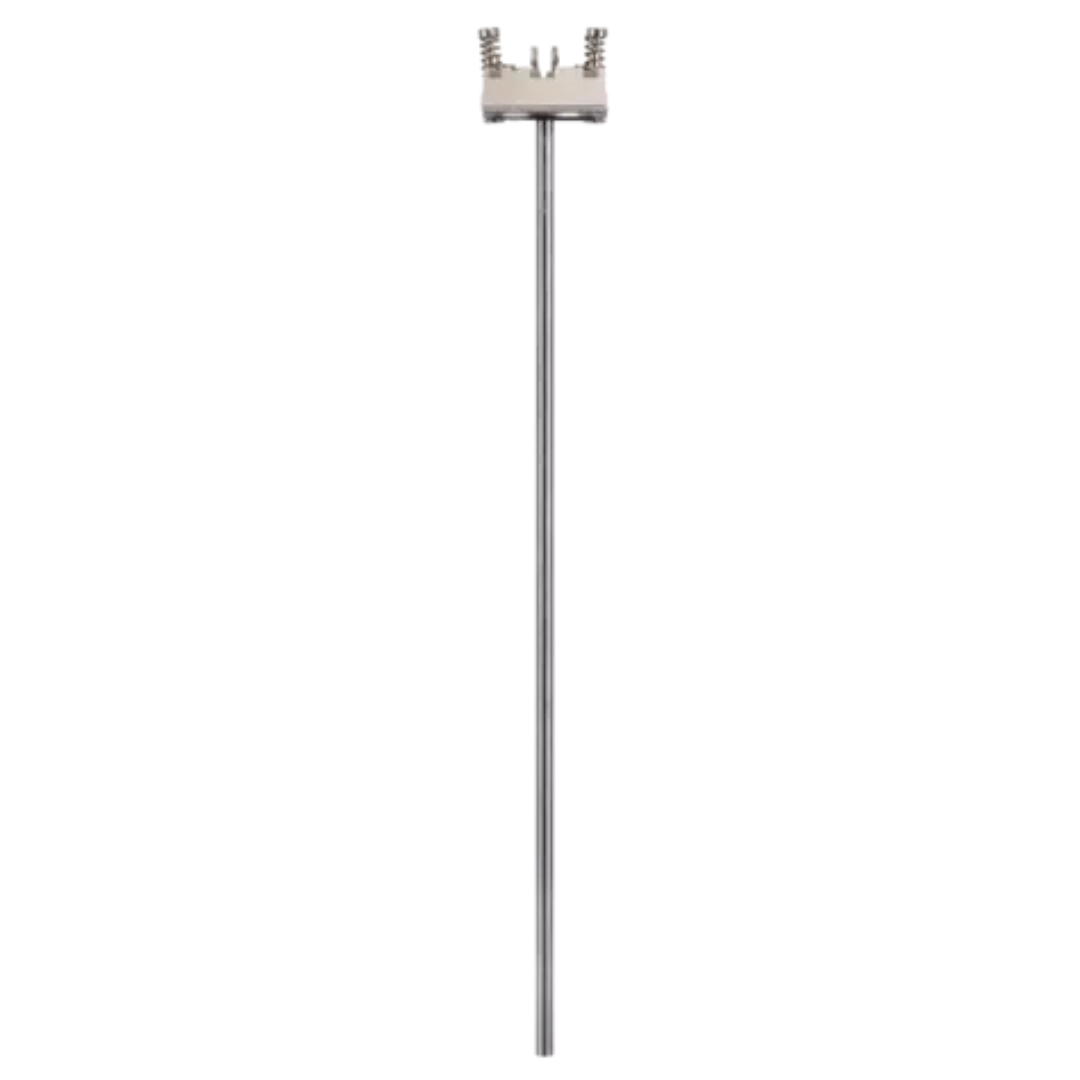

The measuring inserts for screw-in RTD temperature probes with a form B terminal head are used as replacements. They are suitable for RTD temperature probes according to data sheet 902020 and 902820. Sheath measuring inserts are available for instances when the length of the measuring insert is 800 mm or longer.
Technical data
| general technical data | |
|---|---|
| Temperature range | -200 to +600 |
| Sensor | Pt100 (Pt500 or Pt1000 as optional extra) |
| Connection | Two-wire, three-wire, or four-wire circuit |
| Connection socket | Suitable for form B, BBK, and BUZ terminal heads |
| Protection tube | Stainless steel 1.4571 |
| Sheath cable | Stainless steel 1.4571 |
| Implementation options | Measuring insert for screw-in RTD temperature probes according to data sheet 901020, 902020, and 902820 |
| Transmitter | Analog transmitter output 4 to 20 mA for RTD temperature probes, analog transmitter output 0 to 10 V for RTD temperature probes, programmable transmitter output 4 to 20 mA/20 to 4 mA for thermocouples or RTD temperature probes |
| Option | Transmitter; two-wire, three-wire, or four-wire circuit; Pt500 or Pt1000 sensors |
| Measuring insert length | 315 to 800 mm |
