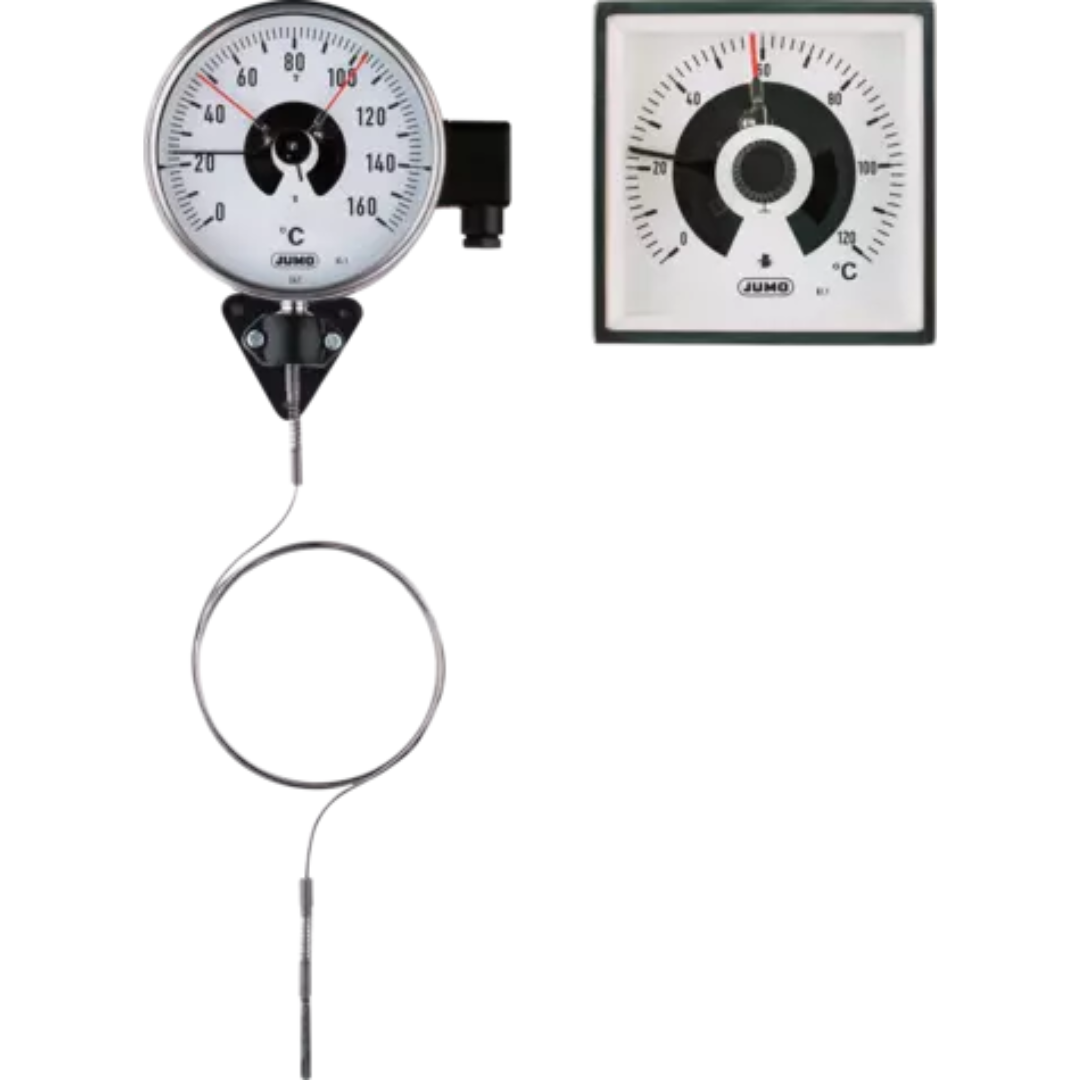

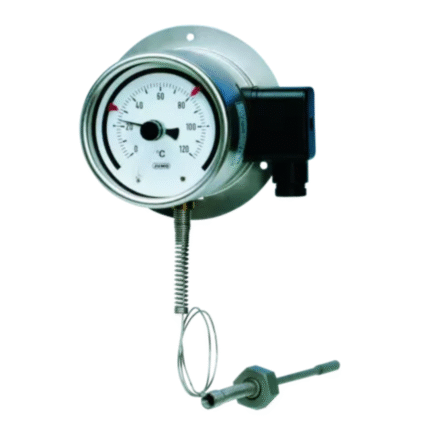

Contact dial thermometers

Contact dial thermometers are universally-applicable devices with actual value display for temperature measurement, control, and monitoring. The slow-action contact/magnetic snap contact closes or opens an electrical circuit depending on the movement direction at the set limit values.

Categories: Contact dial thermometers, Temperature

Technical data
Downloads

Technical data

general technical data
Measuring range	-40 to +450 °C
Display range	-50 to +500 °C
Housing size	100 mm, 160 mm, and front panel 96 × 96 mm
Accuracy class according to DIN EN 13190	Class 1
Features	Temperature controller in flush-mounted housing or surface-mounted housing; ambient temperature compensation
Areas of application	Process technology, oven engineering
Capillary/rigid thermowell	Rigid thermowell or capillary (up to 10 m)
Probe outlet	Vertical or horizontal

general technical data

Measuring range

-40 to +450 °C

Display range

-50 to +500 °C

Housing size

100 mm, 160 mm, and front panel 96 × 96 mm

Accuracy class according to DIN EN 13190

Class 1

Features

Temperature controller in flush-mounted housing or surface-mounted housing; ambient temperature compensation

Areas of application
