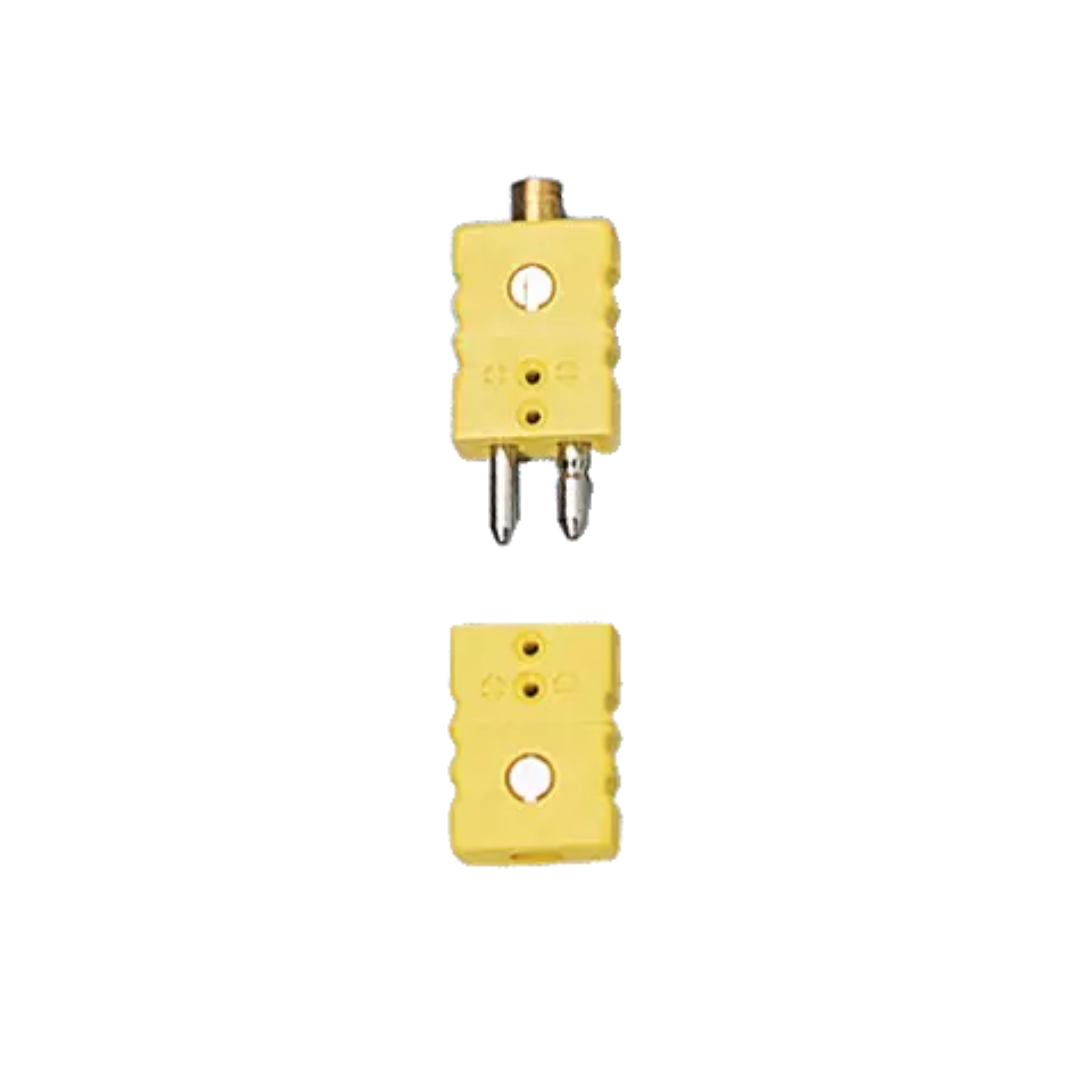

Plug connections
To prevent thermoelectric voltage in the connection between the thermocouple and compensating cable, the contacts for the plug connections and the thermocouple should be made from the same material. Accordingly, non-thermoelectric voltage plug connections with different contacts are available.
Technical data
| general technical data | |
|---|---|
| Temperatures | -60 to +260 °C |
| Features | Easy to replace even with permanently installed cable, quick connection of measuring devices for test purposes, no thermoelectric voltage |
| Type of element | Fe-CuNi “J”, NiCr-Ni “K”, and Pt10Rh-Pt “S” |
| Material | Plastic |
| Sizes | Standard, miniature |
| Types | Connector, coupling, socket |
