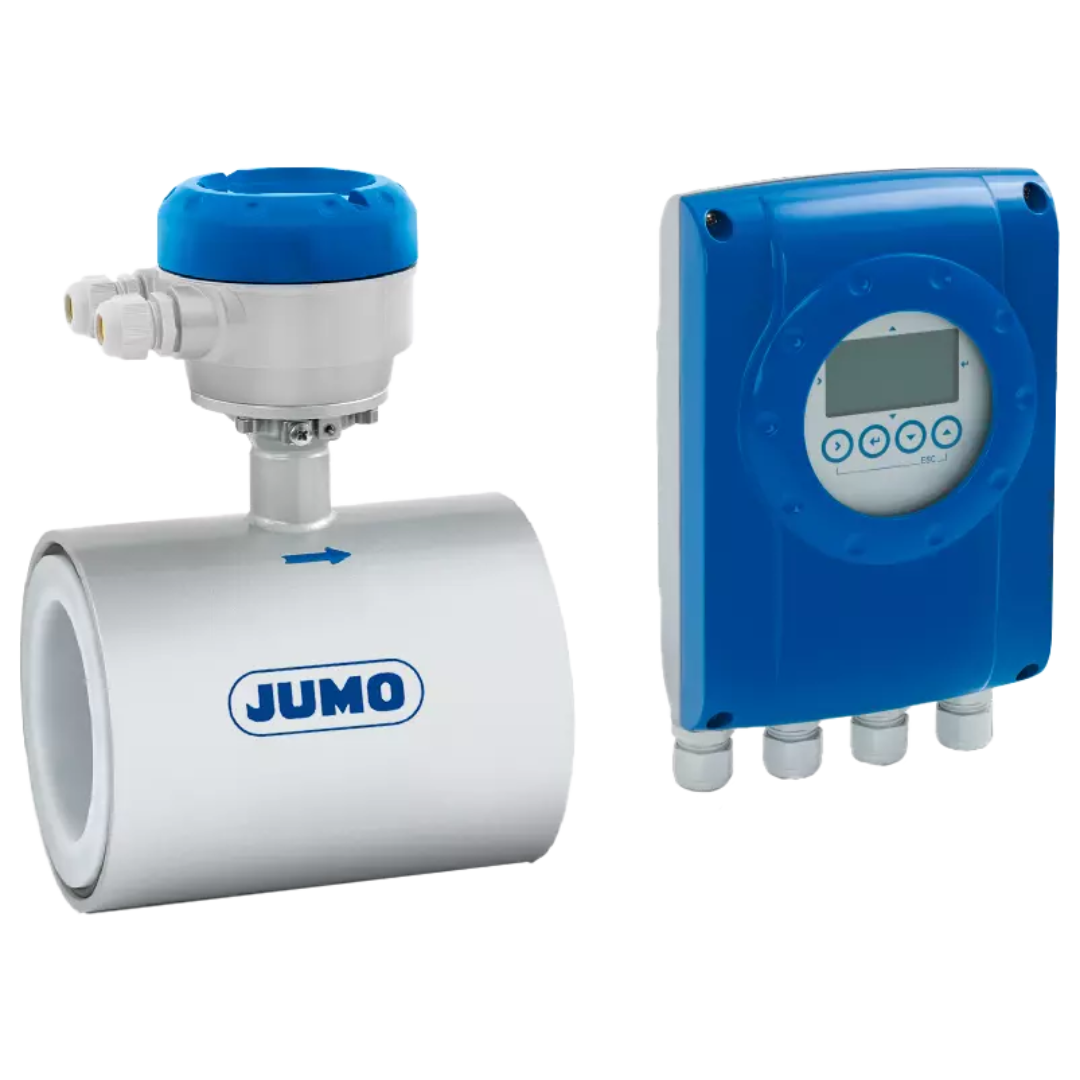

OPTIFLUX 1000
The electromagnetic flowmeter OPTIFLUX 1000 can be used to measure conductive liquids in pipes with nominal widths from DN 10 to DN 150. The device has been designed for standard industrial applications and can be used in liquid media with different properties.
Technical data
| General technical data | |
|---|---|
| Measuring principle | Magnetic-inductive |
| Nominal widths | DN 10 to DN 150 |
| Accuracy | 0.5 % of the measured value |
| Medium temperature | Up to 120 °C |
| Operating pressure | Up to 16 bar |
| Process connection | Connection flange |
| Counter flange | PN 40 (DN 10 to DN 80), PN 16 (DN 100 to DN 150) |
| Lining | PFA |
| Ambient temperature | Up to 65 °C |
| Protection type | IP66/IP67 |
| Outputs | Analog output (4 to 20 mA) with HART and pulse/frequency/status |
| Display | LCD display, white backlight for displaying up to 3 measured values |
