JUMO miroVIEW

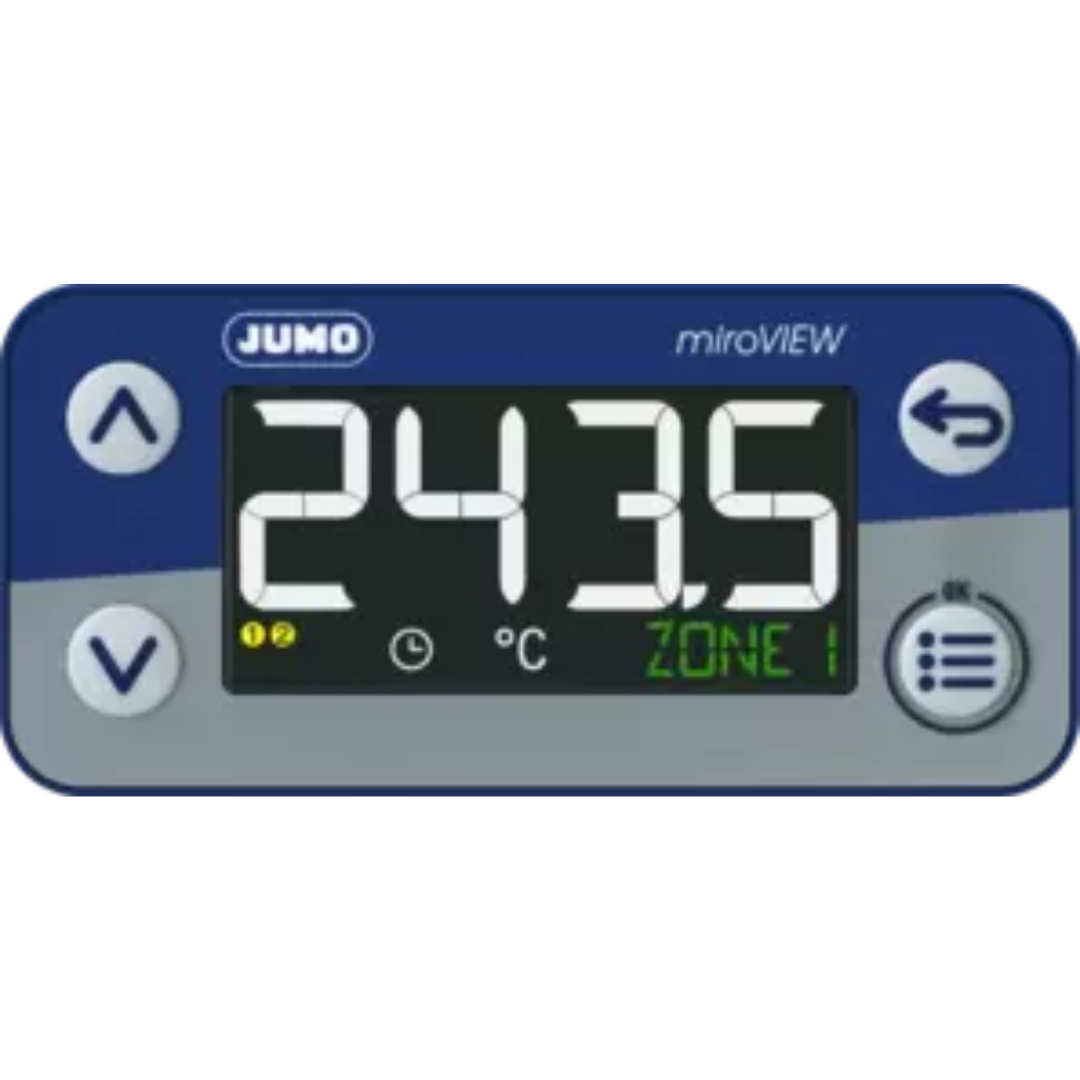

The JUMO miroVIEW is a digital indicator with measurement inputs for RTD temperature probes or thermocouples and standard signals for panel mounting.

Categories: Digital indicators, Digital indicators, Digital indicators, Digital indicators, Flow, Level, Pressure, Temperature

Technical data
Downloads

Technical data

general technical data
Measurement inputs	RTD temperature probes, thermocouples, or standard signals
Outputs	Up to 2 relays
Voltage supply	AC 230 V, +10/-15 %, 48 to 63 Hz, AC 115 V, +10/-15 %, 48 to 63 Hz, DC 12 to 24 V, +15/-15 %
Format	76 × 36 × 62 mm
Approval	cULus
Special features	Intuitive startup and operation, integrated timer function, service and operating hours counter, quick wiring through PUSH IN technology, cost-effective solution for individual display functions

general technical data

Measurement inputs

RTD temperature probes, thermocouples, or standard signals

Outputs

Up to 2 relays

Voltage supply

AC 230 V, +10/-15 %, 48 to 63 Hz, AC 115 V, +10/-15 %, 48 to 63 Hz, DC 12 to 24 V, +15/-15 %

Format

76 × 36 × 62 mm

Approval

cULus

Special features

Intuitive startup and operation, integrated timer function, service and operating hours counter, quick wiring through PUSH IN technology, cost-effective solution for individual display functions
