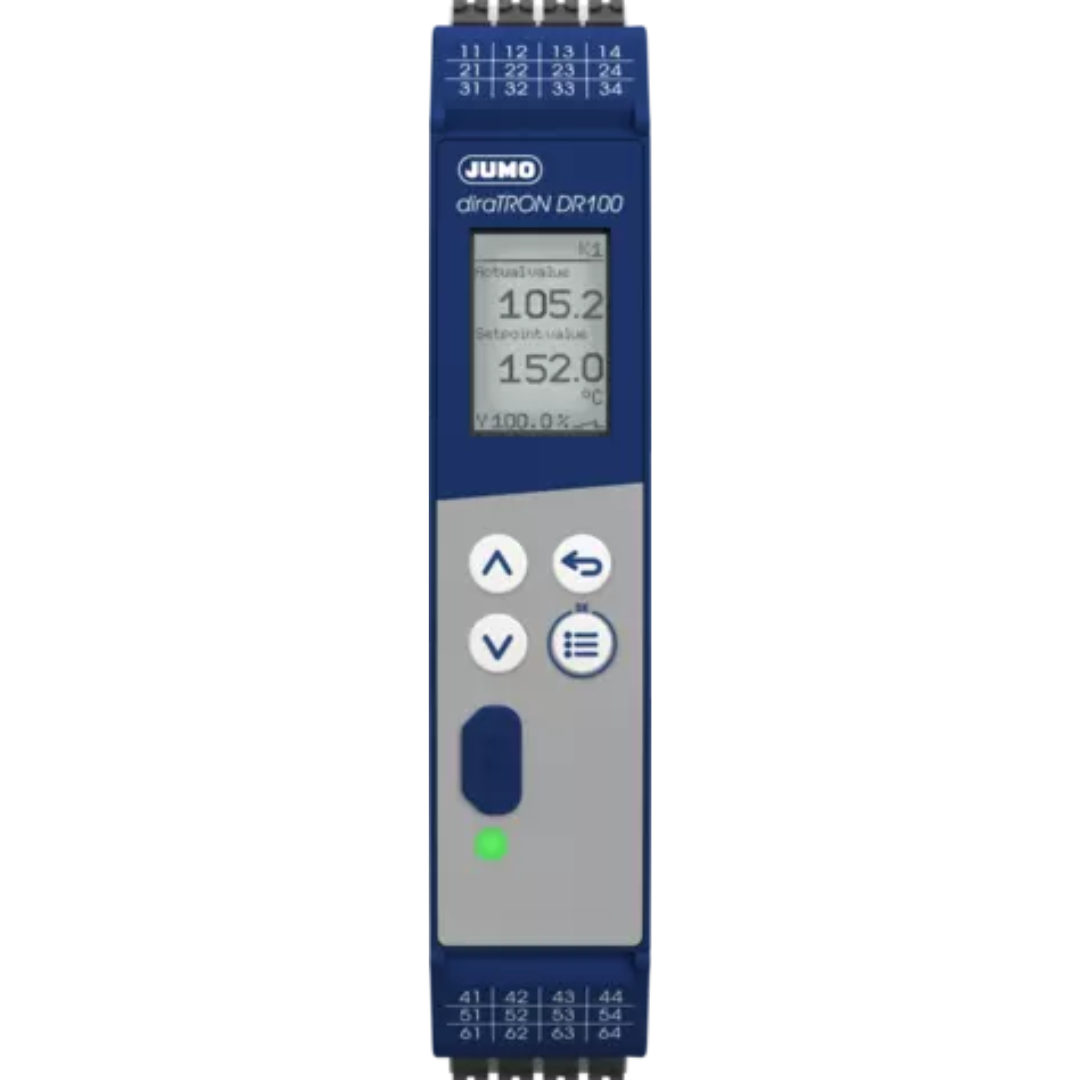

JUMO diraTRON DR100
The universal DIN rail controller enables precise control of temperature, pressure, and many other measurands. The device can be adapted to different process requirements with configurable measurement inputs and control options as a two-point, three-point, modulating, or continuous controller. A plain text display ensures simple and clear operation which makes the JUMO diraTRON DR100 an important tool in process control.
Customer benefits at a glance
Universal control of a wide range of measurands thanks to configurable measurement inputs
Multifunctionality for a wide range of applications
High level of control quality
Smart startup thanks to autotuning
Clear display with plain text indication
Technical data
| general technical data | |
|---|---|
| Measurement inputs | Universal analog input for: (double) RTD temperature probes; resistance transmitters; resistance potentiometers; (double) thermocouples; current 0(4) to 20 mA; voltage 0(2) to 10 V; digital input; optional: 2nd digital input |
| Outputs | Digital output; relay (changeover contact); optional: 2nd relay (changeover contact); analog output |
| Display | 64 × 96 pixel dot matrix LCD display with background lighting and plain text display |
| Interfaces/protocols | USB (setup); optional: RS485 (Modbus) |
| Controller type | Two-state controller; three-state controller; modulating controller; continuous controller |
| Mounting | DIN-rail mounting |
| Voltage supply | DC 24 V, -20/+25 %; AC 110 to 240 V -15/+10 %, 48 to 63 Hz |
| Special features | Autotuning; ramp function; limit value monitoring function; temperature difference measurement; continuous controller with analog output (optional); connection to up to 10 devices via backplane bus for DC voltage supply and RS485 interface (optional) |
| Approvals | cULus |
