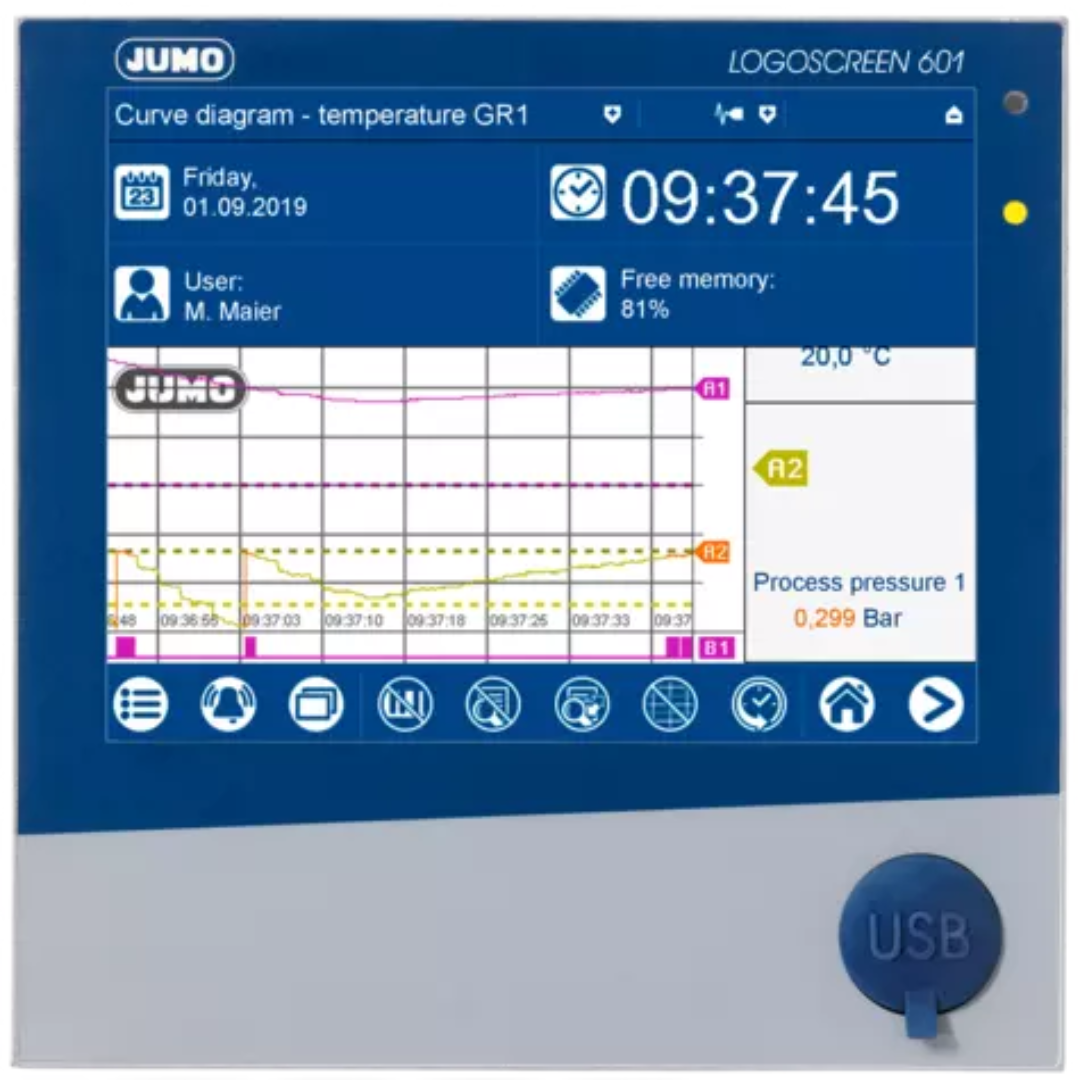

JUMO LOGOSCREEN 601

The paperless recorder visualizes plants and process states. It also records process data in a tamper-proof manner. The device can be adapted to different requirements (such as PROFINET with 24 analog and 24 digital inputs and outputs each) through various connection configurations.

Categories: Flow, Level, Paperless recorders, Paperless recorders, Paperless recorders, Temperature

Technical data
Downloads

Technical data

general technical data
Display	5.7″ TFT color screen (640 × 480 pixels, 16-bit color depth) with resistive touchscreen
Inputs and outputs	Up to 6 analog inputs; up to 6 digital inputs; up to 2 analog outputs; up to 12 digital inputs/outputs, including up to 2 high-speed counting inputs (up to 12.5 kHz); 1 relay output (changeover contact)
Inputs via interface	24 external analog inputs and 24 external digital inputs as well as 14 external texts (10 batch texts, 4 event texts)
Internal channels (standard)	6 counters/integrators; 4 group reports (min./max./average)
Internal channels (optional)	6 math channels, 6 logic channels, up to 2 high-speed counter channels, ST code with 40 analog input and output variables each, 40 digital input and output variables each, and 32 alarm output variables
Recording channels	24 analog signals, 24 digital signals, 48 alarm signals, 6x counter channels (internal); up to 4 measuring groups
Memory	1 GB; variable cycle time as of 125 ms; data export via external storage media (e.g. USB flash drive)
Interfaces (standard)	RS232/485 for barcode scanner or Modbus master/slave; Ethernet (Modbus TCP master/slave); USB (host/device)
Interfaces (optional)	PROFINET IO device, NMEA 0183
Housing	Front frame made of die-cast zinc with decorative foil, flush-mounted housing according to DIN IEC 61554 made of zinc-plated steel sheet
Approvals	cULus; FDA compliant according to 21 CFR Part 11; AMS2750 and CQI-9 compliant
Special features	Up to 6 customer-specific process images; lifecycle data management; max. 4 measuring groups with 6 analog and 6 digital channels; up to 2 auxiliary/boundary lines per measuring channel in horizontal or vertical diagram; HTML-based, browser independent web server; display of process values via app on smartphone and tablet; intuitive icon-based operating and visualization concept; up to 2 high-speed counting inputs (12.5 kHz), e. g. e. g. for flow measurement; individual adaptation to own applications as well as batch control via ST code; 1 batch report; automatic batch, trend or report printout possible; own web server design possible; installation depth < 119 mm; connection of GPS sensors (NMEA 0183 format)
Application areas	Process visualization and paperless recording of analog and digital process data in various industries such as industrial furnace construction, pharmaceutical, food, and water/wastewater.
Protection type	At the front IP65, at the rear IP20
Voltage supply	AC 110 to 240 V +10/-15 %, 48 to 63 Hz or AC/DC 20 to 30 V, 48 to 63 Hz

general technical data

Display

5.7″ TFT color screen (640 × 480 pixels, 16-bit color depth) with resistive touchscreen

Inputs and outputs

Up to 6 analog inputs; up to 6 digital inputs; up to 2 analog outputs; up to 12 digital inputs/outputs, including up to 2 high-speed counting inputs (up to 12.5 kHz); 1 relay output (changeover contact)

Inputs via interface

24 external analog inputs and 24 external digital inputs as well as 14 external texts (10 batch texts, 4 event texts)

Internal channels (standard)

6 counters/integrators; 4 group reports (min./max./average)

Internal channels (optional)

6 math channels, 6 logic channels, up to 2 high-speed counter channels, ST code with 40 analog input and output variables each, 40 digital input and output variables each, and 32 alarm output variables

Recording channels

24 analog signals, 24 digital signals, 48 alarm signals, 6x counter channels (internal); up to 4 measuring groups

Memory

1 GB; variable cycle time as of 125 ms; data export via external storage media (e.g. USB flash drive)

Interfaces (standard)

RS232/485 for barcode scanner or Modbus master/slave; Ethernet (Modbus TCP master/slave); USB (host/device)

Interfaces (optional)

PROFINET IO device, NMEA 0183

Housing

Front frame made of die-cast zinc with decorative foil, flush-mounted housing according to DIN IEC 61554 made of zinc-plated steel sheet

Approvals

cULus; FDA compliant according to 21 CFR Part 11; AMS2750 and CQI-9 compliant

Special features

Up to 6 customer-specific process images; lifecycle data management; max. 4 measuring groups with 6 analog and 6 digital channels; up to 2 auxiliary/boundary lines per measuring channel in horizontal or vertical diagram; HTML-based, browser independent web server; display of process values via app on smartphone and tablet; intuitive icon-based operating and visualization concept; up to 2 high-speed counting inputs (12.5 kHz), e. g. e. g. for flow measurement; individual adaptation to own applications as well as batch control via ST code; 1 batch report; automatic batch, trend or report printout possible; own web server design possible; installation depth < 119 mm; connection of GPS sensors (NMEA 0183 format)

Application areas

Process visualization and paperless recording of analog and digital process data in various industries such as industrial furnace construction, pharmaceutical, food, and water/wastewater.

Protection type

At the front IP65, at the rear IP20

Voltage supply

AC 110 to 240 V +10/-15 %, 48 to 63 Hz or AC/DC 20 to 30 V, 48 to 63 Hz
