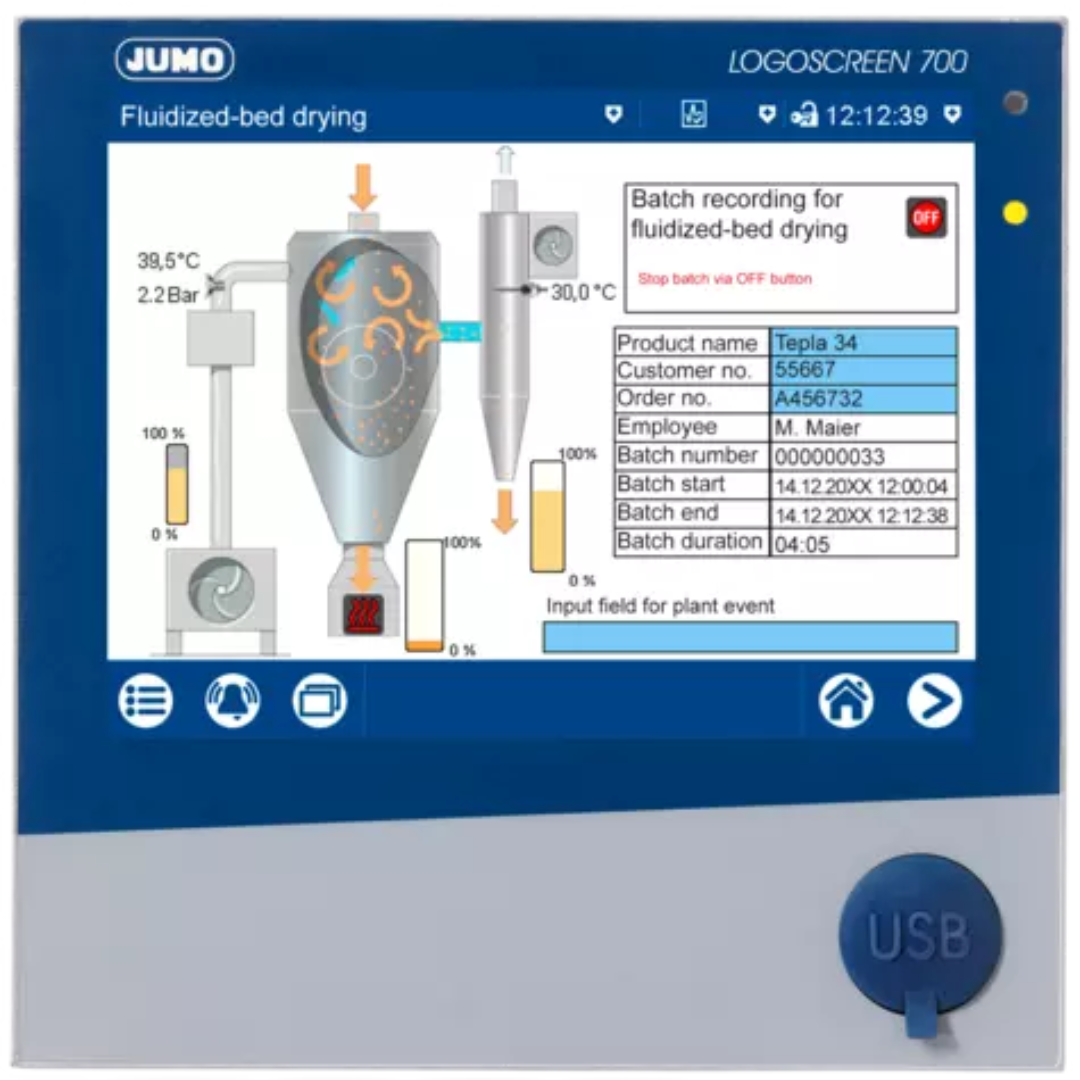

JUMO LOGOSCREEN 700

The JUMO LOGOSCREEN 700 paperless recorder is characterized by an intuitive, icon-based operation and visualization concept that makes operation easy. It is available in multiple versions for process data acquisition and can be adapted flexibly.

Categories: Flow, Level, Paperless recorders, Paperless recorders, Paperless recorders, Temperature

Technical data
Downloads

Technical data

general technical data
Display	5.7″ TFT color screen (640 × 480 pixels, 16-bit color depth) with resistive touchscreen
Inputs and outputs	Up to 18 measurement inputs (universal analog inputs); up to 3 analog outputs; up to 18 digital inputs; up to 24 individually switchable digital inputs/outputs, including up to 8 high-speed counting inputs (up to 12.5 kHz); up to 7 relay outputs (changeover contacts)
Inputs via interface	120 external analog inputs and 120 external digital inputs as well as 74 external texts (64 batch texts, 10 event texts)
Internal channels (standard)	30 counters/integrators, 10 group reports (min./max./average)
Internal channels (optional)	20 math channels, 20 logic channels, up to 8 high-speed counter channels, ST code with 40 input and 40 output variables each
Recording channels	60 analog signals, 60 digital signals, 120 alarm signals, 30 × counter channels (internal); up to 10 measuring groups
Memory	1 GB; variable cycle time as of 125 ms; data export via external storage media (e.g. USB flash drive)
Interfaces (standard)	RS232/485 for barcode scanner or Modbus master/slave; Ethernet (Modbus TCP master/slave); USB (host/device)
Interfaces (optional)	PROFINET IO device, NMEA 0183
Housing	Front frame made of die-cast zinc with decorative foil, flush-mounted housing according to DIN IEC 61554 made of zinc-plated steel sheet
Approvals	cULus, FDA compliant according to 21 CFR Part 11 (extra code 888), AMS2750/CQI-9 (extra code)
Special features	Up to 10 customer-specific process images; lifecycle data management; up to 2 auxiliary / limit lines per measuring channel in horizontal or vertical diagram; HTML-based, browser-independent web server; display of process values via app on smartphone and tablet; intuitive icon-based operating and visualization concept; SNTP time synchronization; up to 8 high-speed counting inputs (12.5kHz); up to 5 batch protocols; automatic batch, trend or report printout possible; up to 5/50 users; tamper detection with digital certificate (extra code 887), own application via structured text (ST code; extra code); own web server design possible; installation depth < 119 mm; connection of GPS sensors (NMEA 0183 format)
Application areas	Process visualization and paperless recording of analog and digital process data in various industries such as industrial furnace construction, pharmaceutical, food, and water/wastewater.
Protection type	At the front IP65, at the rear IP20
Voltage supply	AC 110 to 240 V +10/-15 %, 48 to 63 Hz or AC/DC 20 to 30 V, 48 to 63 Hz

general technical data

Display

5.7″ TFT color screen (640 × 480 pixels, 16-bit color depth) with resistive touchscreen

Inputs and outputs

Up to 18 measurement inputs (universal analog inputs); up to 3 analog outputs; up to 18 digital inputs; up to 24 individually switchable digital inputs/outputs, including up to 8 high-speed counting inputs (up to 12.5 kHz); up to 7 relay outputs (changeover contacts)

Inputs via interface

120 external analog inputs and 120 external digital inputs as well as 74 external texts (64 batch texts, 10 event texts)

Internal channels (standard)

30 counters/integrators, 10 group reports (min./max./average)

Internal channels (optional)

20 math channels, 20 logic channels, up to 8 high-speed counter channels, ST code with 40 input and 40 output variables each

Recording channels

60 analog signals, 60 digital signals, 120 alarm signals, 30 × counter channels (internal); up to 10 measuring groups

Memory

1 GB; variable cycle time as of 125 ms; data export via external storage media (e.g. USB flash drive)

Interfaces (standard)

RS232/485 for barcode scanner or Modbus master/slave; Ethernet (Modbus TCP master/slave); USB (host/device)

Interfaces (optional)

PROFINET IO device, NMEA 0183

Housing

Front frame made of die-cast zinc with decorative foil, flush-mounted housing according to DIN IEC 61554 made of zinc-plated steel sheet

Approvals

cULus, FDA compliant according to 21 CFR Part 11 (extra code 888), AMS2750/CQI-9 (extra code)

Special features

Up to 10 customer-specific process images; lifecycle data management; up to 2 auxiliary / limit lines per measuring channel in horizontal or vertical diagram; HTML-based, browser-independent web server; display of process values via app on smartphone and tablet; intuitive icon-based operating and visualization concept; SNTP time synchronization; up to 8 high-speed counting inputs (12.5kHz); up to 5 batch protocols; automatic batch, trend or report printout possible; up to 5/50 users; tamper detection with digital certificate (extra code 887), own application via structured text (ST code; extra code); own web server design possible; installation depth < 119 mm; connection of GPS sensors (NMEA 0183 format)

Application areas

Process visualization and paperless recording of analog and digital process data in various industries such as industrial furnace construction, pharmaceutical, food, and water/wastewater.

Protection type

At the front IP65, at the rear IP20

Voltage supply

AC 110 to 240 V +10/-15 %, 48 to 63 Hz or AC/DC 20 to 30 V, 48 to 63 Hz
