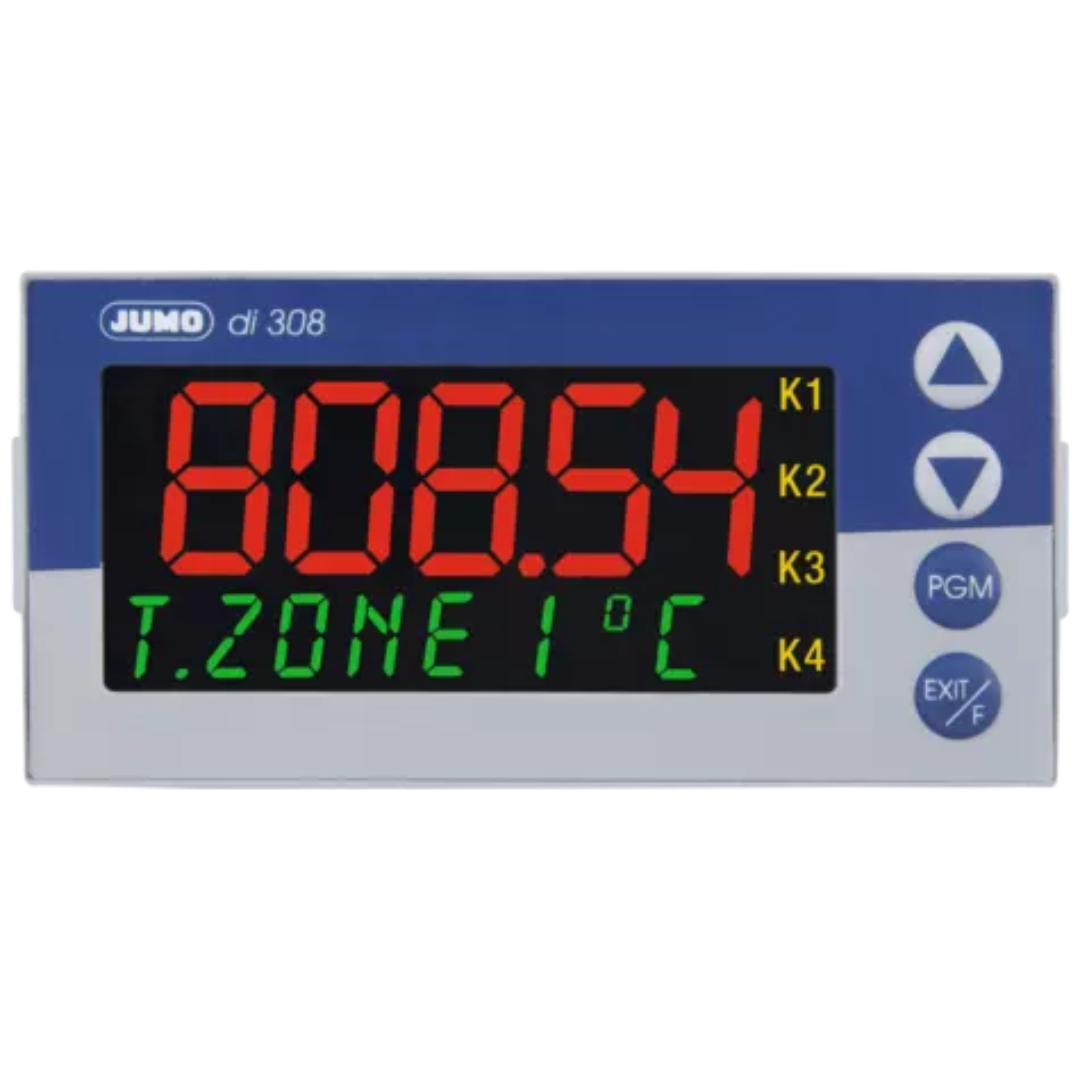

JUMO di 308
The JUMO di 308 indicating device displays temperatures in °C or °F and standard signals in “plain text”. The basic device is already equipped with 1 analog input, 2 binary inputs, 2 relay outputs, 2 logic outputs, and a voltage supply for two-wire transmitters.
Technical data
| general technical data | |
|---|---|
| Display | Five-figure LCD display (two-line, figure height 18/7 mm), text display as ticker with color change |
| Inputs | Up to 2 channels with multifunction input: RTD temperature probe, thermocouple, standard signal, 0 to 20 mA/0 to 10 V |
| Outputs | 2 relays (can be expanded by optional boards) |
| Special features | Can be optionally expanded with analog output, RS485, PROFIBUS, math, up to 4 limit values |
| Configuration | Via PC interface or keys on the front |
| Approval | cULus |
| Protection type | At the front IP65, at the rear IP20 |
| Voltage supply | AC/DC 20 to 30 V, AC 110 to 240 V |
| Ambient temperature | 0 to 55 °C |
| Installation | In the panel cut-out 96 × 48 mm |
Downloads
Data Sheet
Operating Manual
Software Free version
Certificate
Interface Description
Interface Description
Tendering texts
Brochure
Declaration of Conformity / White Paper
Declaration of Conformity / White Paper
Order details
