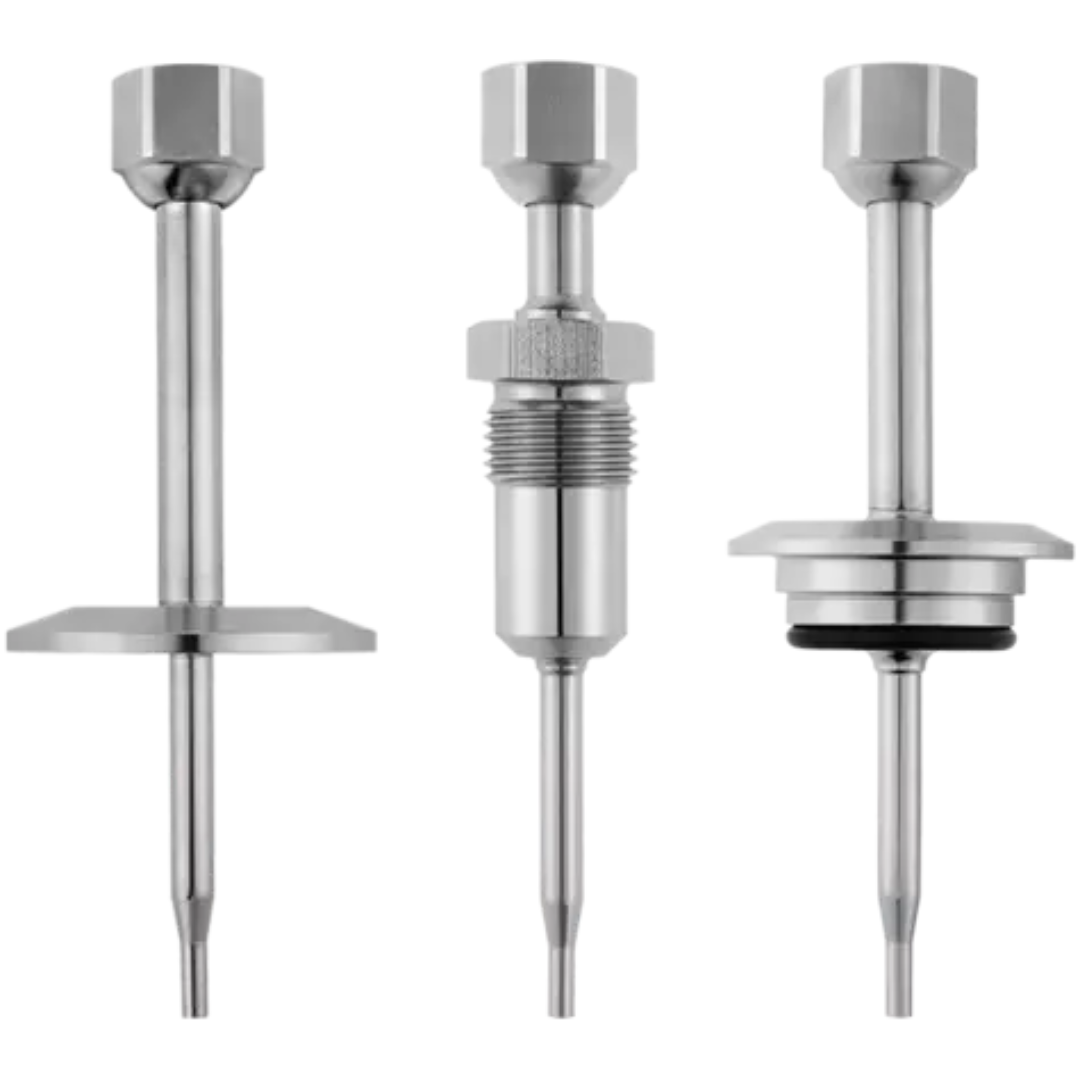

Hygienic thermowells
The hygienic thermowells have been designed for use with standard temperature probes in the food and pharmaceutical industry. All process connections widely used in the industry are available.
Technical data
| general technical data | |
|---|---|
| Temperature | -50 to +260 °C |
| Response times in water | t0.50 = approx. 3 s t0.90 = approx. 8 s |
| Surface | Standard Ra ≤ 0.8 μm, Ra ≤ 0.4 μm as optional extra |
| Features | Hygienic thermowell with short response time |
| Material | 1.4404 (316L) |
| Process connections | CIP-compliant conical seal, VARIVENT®, aseptic according to DIN 11864-1, ball welding sleeve, clamp, weld-in sleeve, dairy pipe fitting, NEUMO BioControl® |
| Insertion lengths | 50, 100, and 150 mm |
| Areas of application | Food industry, pharmaceutical industry, CIP and SIP plants, mechanical and plant engineering |
