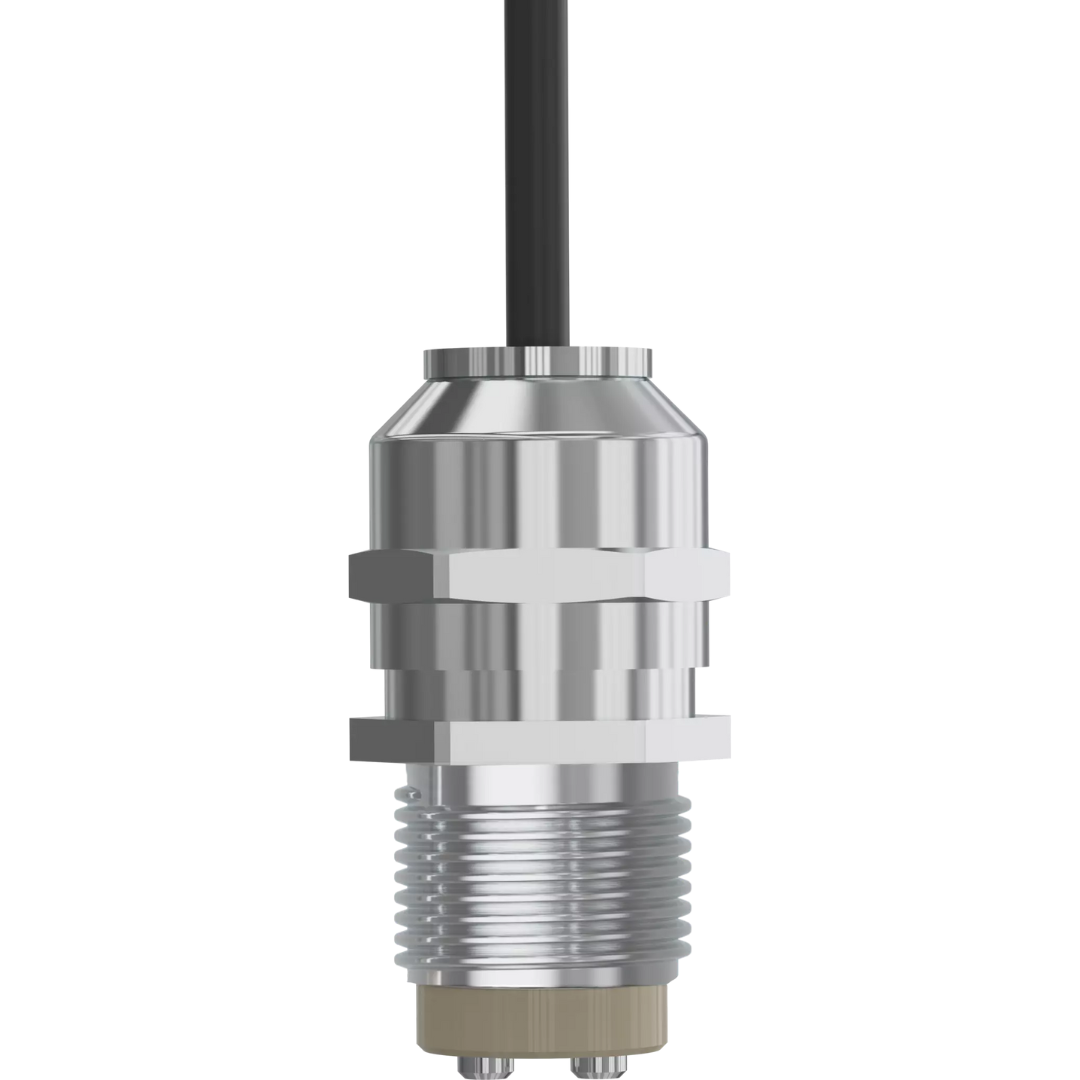

JUMO tecLine CR S01

The compact design type of the conductive two-electrode conductivity sensor enables space-saving installation. Due to its wide measuring range and resistance to cold, heat, and pressure, it is ideally suited for many applications in water treatment and monitoring.

Categories: Electrodes/sensors, Liquid analysis

Technical data
Downloads

Technical data

General technical data
Measuring range and cell constant	0.1 to 1000 µS/cm (K=0.1) or 1 to 5000 µS/cm (K=1.0)
Operating temperature	-40 to +100 °C
Maximum pressure	6 bar at 25 °C
Integrated temperature probe	Pt100 or Pt1000, class B
Electrical connection	Fixed cable 5 m (digiLine capable)
Cable fitting	Brass nickel-plated, stainless steel 1.4404 or PA6
Insertion length (depending on type)	22.5 to 34.5 mm
Materials in contact with the medium	Insulator: PEEK; electrode: stainless steel 1.4404
Process connection	Thread ½” NPT or M20 × 1.5 mm
Application areas	Refrigeration, air-conditioning and cooling plants; leakage detection; reverse osmosis plants; drinking and swimming pool water; lightly contaminated industrial rinsing and process water; general water technology
Special features	Uncomplicated and space-saving installation due to compact design type, ideal for pipes with small nominal widths; resistant to cold, heat, and pressure; corrosion-resistant materials, resistant to acid, basic, and chlorinated media; precise measurement within a wide measuring range; easy to clean
