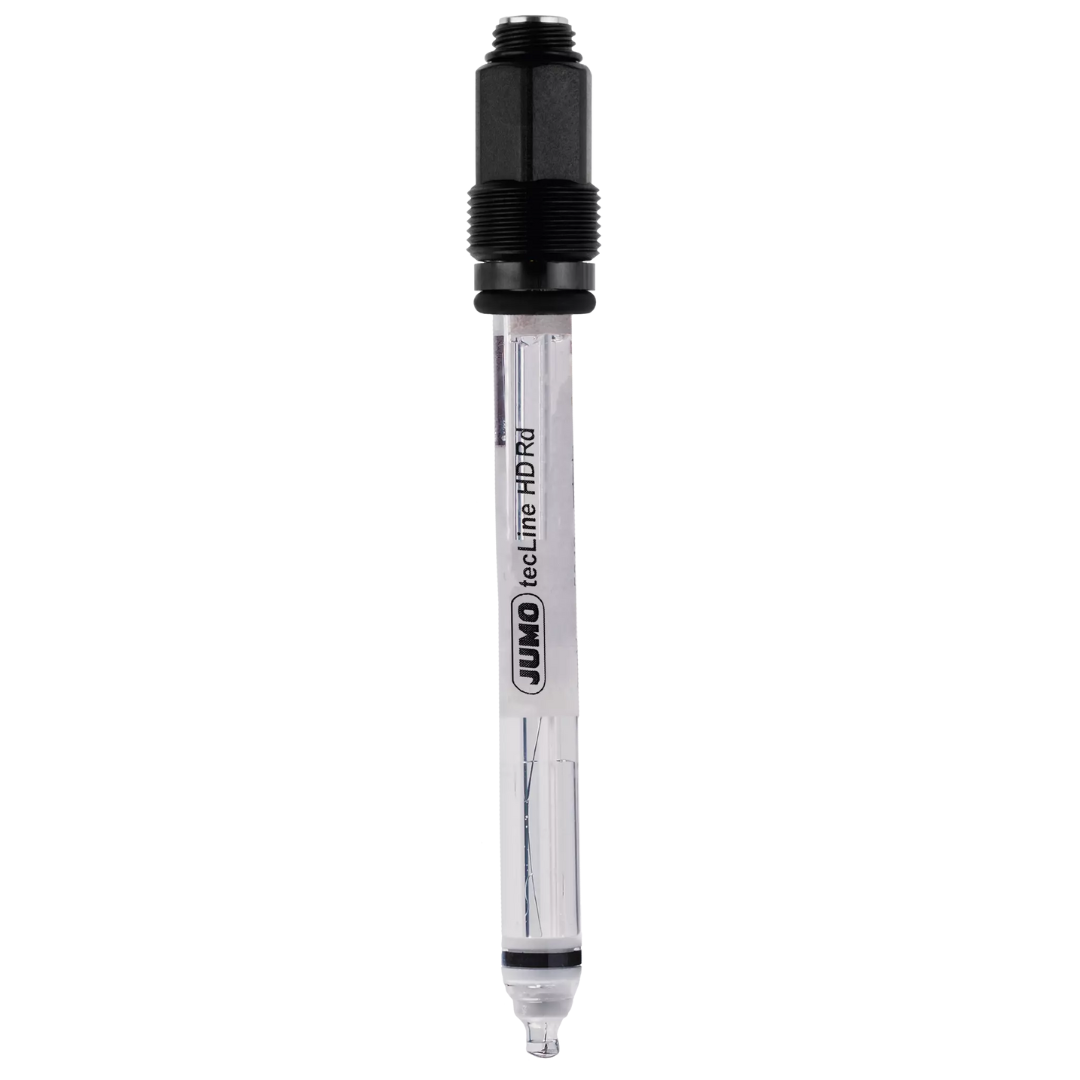

JUMO tecLine HD

The electrode acquires the redox potential of water and aqueous-based media. A robust industrial electrode for the most demanding applications with increased dirt and poison load as well as oil-containing media.

Categories: Electrodes/sensors, Liquid analysis

Technical data
Downloads

Technical data

General technical data
Active part	Platinum or gold tip (± 1500 mV)
Diaphragm	Ceramic diaphragm, glass fiber diaphragm, PTFE ring diaphragm, annular gap or hole diaphragm
Features	For industrial applications, also available in heavy-duty and hygienic version for demanding processes; integrated temperature sensor (optional for pH electrode)
Electrode head	Plug head; plug head with fixed cable; screw head Pg13.5; screw head Pg13.5 with fixed cable
Temperature range	-10 to +135 °C
Pressure range	0 to 13 bar
Areas of application	Process measurement, high temperature applications, suspensions, galvanic, coatings, wastewater, ultra-pure water, water, always contaminated media, hygienic and sterile applications, boiler feed water

General technical data

Active part

Platinum or gold tip (± 1500 mV)

Diaphragm

Ceramic diaphragm, glass fiber diaphragm, PTFE ring diaphragm, annular gap or hole diaphragm

Features

For industrial applications, also available in heavy-duty and hygienic version for demanding processes; integrated temperature sensor (optional for pH electrode)

Electrode head

Plug head; plug head with fixed cable; screw head Pg13.5; screw head Pg13.5 with fixed cable

Temperature range

-10 to +135 °C

Pressure range

0 to 13 bar

Areas of application

Process measurement, high temperature applications, suspensions, galvanic, coatings, wastewater, ultra-pure water, water, always contaminated media, hygienic and sterile applications, boiler feed water
