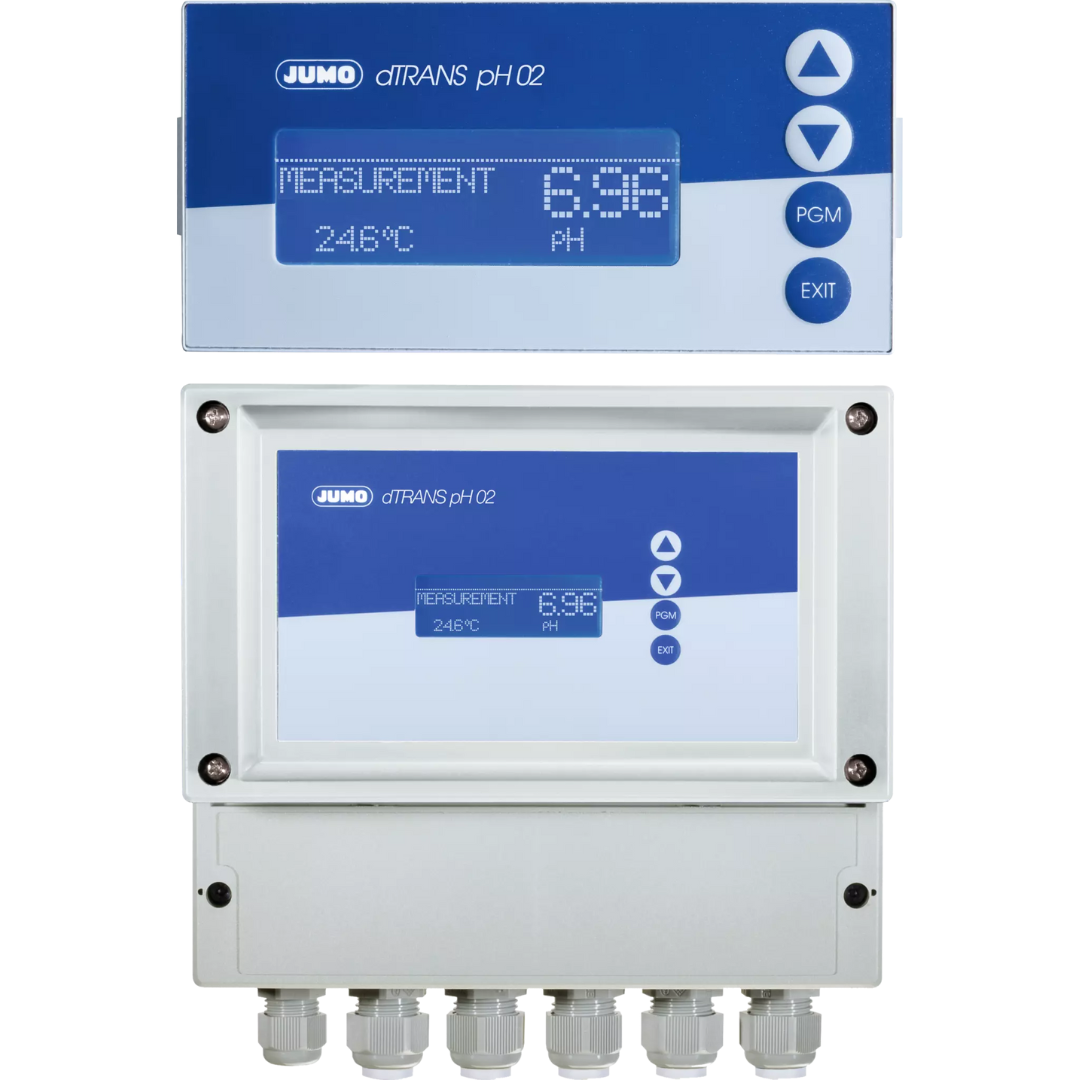

JUMO dTRANS pH 02

The product controls and records the pH and redox values, ammonia concentrations, temperatures, and flow rates. It can be used as a two-state, three-state, three-step, or as a continuous controller (e.g. for detoxifications).

Categories: Liquid analysis, Transmitters and controllers

Technical data
Downloads

Technical data

General technical data
Measurands	pH, redox, NH3, temperature, or flow
Mounting	Surface or control cabinet mounting
Inputs	1 main input, 1 analog input, 2 binary inputs, further inputs via option boards
Outputs	Up to 3 analog outputs; up to 7 relays
Special features	Math and logic module, wash timer for controlling of cleaning facilities, calibration logbook
Features	Ultra-compact shape; multilingual operation with plain text; modular design; variable measured value display; P, PI, PD, and PID control functions
Protection type	IP65
Areas of application	For universal use

General technical data

Measurands

pH, redox, NH3, temperature, or flow

Mounting

Surface or control cabinet mounting

Inputs

1 main input, 1 analog input, 2 binary inputs, further inputs via option boards

Outputs

Up to 3 analog outputs; up to 7 relays

Special features

Math and logic module, wash timer for controlling of cleaning facilities, calibration logbook

Features
