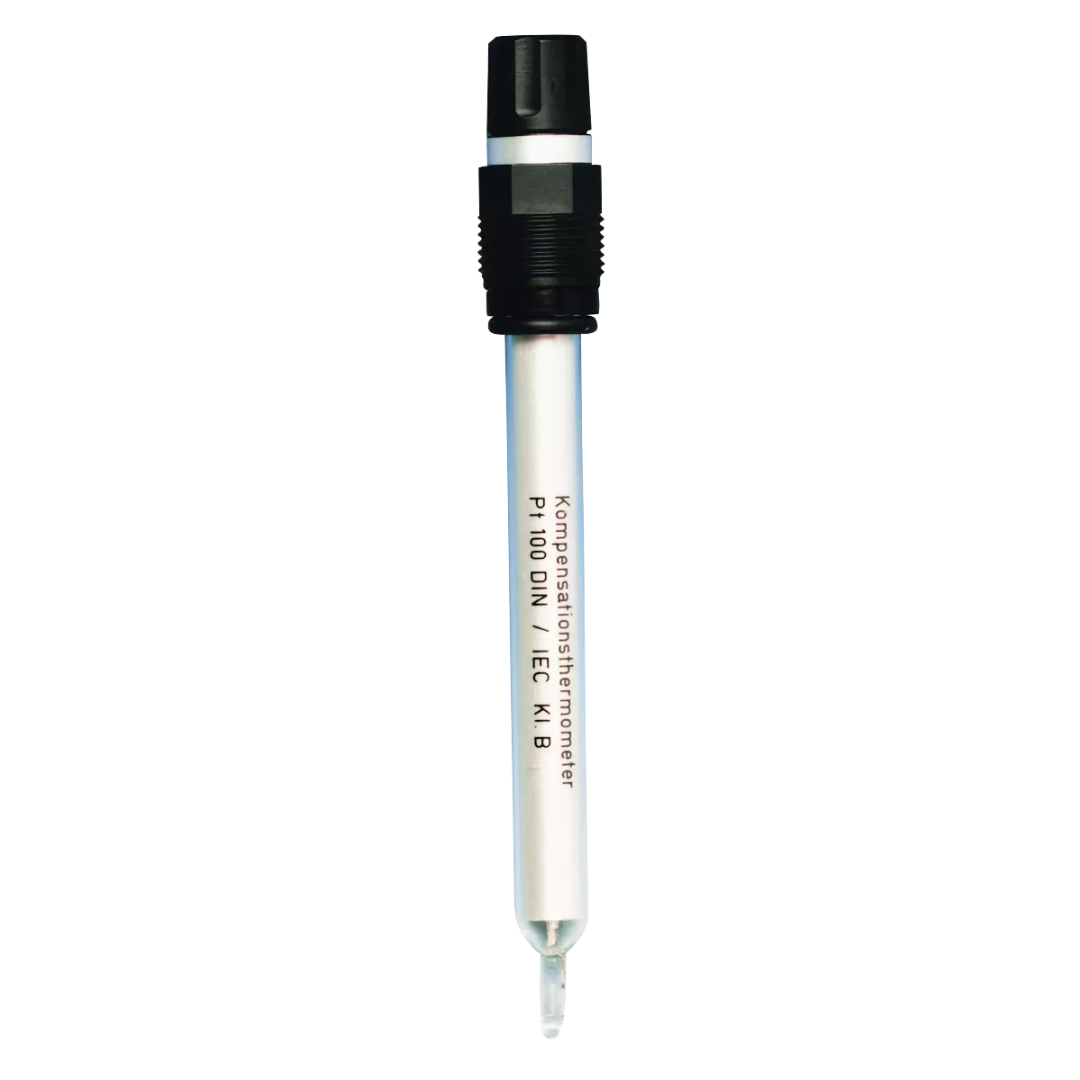

JUMO compensation thermometer

Compensation thermometers can be used to compensate for temperature-related measurement errors. They measure the temperature of the material to be measured and transmit the signal to the downstream transmitter. The measured value is then recalculated to the reference temperature of 25 °C.

Categories: Electrodes/sensors, Liquid analysis

Technical data
Downloads

Technical data

General technical data
Temperature range	-20 to +150 °C
Active part	Pt100 DIN/IEC class B
Pressure range	With plug head: pressureless operation; with screw head Pg13.5: 10 bar at 25 °C, 1 bar at 80 °C; with M12 screw head Pg13.5: 10 bar at 25 °C, 1 bar at 80 °C
Terminal head	Plug head without thread (PPO) or screw head Pg13.5 (PPO)
Process connection	Without or thread Pg13.5
Insertion length	120 mm (standard) other installation lengths upon request

General technical data

Temperature range

-20 to +150 °C

Active part

Pt100 DIN/IEC class B

Pressure range

With plug head: pressureless operation; with screw head Pg13.5: 10 bar at 25 °C, 1 bar at 80 °C; with M12 screw head Pg13.5: 10 bar at 25 °C, 1 bar at 80 °C

Terminal head

Plug head without thread (PPO) or screw head Pg13.5 (PPO)

Process connection

Without or thread Pg13.5

Insertion length

120 mm (standard) other installation lengths upon request
