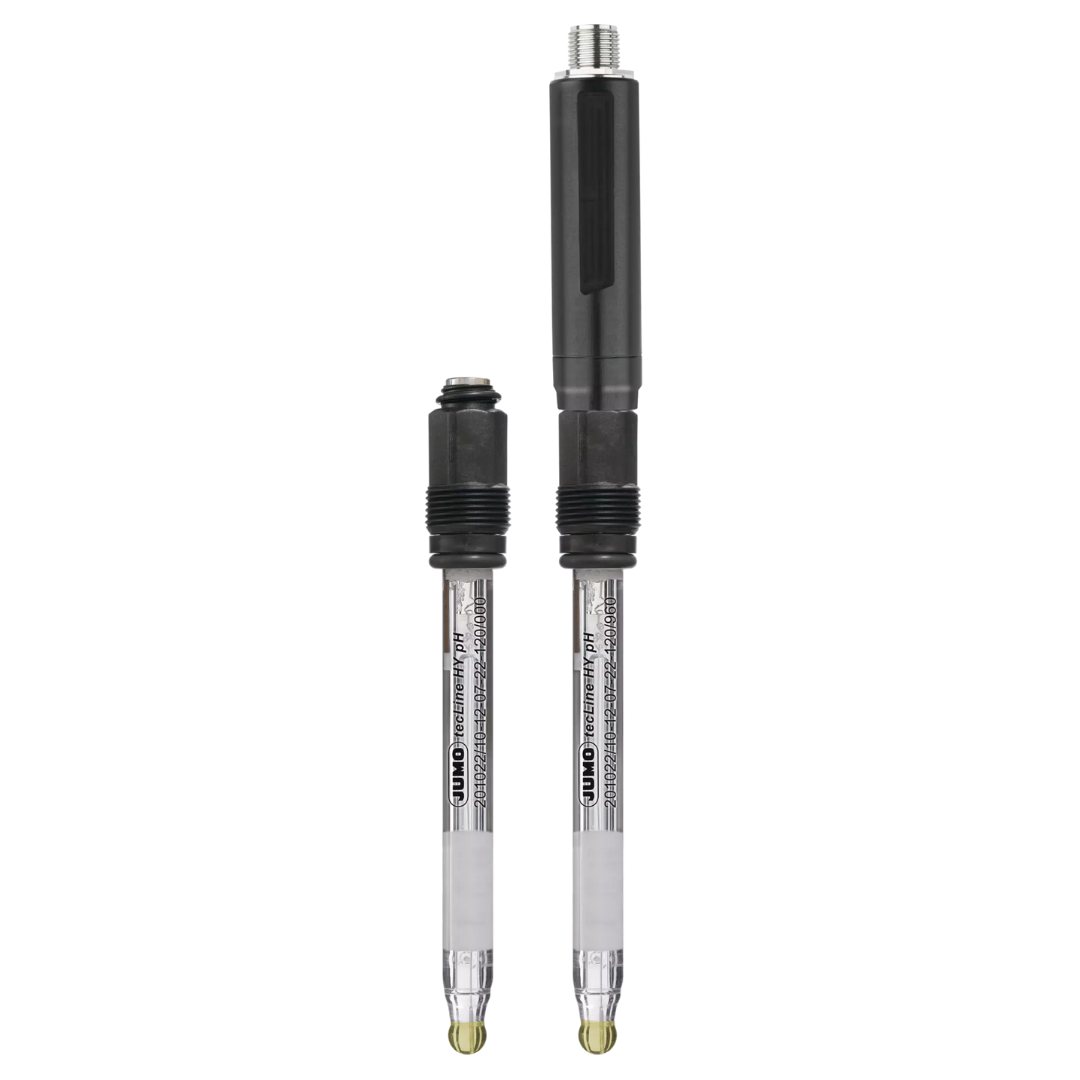

JUMO tecLine HY

The product acquires the pH value of water and aqueous-based media. It consists of high-quality materials for the most demanding applications and is equipped with a zirconium dioxide ceramic diaphragm with optimized properties with regard to KCl throughput and protection of the internal electrolyte.

Categories: Electrodes/sensors, Liquid analysis

Technical data
Downloads

Technical data

General technical data
Diaphragm	Zirconium ceramic diaphragm
Active part	High-temperature (HT) glass, suitable for high-alkaline
Temperature range	0 to 135 °C
Pressure range	Up to 6 bar
Temperature sensor	Pt1000 (class A)
Electrode head	N-screw head (S8), Pg13.5 thread VarioPin (VP) plug head, Pg13.5 thread
Special feature	Available with reusable JUMO digiLine electronic components (type 202705)
Insertion length	120 or 225 mm
Features	For industrial applications; also available in heavy-duty and hygienic version for demanding processes; integrated temperature sensor (optional for pH electrode)
Areas of application	Hygienic applications, sterilization and fermentation processes in the food and pharmaceutical industry
