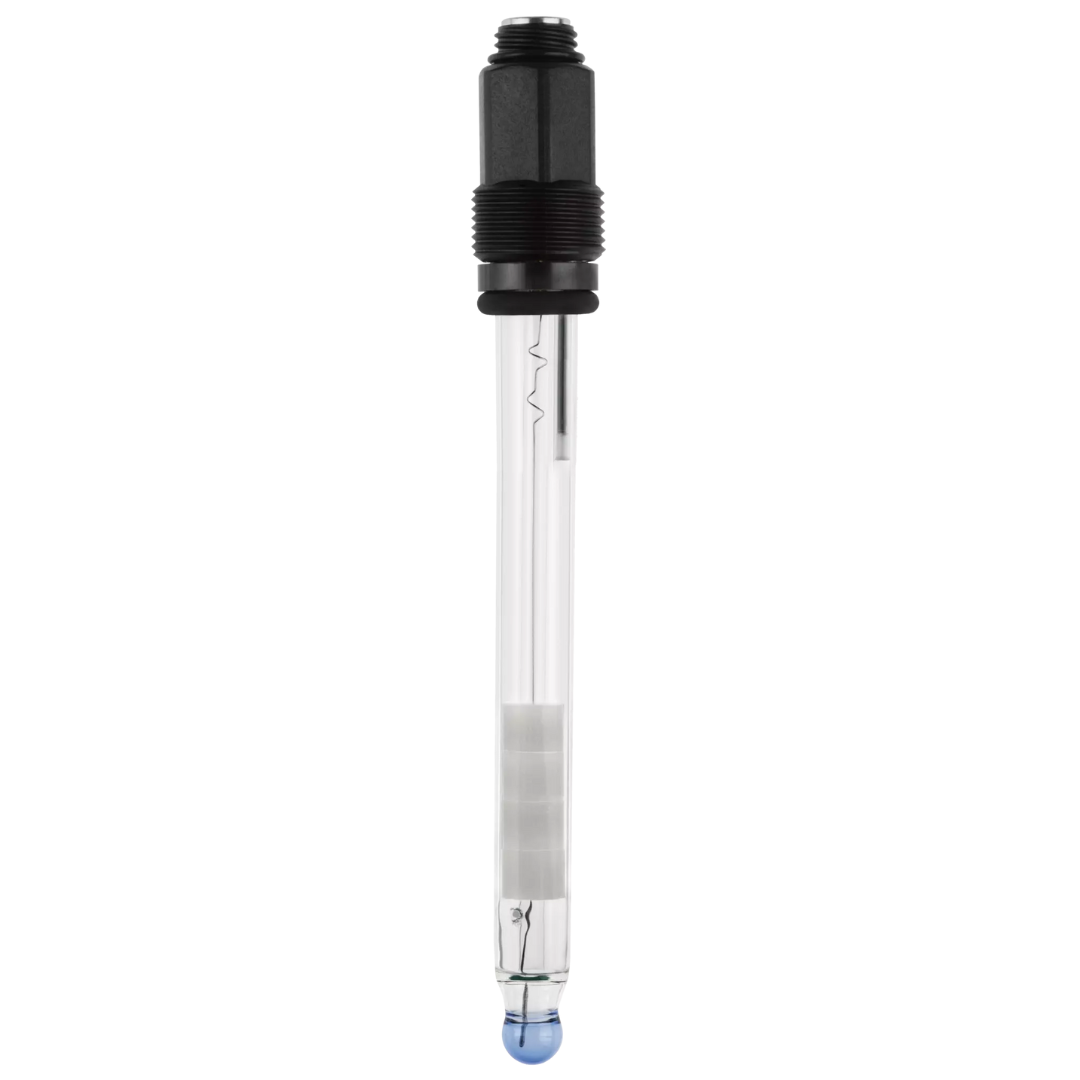

JUMO tecLine pH

The product acquires the pH value of water and aqueous-based media. It is applied in various applications in water and process measurement technology.

Categories: Electrodes/sensors, Liquid analysis

Technical data
Downloads

Technical data

General technical data
Active part	UW glass (water and wastewater engineering); HA glass (for strong alkaline media); HT glass (at temperatures above 80 °C); DS glass (bio, pharmaceutical, and food technology, sterilization processes), C glass (fluoridated (hydrofluoric) media)
Diaphragm	Ceramic, glass fiber, PTFE ring, annular gap, or pinhole diaphragm
Temperature range	-5 to +135 °C
Pressure range	Up to 10 bar (at 50 °C)
Electrode head	VP plug head PG 13.5; screw head PG 13.5
Features	For industrial applications, high level of mechanical robustness, with plastic shaft, integrated temperature sensor
Area of application	Industrial and municipal water and wastewater technology, measurements in suspensions and paints/lacquers, measurements in low ion fluids, high-alkaline/high-temperature/sterilization processes, fluoridated media, and low temperature applications

General technical data

Active part

UW glass (water and wastewater engineering); HA glass (for strong alkaline media); HT glass (at temperatures above 80 °C); DS glass (bio, pharmaceutical, and food technology, sterilization processes), C glass (fluoridated (hydrofluoric) media)

Diaphragm

Ceramic, glass fiber, PTFE ring, annular gap, or pinhole diaphragm

Temperature range

-5 to +135 °C

Pressure range

Up to 10 bar (at 50 °C)

Electrode head

VP plug head PG 13.5; screw head PG 13.5

Features

For industrial applications, high level of mechanical robustness, with plastic shaft, integrated temperature sensor

Area of application

Industrial and municipal water and wastewater technology, measurements in suspensions and paints/lacquers, measurements in low ion fluids, high-alkaline/high-temperature/sterilization processes, fluoridated media, and low temperature applications
