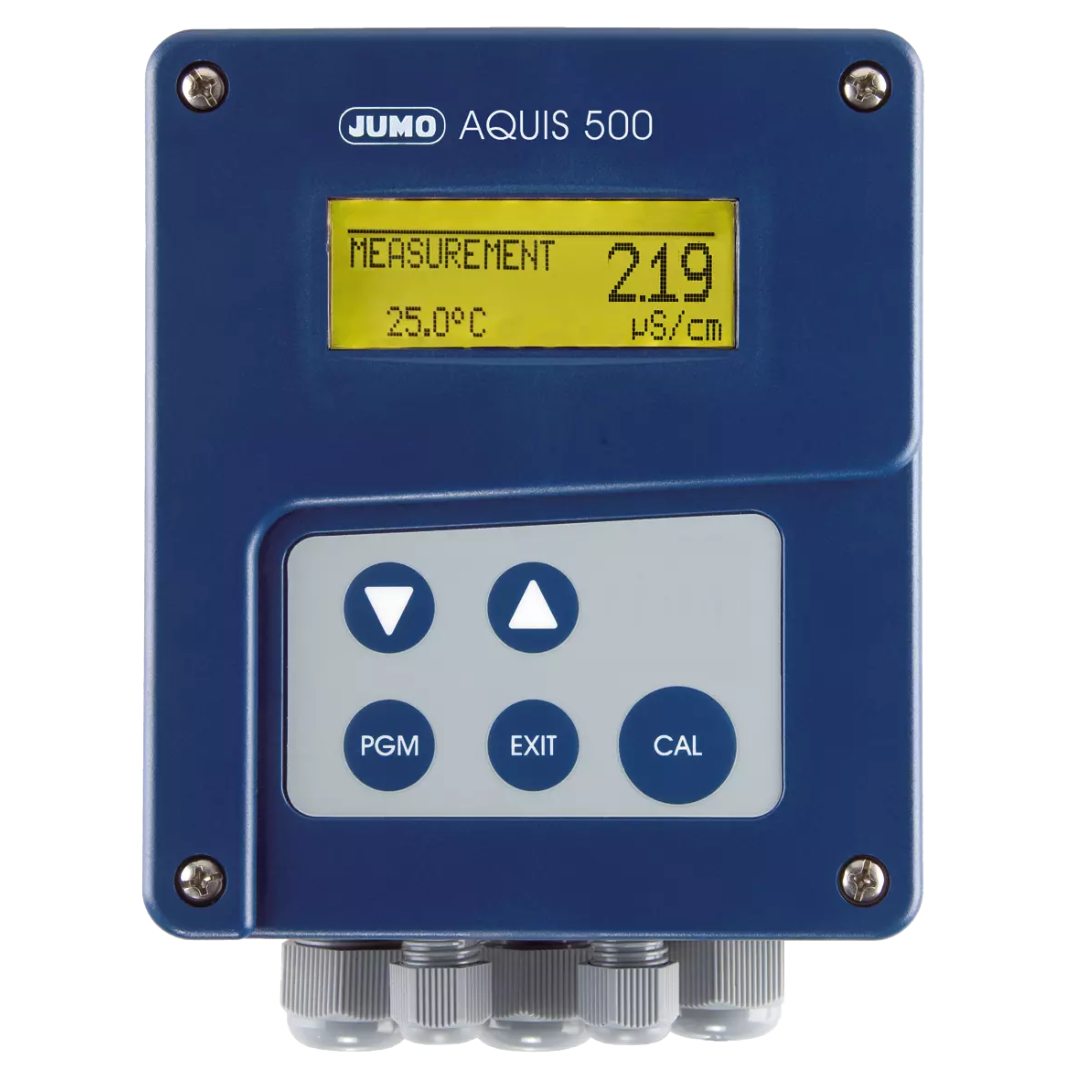

JUMO AQUIS 500 AS

The product controls sensors that output a standard signal (e.g. chlorine). The graphic display enables the display of the standard signals as digits or a bar graph. 2 relay changeover contacts implement switching and alarm functions as well as control tasks with P, PI, PD, and PID behavior.

Categories: Controller, Controllers, Flow, Level, Liquid analysis, Transmitters and controllers

Technical data
Downloads

Technical data

General technical data
Measurands	Free chlorine, hydrogen peroxide, peracetic acid, chlorine dioxide, ozone in connection with sensors according to data sheet 202630 pH value or redox potential with two-wire transmitter according to data sheet 202701 Filling levels (hydrostatic) with two-wire transmitter according to data sheet 401015, 402090, 404391, and 404392 Flow in connection with the respective transmitters 2 temperature measuring points Sensors and transmitters with standard signal 0/4 to 20 mA or 0 to 10 V
Mounting	Surface or control cabinet mounting
Outputs	Up to 2 analog outputs, up to 2 relays
Features	Display: mg/l, ppm, pH, mV, μS/cm, etc.; optional display visualization
Protection type	IP67
Areas of application	For universal use

General technical data

Measurands

Free chlorine, hydrogen peroxide, peracetic acid, chlorine dioxide, ozone in connection with sensors according to data sheet 202630 pH value or redox potential with two-wire transmitter according to data sheet 202701 Filling levels (hydrostatic) with two-wire transmitter according to data sheet 401015, 402090, 404391, and 404392 Flow in connection with the respective transmitters 2 temperature measuring points Sensors and transmitters with standard signal 0/4 to 20 mA or 0 to 10 V

Mounting

Surface or control cabinet mounting

Outputs

Up to 2 analog outputs, up to 2 relays

Features

Display: mg/l, ppm, pH, mV, μS/cm, etc.; optional display visualization

Protection type

IP67

Areas of application

For universal use
