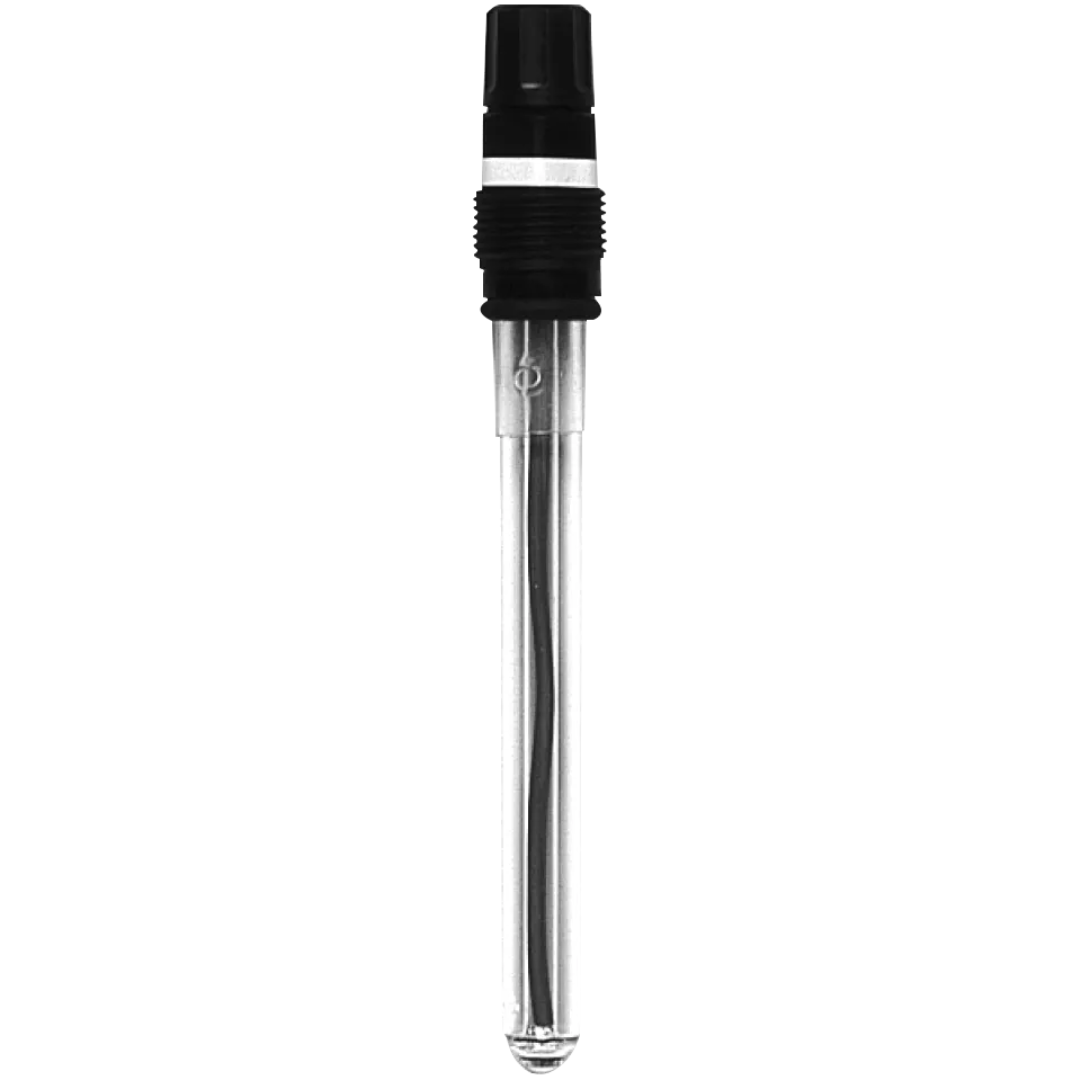

Redox single or double electrodes
In connection with a reference electrode the product detects the redox potential of aqueous media. Metal double electrodes are used to measure the end point in amperometric titration.
Technical data
| General technical data | |
|---|---|
| Redox measuring range | Pt tip/Pt pin ±2000 mV, Au tip/Au pin ±2000 mV, Sb pin |
| Temperature range | Pt tip 0 to 135 °C, Au tip 0 to 135 °C, Sb pin |
| Pressure range | With plug head: pressureless operation; with screw head Pg 13.5: 6 bar/25 °C, 1 bar/80 °C |
| Process connection | Plug head without thread or screw head Pg13.5 |
| Insertion length | 120 mm (standard) other installation lengths upon request |
