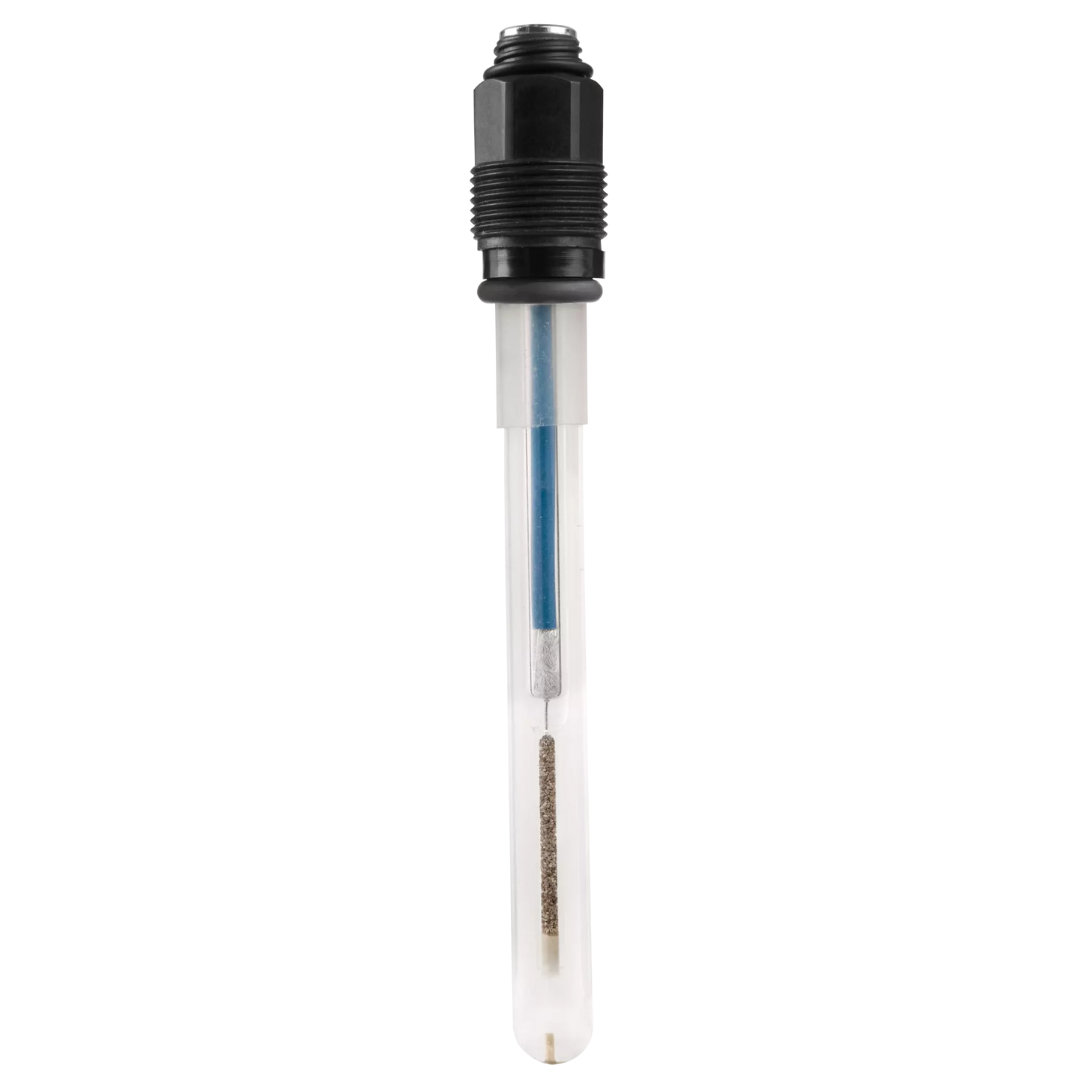

JUMO reference electrodes/diaphragm tube

Reference electrodes provide a constant potential for potentiometric measurements. They are used to record pH or redox values.

Technical data

General technical data
Temperature range	Gel filling 0 to 80 °C; KCl filling 0 to 135 °C
Pressure range	With plug head pressureless operation; with screw head Pg13.5 10 bar at 25 °C, 1 bar at 80 °C
Terminal head	Plug head or screw head Pg13.5
Process connection	Thread Pg13.5
Insertion length	120 mm (standard) other installation lengths upon request

General technical data

Temperature range

Gel filling 0 to 80 °C; KCl filling 0 to 135 °C

Pressure range

With plug head pressureless operation; with screw head Pg13.5 10 bar at 25 °C, 1 bar at 80 °C

Terminal head

Plug head or screw head Pg13.5

Process connection

Thread Pg13.5

Insertion length

120 mm (standard) other installation lengths upon request
