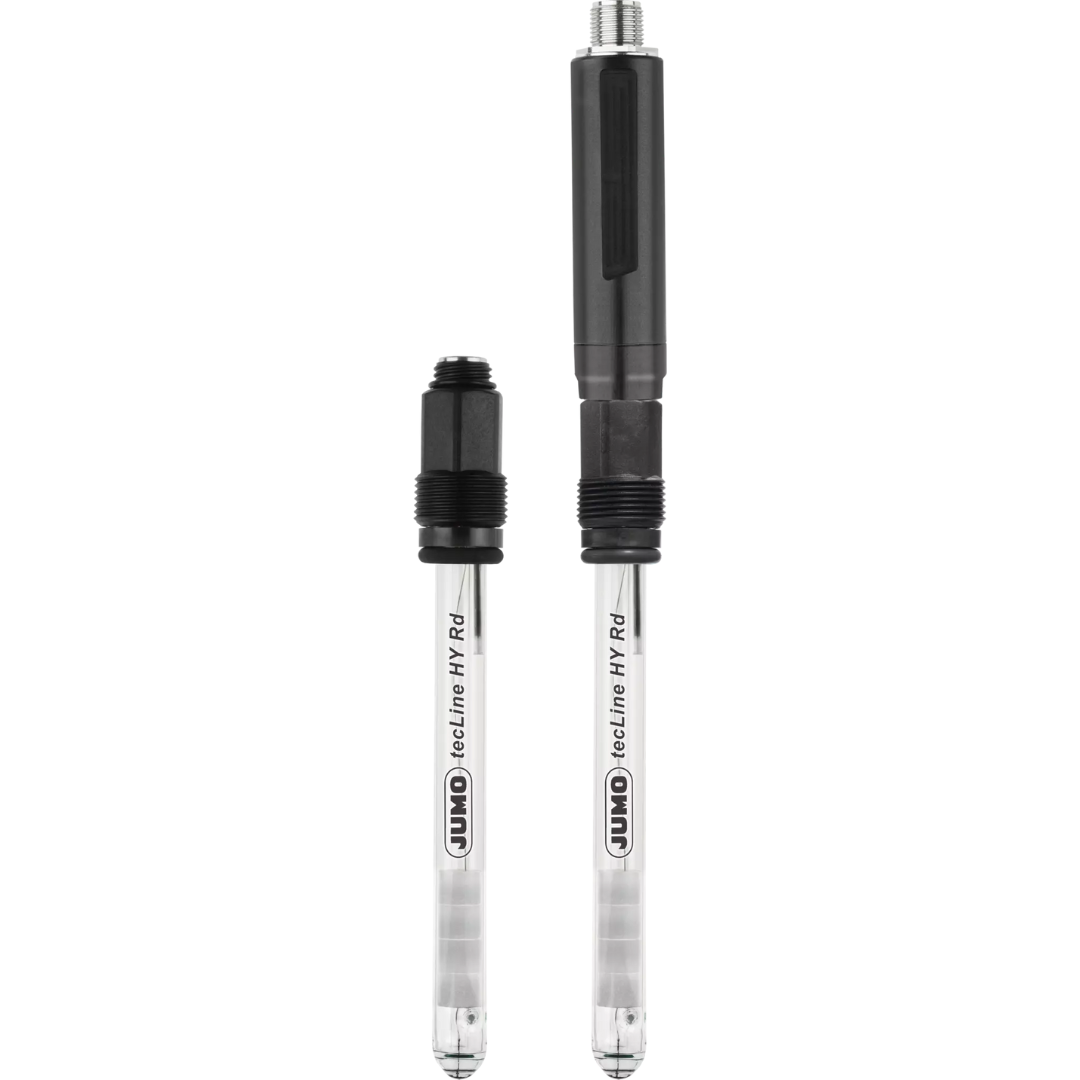

JUMO tecLine HY

The electrode acquires the redox potential of water and aqueous-based media. This robust electrode is suitable for demanding and hygienic applications in the process industry. JUMO tecLine HY redox electrodes have a high-quality zirconium dioxide diaphragm.

Categories: Electrodes/sensors, Liquid analysis

Technical data
Downloads

Technical data

General technical data
Active part	Platinum or gold tip (± 1500 mV)
Diaphragm	Ceramic diaphragm, glass fiber diaphragm, PTFE ring diaphragm, annular gap or hole diaphragm
Features	For industrial applications, also available in heavy-duty and hygienic version for demanding processes; integrated temperature sensor (optional for pH electrode)
Electrode head	Plug head; plug head with fixed cable; screw head Pg13.5; screw head Pg13.5 with fixed cable
Pressure range	0 to 6 bar
Temperature range	0 to 135 °C
Areas of application	Processes with higher continuous temperatures up to 135 °C and pressures up to 6 bar, hygienic applications, sterilization and fermentation processes in the food and pharmaceutical industry, universal use in unpolluted and slightly polluted aqueous media; drinking, salt, and seawater applications
