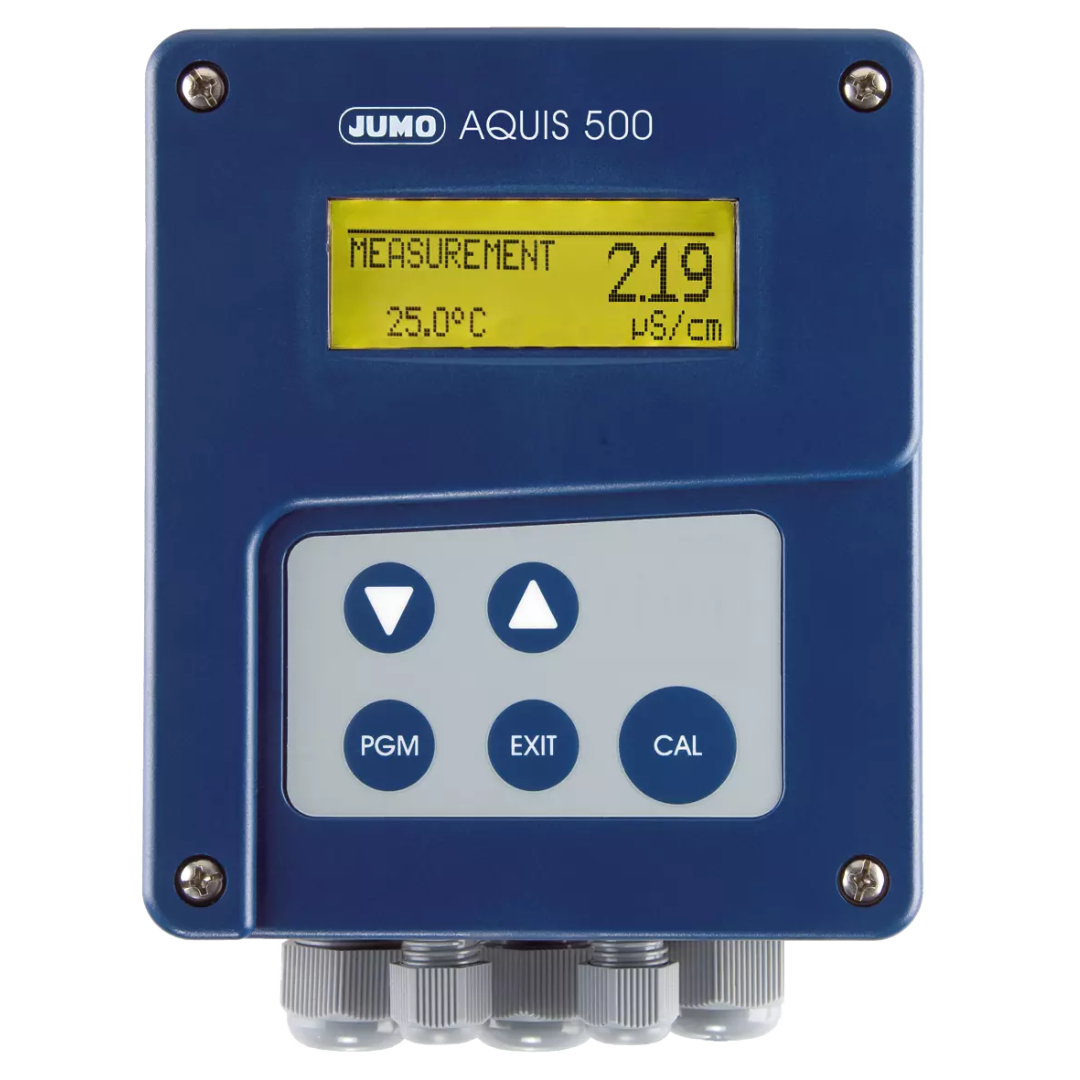

JUMO AQUIS 500 CR

The product controls the electrolytic conductivity, the specific electrical resistivity, or the TDS value. Conductive two-electrode measuring cells as well as four-electrode measuring cells can be connected to the device.

Categories: Liquid analysis, Transmitters and controllers

Technical data
Downloads

Technical data

General technical data
Measurands	Conductivity, temperature, resistance, TDS value
Mounting	Surface or control cabinet mounting
Outputs	2 analog outputs, 2 relays with changeover contact
Protection type	IP67
Features	Multilingual plain text operation; graphic display with backlight; P, PI, PD, and PID control functions; USP switching function according to USP<645>
Areas of application	For universal use

General technical data

Measurands

Conductivity, temperature, resistance, TDS value

Mounting

Surface or control cabinet mounting

Outputs

2 analog outputs, 2 relays with changeover contact

Protection type

IP67

Features

Multilingual plain text operation; graphic display with backlight; P, PI, PD, and PID control functions; USP switching function according to USP<645>

Areas of application
