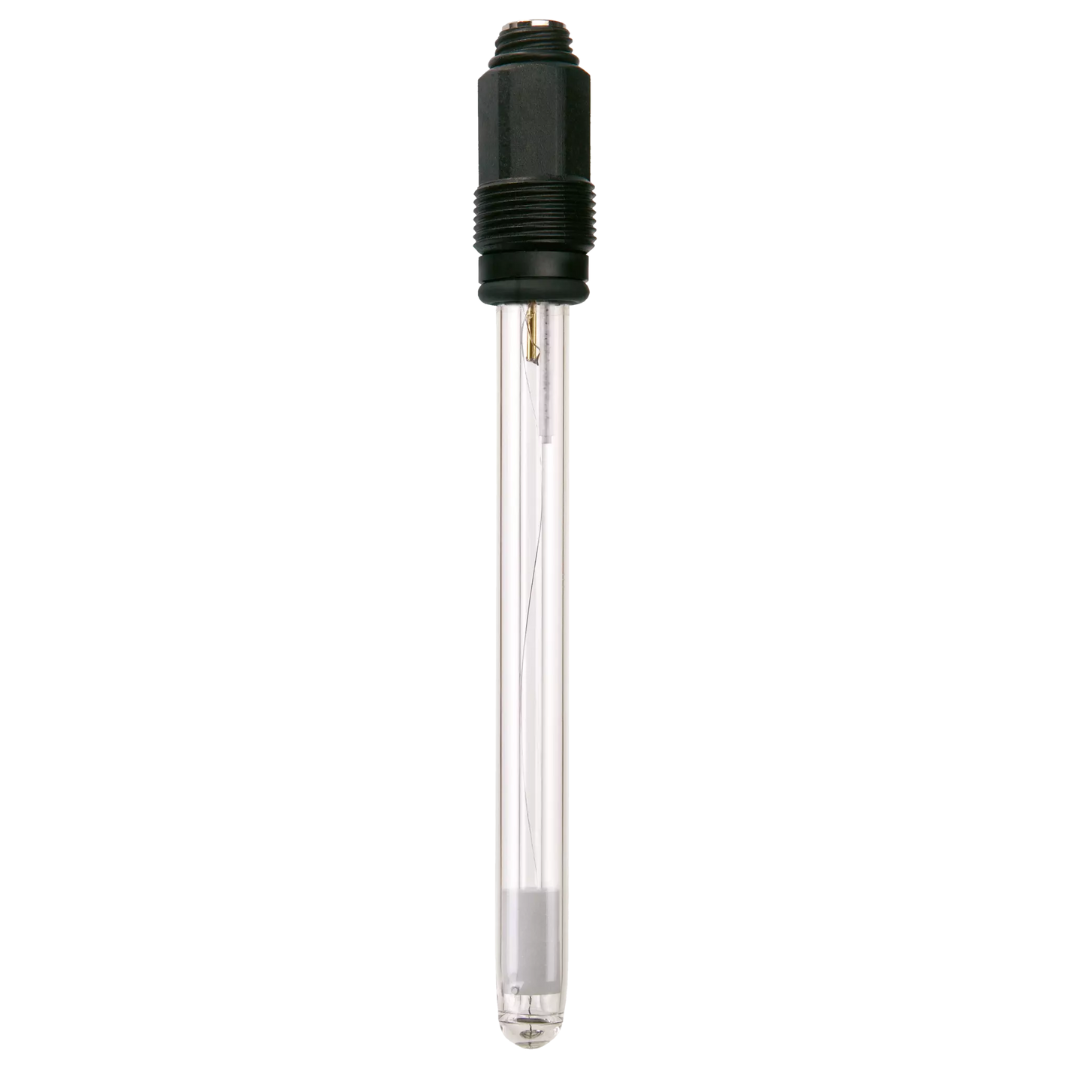

JUMO tecLine

The product acquires the redox value of water and aqueous-based media. This high-quality industrial electrode is mainly used in swimming pools and for drinking water disinfection.

Categories: Electrodes/sensors, Liquid analysis

Technical data
Downloads

Technical data

General technical data
Active part	Platinum or gold cone (± 2000 mV)
Diaphragm	Ceramic diaphragm, glass fiber diaphragm, PTFE ring diaphragm, annular gap or hole diaphragm
Electrode head	Plug head; plug head with fixed cable; screw head Pg13.5; screw head Pg13.5 with fixed cable
Pressure range	0 to 10 bar
Temperature range	-10 to +135 °C
Features	For industrial applications, high level of mechanical robustness, with plastic shaft
Areas of application	Swimming pool and drinking water disinfection; chromate reduction, nitrite oxidation, cyanide oxidation, water disinfection

General technical data

Active part

Platinum or gold cone (± 2000 mV)

Diaphragm

Ceramic diaphragm, glass fiber diaphragm, PTFE ring diaphragm, annular gap or hole diaphragm

Electrode head

Plug head; plug head with fixed cable; screw head Pg13.5; screw head Pg13.5 with fixed cable

Pressure range

0 to 10 bar

Temperature range

-10 to +135 °C

Features
