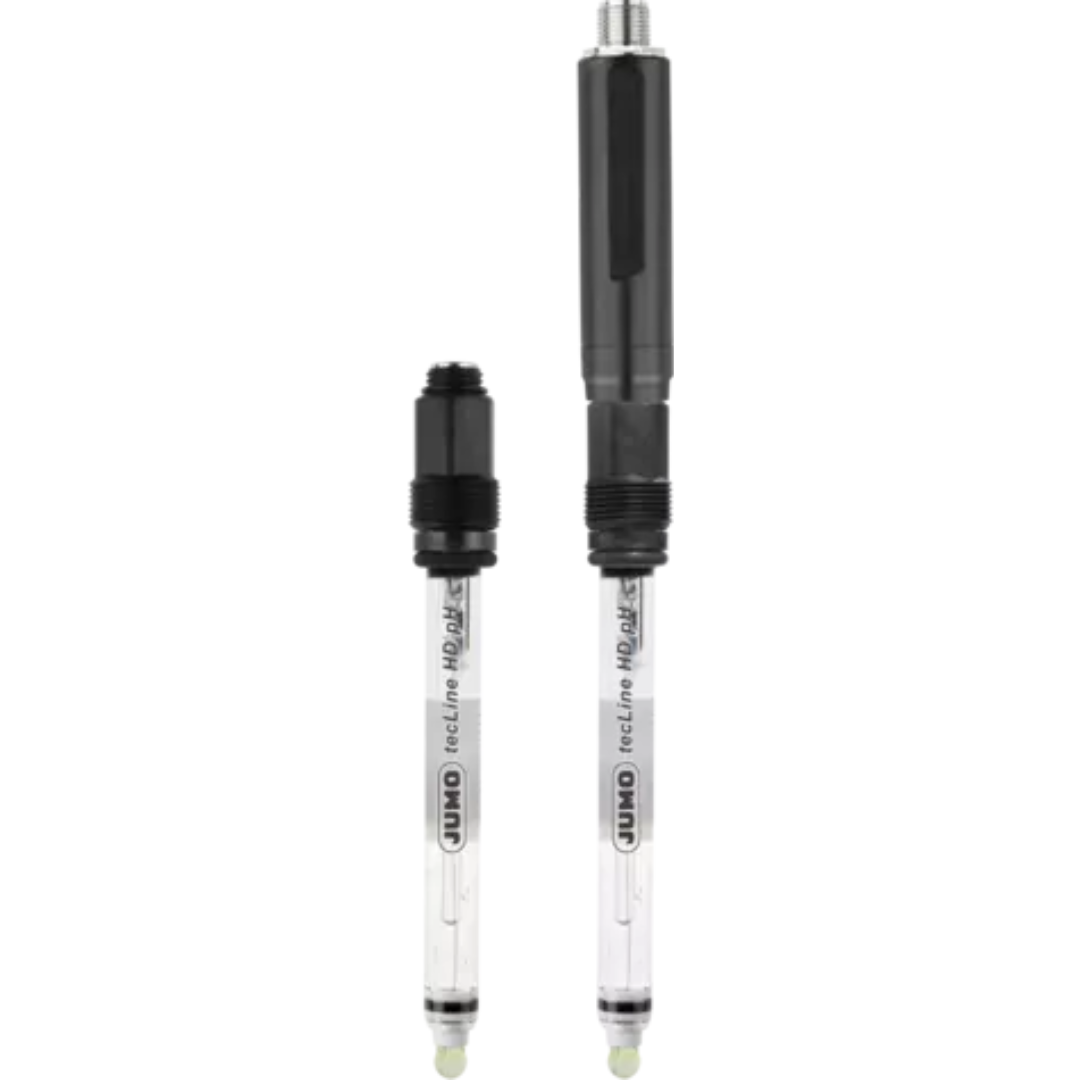

JUMO tecLine HD

The product acquires the pH value of water and aqueous-based media. It has robust industrial electrodes for the most demanding applications with increased dirt and poison load as well as oil-containing media.

Categories: Electrodes/sensors, Liquid analysis

Technical data
Downloads

Technical data

general technical data
Active part	High-temperature (HT) glass, suitable for high-alkaline
Temperature range	0 to 135 °C (depending on diaphragm)
Pressure range	Up to 13 bar
Electrode head	N-screw head (S8), Pg13.5 thread; VarioPin (VP) plug head, Pg13.5 thread
Temperature sensor	Pt1000
Insertion length	120 or 225 mm
Diaphragm	Extensive PTFE ring diaphragm or pinhole diaphragm
Special feature	Available with reusable JUMO digiLine electronic components (type 202705)
Features	For industrial applications; also available in heavy-duty and hygienic version for demanding processes; integrated temperature sensor
Area of application	Process measurement; high temperature applications; suspensions; galvanic; coatings; wastewater; ultra-pure water; water; always contaminated media; hygienic and sterile applications; boiler feed water

general technical data

Active part

High-temperature (HT) glass, suitable for high-alkaline

Temperature range

0 to 135 °C (depending on diaphragm)

Pressure range

Up to 13 bar

Electrode head

N-screw head (S8), Pg13.5 thread; VarioPin (VP) plug head, Pg13.5 thread

Temperature sensor

Pt1000

Insertion length

120 or 225 mm

Diaphragm

Extensive PTFE ring diaphragm or pinhole diaphragm

Special feature

Available with reusable JUMO digiLine electronic components (type 202705)

Features

For industrial applications; also available in heavy-duty and hygienic version for demanding processes; integrated temperature sensor

Area of application

Process measurement; high temperature applications; suspensions; galvanic; coatings; wastewater; ultra-pure water; water; always contaminated media; hygienic and sterile applications; boiler feed water
