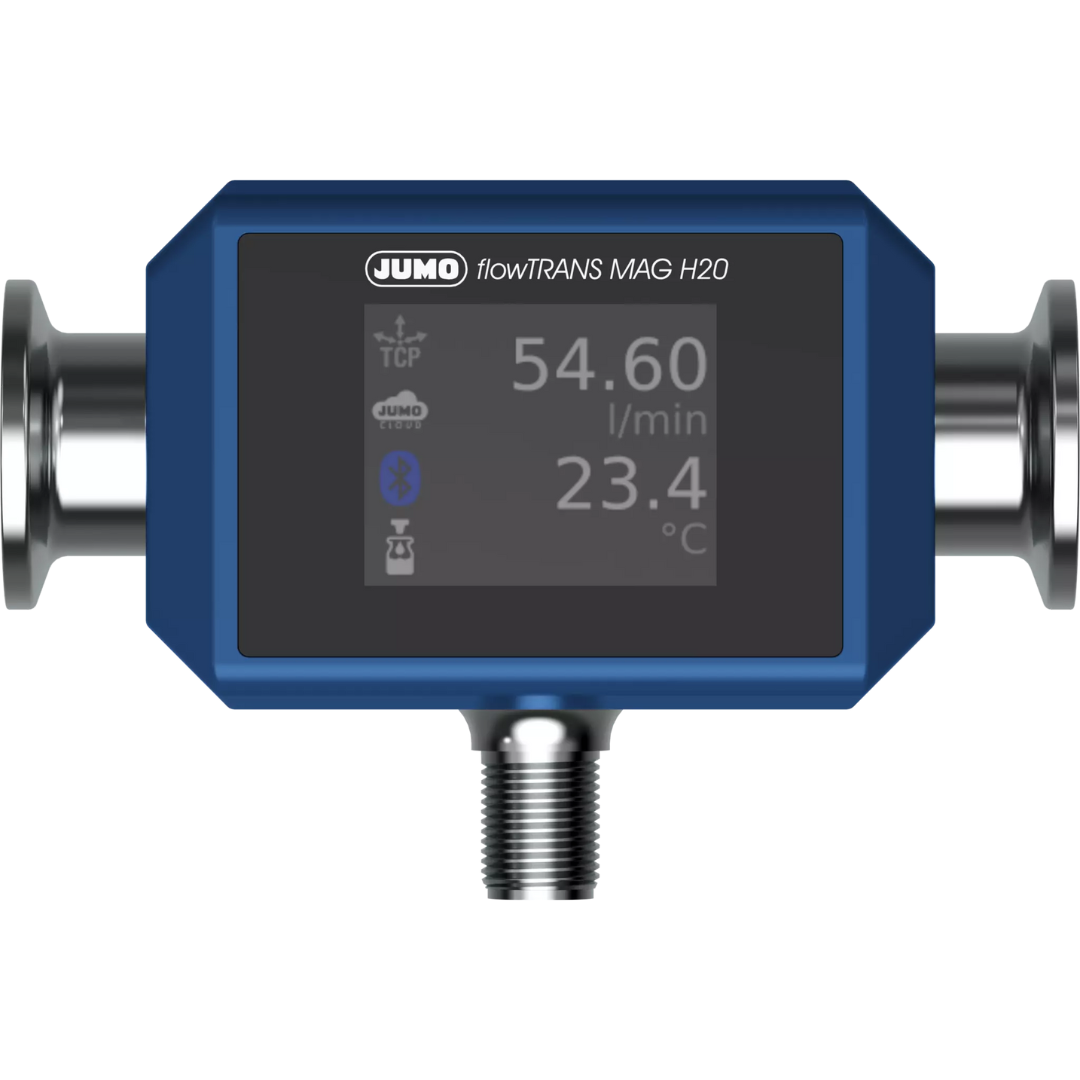

JUMO flowTRANS MAG H20
The JUMO flowTRANS MAG H20 is an electromagnetic flowmeter for industrial automation. Its compact design allows it to fit into the smallest plants (dosing systems, apparatus cooling) and to measure conductive media with a high degree of precision. TRI-Clamps allow process-oriented use in the hygienic industry. The usual G-type external threads are available as well.
Technical data
| General technical data | |
|---|---|
| Flow rates | 0.005 to 150 l/min |
| Medium temperature | Up to 90 °C |
| Insertion length | 110 mm (except TRI-Clamp DN 25) |
| Inlet and outlet section | ≥ 0 DN/≥ 0 DN |
| Inputs and outputs | SPE with PoDL (Modbus TCP, JUMO Cloud connector), IO-Link (incl. analog/digital inputs/outputs) |
| Protection type | IP65/IP67/IP69 |
