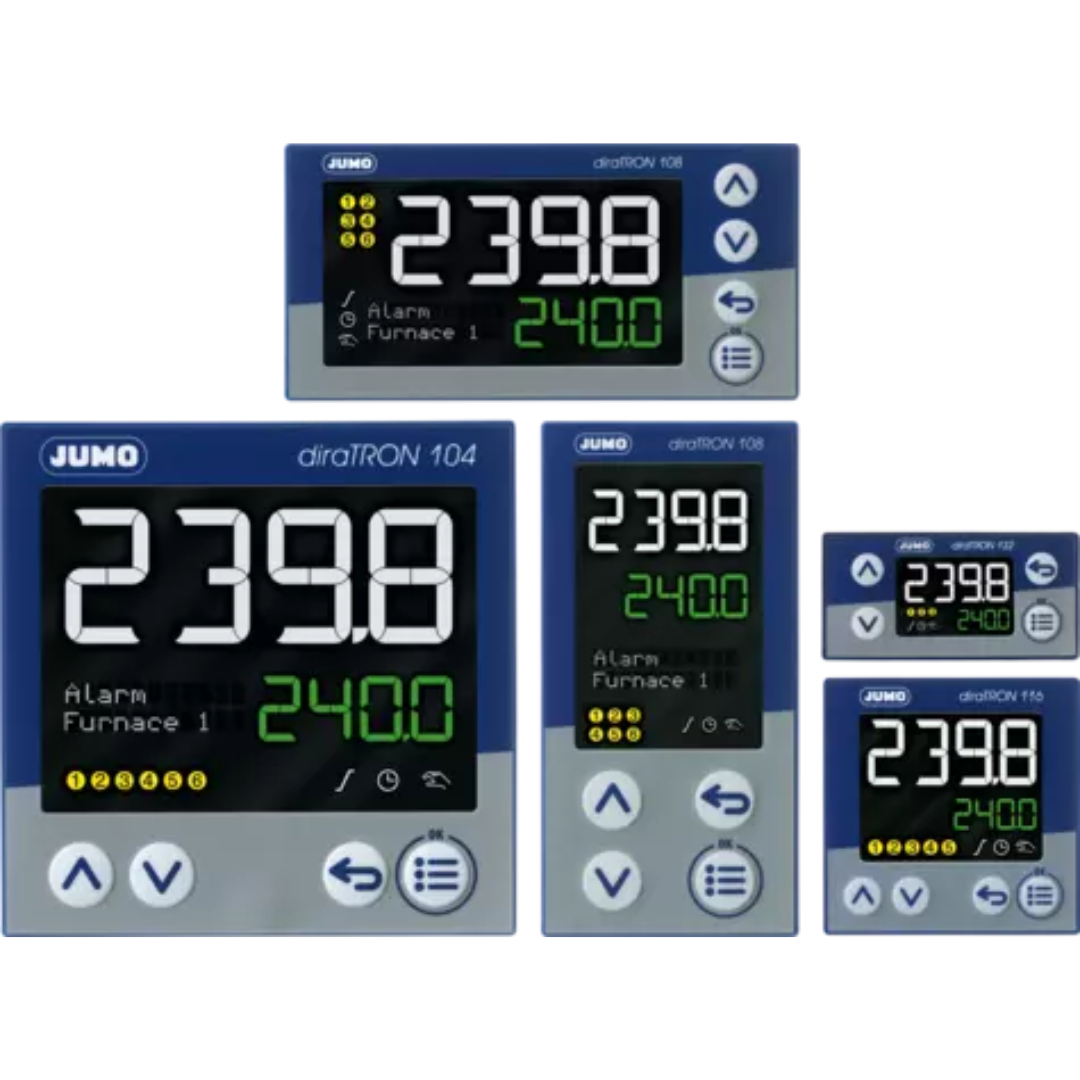

JUMO diraTRON

Universally-applicable devices in 5 DIN formats for controlling process variables. The basic type includes autotuning, a ramp function, a program controller, manual mode, limit value monitoring functions, digital control signals, extensive timer functions, and a service counter.

Categories: Control, Controller, Controller, Controllers, Flow, Level, Pressure, Temperature

Technical data
Downloads

Technical data

general technical data
Inputs	Inputs 1 × universal thermocouple, RTD temperature probe, 0(2) to 10 V, 0(4) to 20 mA; 2 × digital input
Outputs	1 × logic output, up to 2 relays (3 A/230 V normally open contact); up to 4 optionally: relay, logic, PhotoMOS®, analog output
Display	2 × 18-segment LCD, pixel matrix LCD
Formats	132: 48 × 24 mm; 116: 48 × 48 mm; 108H: 48 × 96 mm; 108Q: 96 × 48 mm; 104: 96 × 96 mm
Interfaces	RS485 (Modbus-RTU), micro USB (configuration)

general technical data

Inputs

Inputs 1 × universal thermocouple, RTD temperature probe, 0(2) to 10 V, 0(4) to 20 mA; 2 × digital input

Outputs

1 × logic output, up to 2 relays (3 A/230 V normally open contact); up to 4 optionally: relay, logic, PhotoMOS®, analog output

Display

2 × 18-segment LCD, pixel matrix LCD

Formats

132: 48 × 24 mm; 116: 48 × 48 mm; 108H: 48 × 96 mm; 108Q: 96 × 48 mm; 104: 96 × 96 mm

Interfaces

RS485 (Modbus-RTU), micro USB (configuration)
