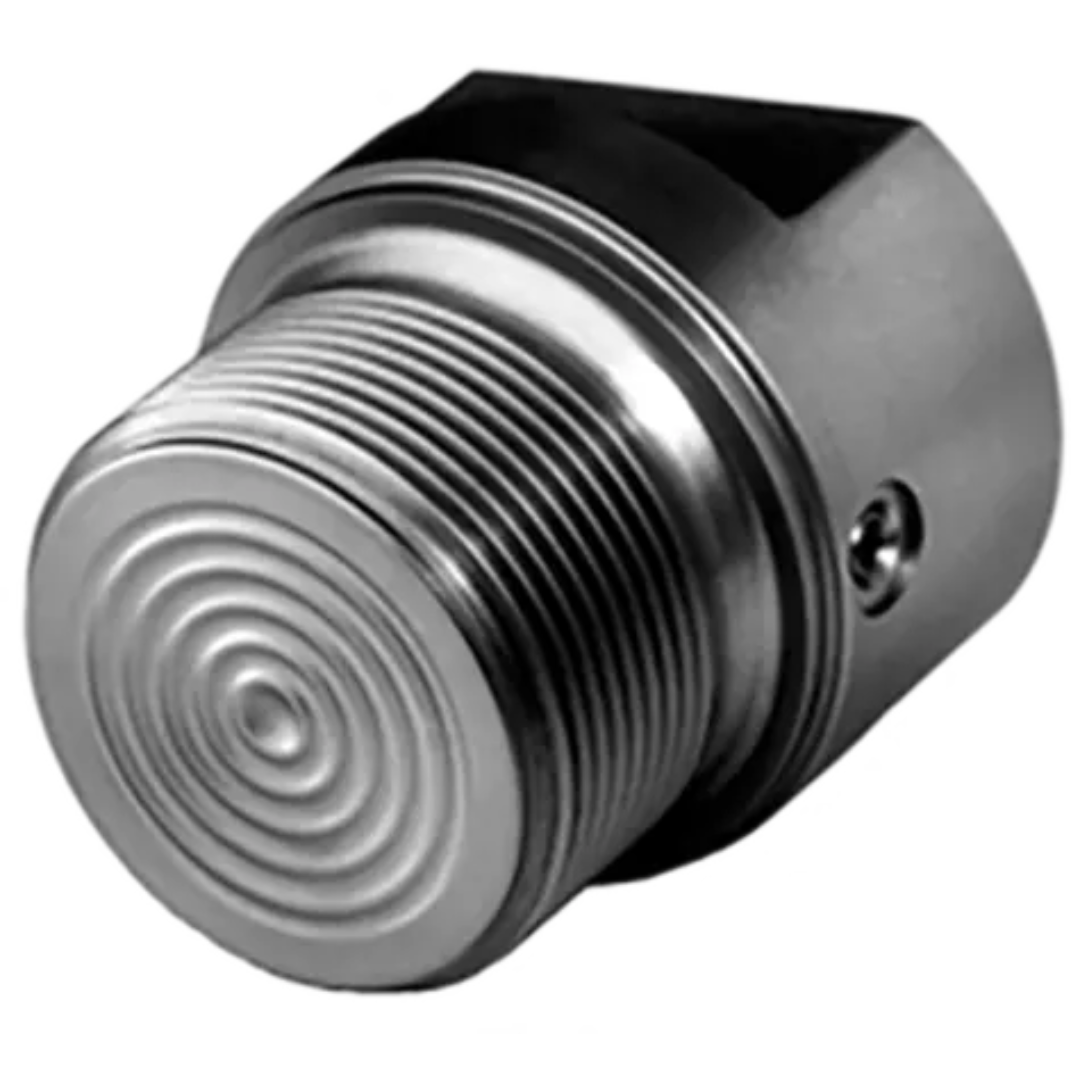

Diaphragm seal
Diaphragm seals protect the pressure measuring device from contaminated, hot, highly viscous, stagnant, crystallizing, and especially corrosive media.
Technical data
| general technical data | |
|---|---|
| Filling medium | Silicone oil, halogenated oil, vegetable oil |
| Material | Stainless steel |
| Capillary tube | 1 m, 1.5 m, 2 m, 3 m, 5 m |
| Process connection | G1B (DIN ISO 228/1), G11/2B (DIN ISO 228/1), G2B (DIN ISO 228/1), 1″ NPT (ANSI B1.201), 11/2″ NPT (ANSI B1.201), 2″ NPT (ANSI B1.201) |
| Connection | Screw-in thread DIN ISO 228/1 or ANSI B 1.201 |
