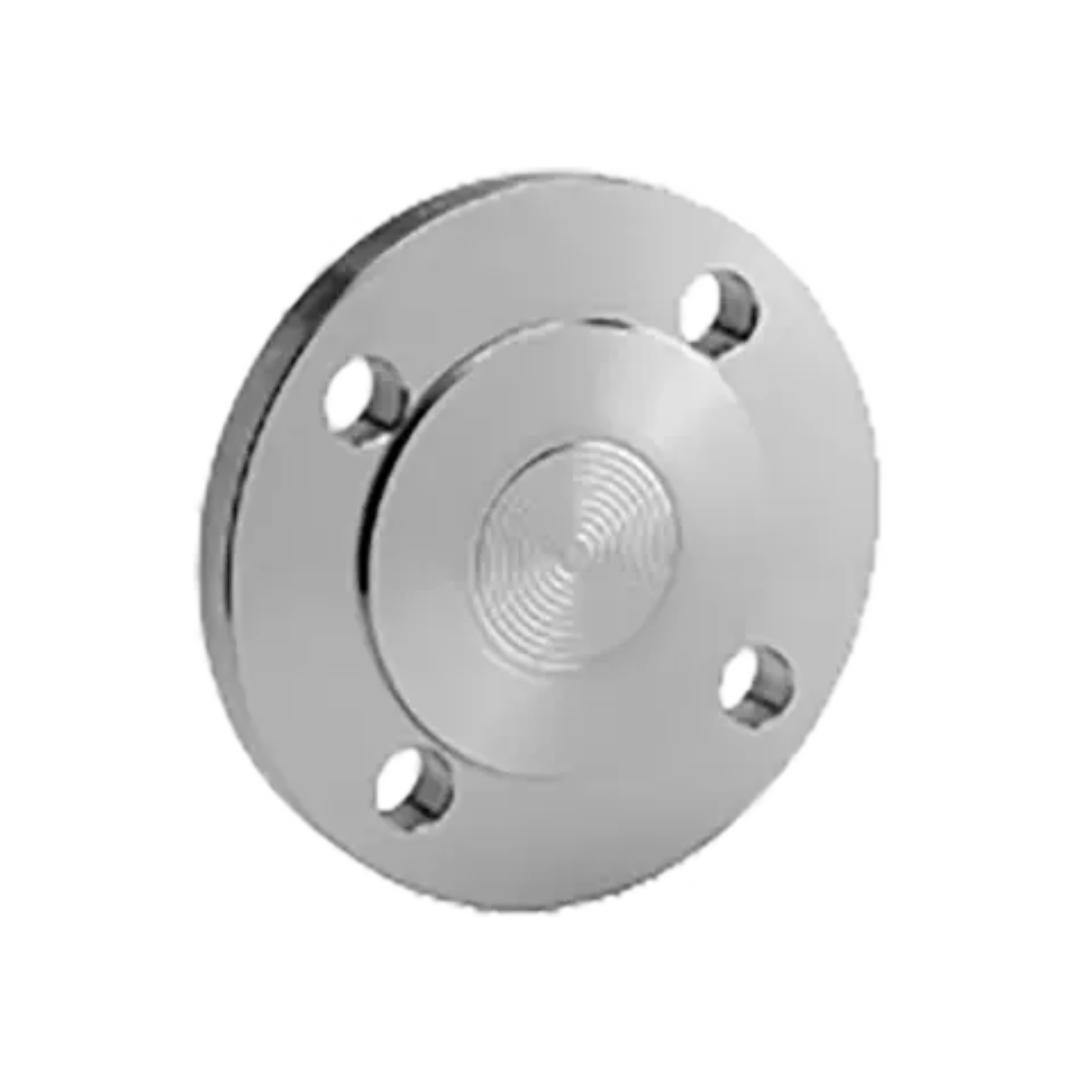

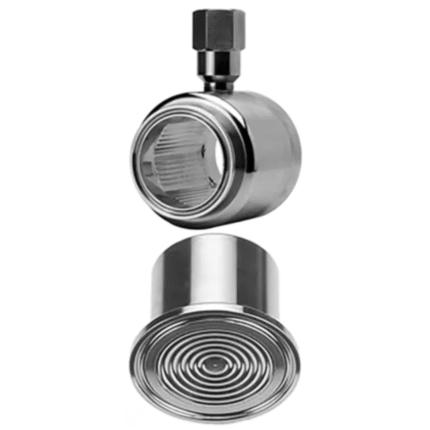

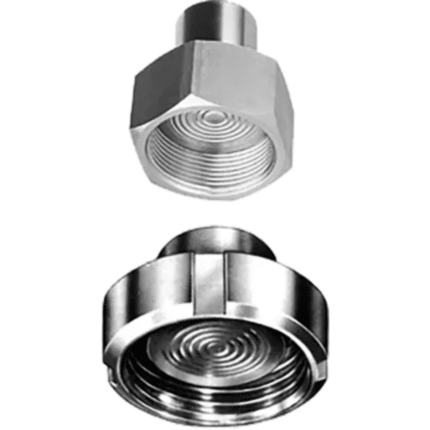

Diaphragm seal
Diaphragm seals protect the pressure measuring device from contaminated, hot, highly viscous, stagnant, crystallizing, and especially corrosive media.
Technical data
| general technical data | |
|---|---|
| Filling medium | Silicone oil, halogenated oil, vegetable oil |
| Process connection | DRD flange: diameter = 65 mm, VARIVENT® socket: diameter = 68 mm |
| Material | Stainless steel |
| Capillary tube | 1 m, 1.5 m, 2 m, 3 m, 5 m |
| Weight | 0.8 kg |
Downloads
Certificate
Brochure
Brochure
Brochure
Order details
