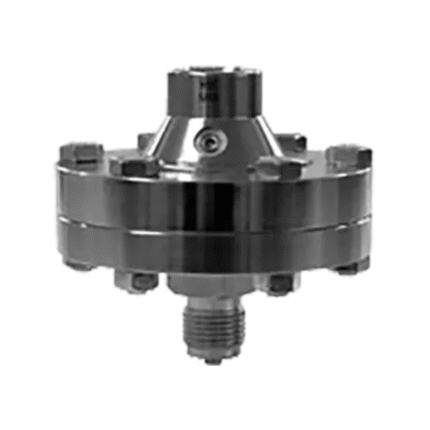

Diaphragm seal
Diaphragm seals protect the pressure measuring device from contaminated, hot, highly viscous, stagnant, crystallizing, and especially corrosive media.
Technical data
| general technical data | |
|---|---|
| Filling medium | Silicone oil, halogenated oil, vegetable oil |
| Capillary tube | 1 m, 1.5 m, 2 m, 3 m, 5 m |

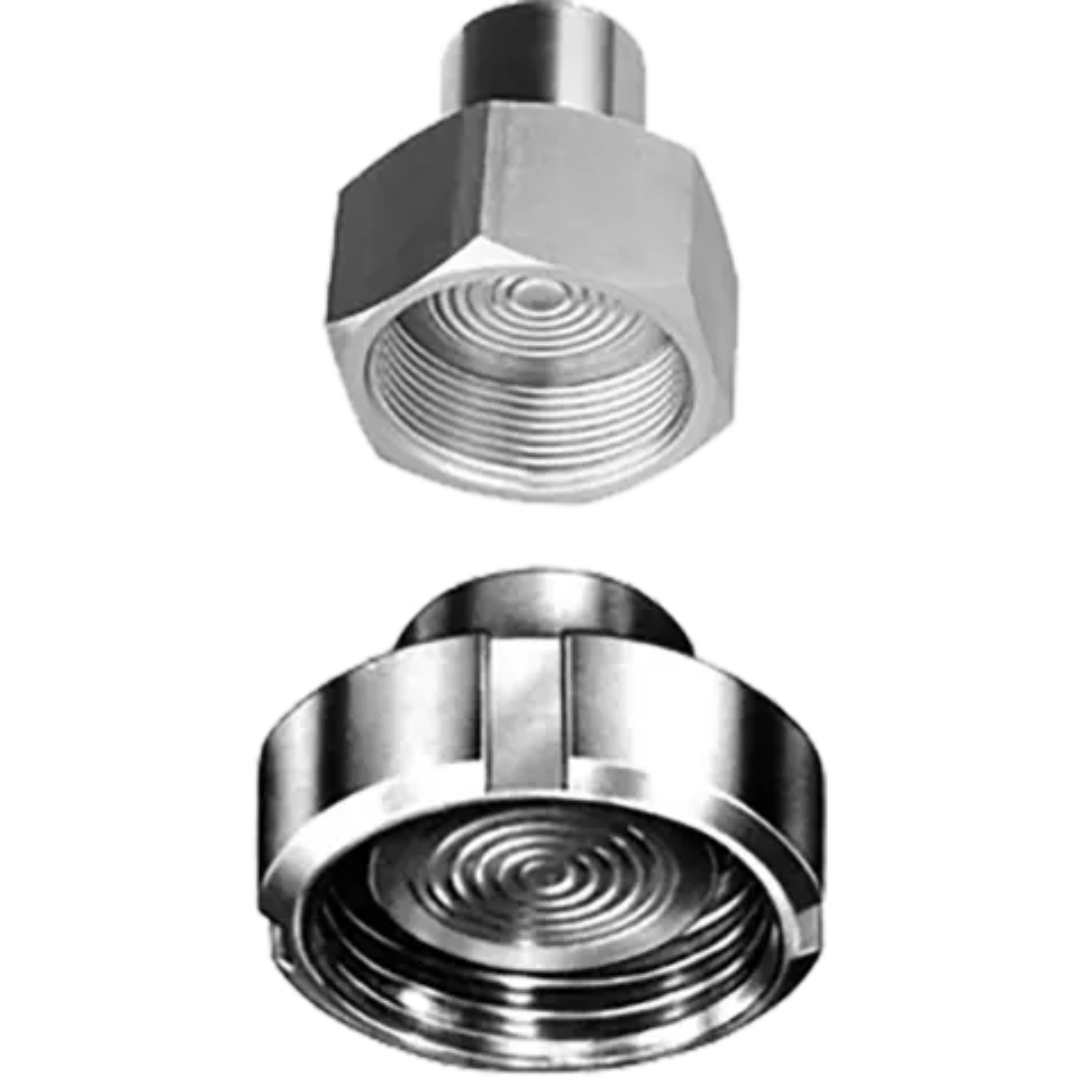

| Connection type | ISS socket or with SMS socket or with RJT socket and union nut |
| Material | Stainless steel |
| Process connections | ISS DN 1″, ISS DN 1 1/2″, ISS DN 2″, SMS DN 1″, SMS DN 1 1/2″, SMS DN 2″, RJT DN 1″, RJT DN 1 1/2″, RJT DN 2″ |
