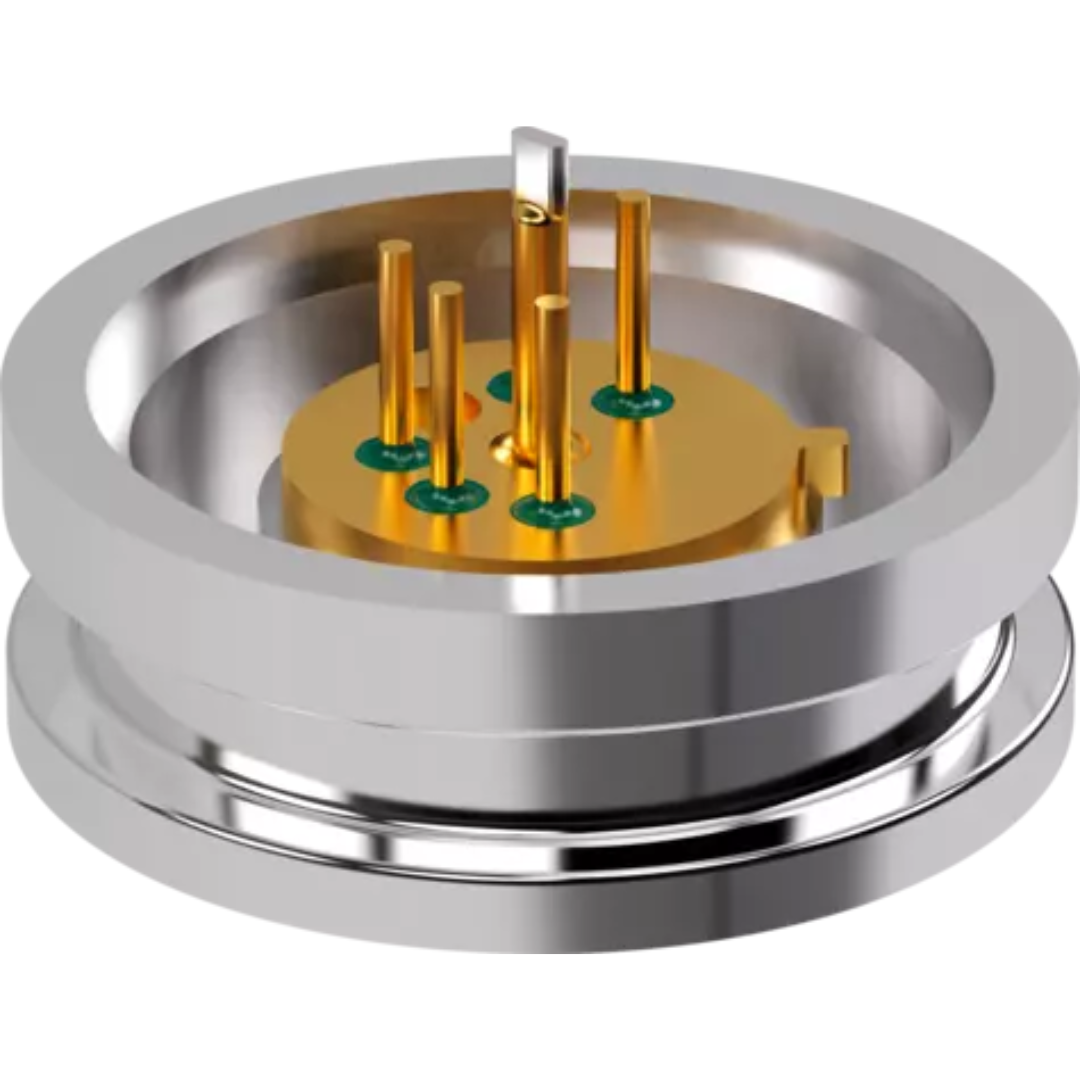

JUMO CEROS S01 M
The pressure measuring cell provides a temperature compensated and calibrated digital/analog output signal. The piezoresistive sensing element with integrated signal processing is hermetically encapsulated. It ensures stable, precise linearity and accuracy values even under adverse conditions.
Technical data
| general technical data | |
|---|---|
| Measuring range | As of 100 mbar to 100 bar |
| Operating temperature | -40 to +125 °C |
| Linearity | As of 0.2 % MSP |
| Signal output | 0.5 to 4.5 V ratiometric; I²C, DC 5 V, four-wire |
| Vibration resistance | 20 g for 5 to 2000 Hz |
| Surface roughness | Ra < 0.8 μm |
| Filling oil | Silicon oil (FDA compliant) |
| Diameter | Various from 11 to 19 mm |
