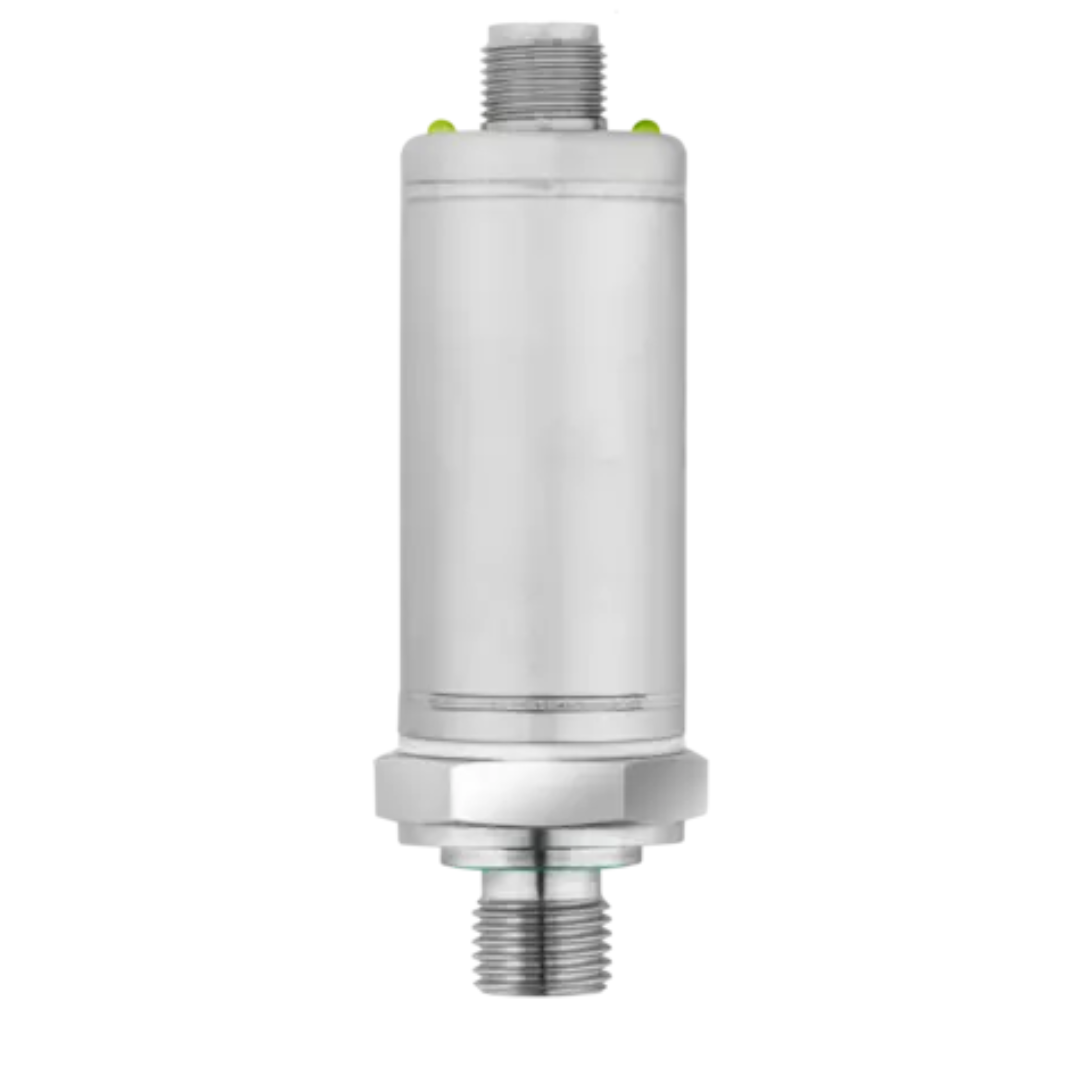

JUMO dTRANS p35

The pressure sensor measures relative and absolute pressure in liquids and gases. The device is equipped with an IO-Link interface according to specification 1.1. As a result, the pressure sensor is suitable for use in plant and mechanical engineering for connecting to automation systems.

Categories: Pressure, Transmitters

Technical data
Downloads

Technical data

general technical data
Measuring range	400 mbar to 600 bar relative, absolute
Medium temperature	-25 to +125 °C
Ambient temperature	-40 to +85 °C
Output	IO-Link device V 1.1 (downward compatible to IO-Link V 1.0); 2 outputs for switch operation (SIO mode; SIO = standard IO)
Data transfer rate	COM 3 (230.4 kBaud)
Process connection	Market-based screw connections and hygienic process connections
Protection type	IP65, IP67
Approval	cULus
Cycle time	2 ms
Areas of application	Food industry, mechanical and plant engineering, packaging industry, process automation
Interface	IO-Link

general technical data

Measuring range

400 mbar to 600 bar relative, absolute

Medium temperature

-25 to +125 °C

Ambient temperature

-40 to +85 °C

Output

IO-Link device V 1.1 (downward compatible to IO-Link V 1.0); 2 outputs for switch operation (SIO mode; SIO = standard IO)

Data transfer rate

COM 3 (230.4 kBaud)

Process connection
