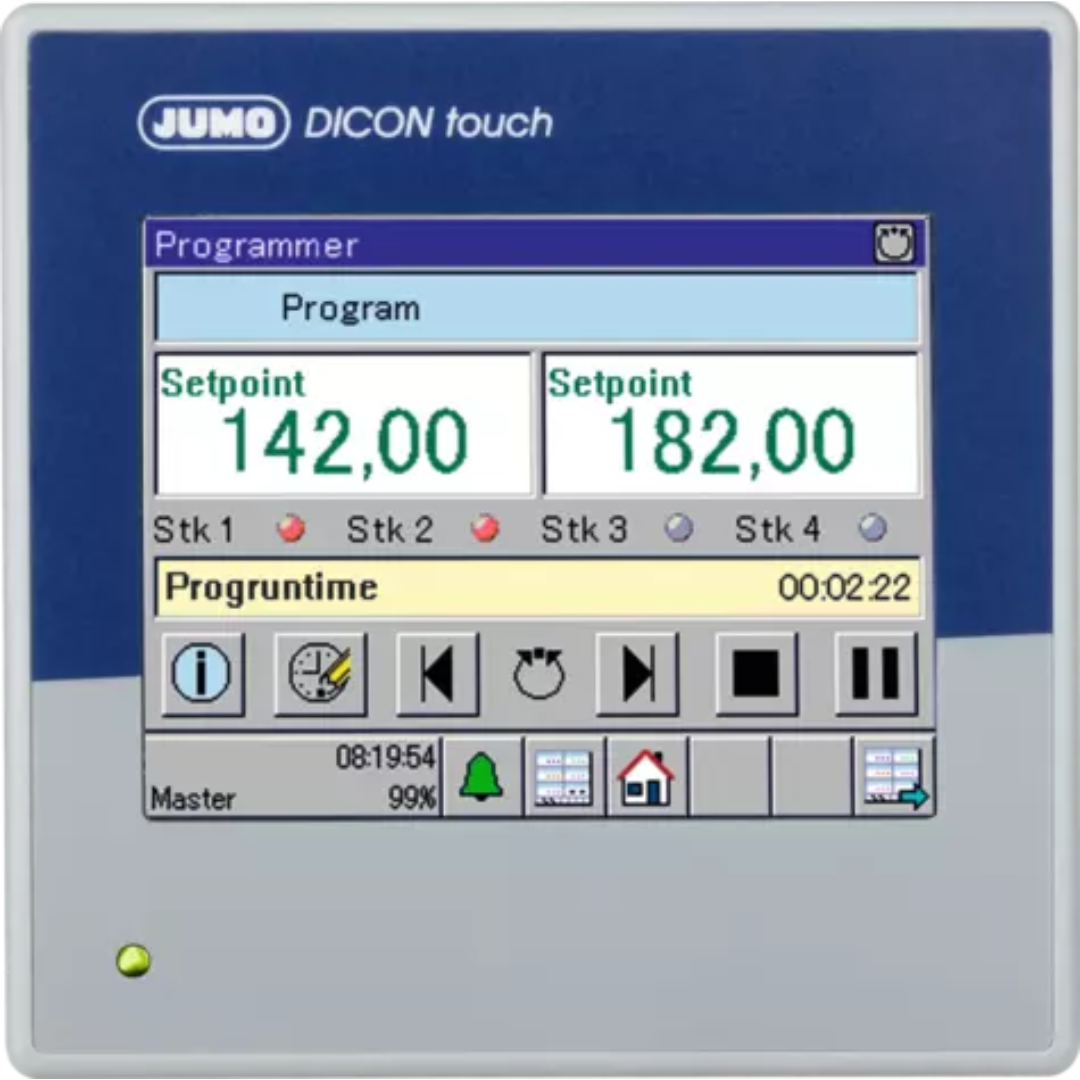

JUMO DICON touch

DICON touch can be used to perform complex control and management tasks. The plant can be visualized and operated via freely-definable process screens. The device has a modular design and can therefore be adapted to the individual plant.

Categories: Control, Controller, Controller, Controllers, Flow, Level, Pressure, Temperature

Technical data
Downloads

Technical data

general technical data
Measuring inputs	Up to 4 user configurable analog inputs for: RTD temperature probes; resistance transmitters; thermocouples; current 0(4) to 20 mA; voltage 0(2) to 10 V; customer-specific linearization possible
Digital inputs	7 digital inputs for potential-free contacts
Outputs	Max. 12 internal: relays (changeover contact/normally open contact); logic output 0/12 V or 0/24 V; semiconductor output 1 A; analog output 0/4 to 20 mA or 0/2 to 10 V; switching outputs can be expanded with 2 external modular assemblies; voltage supply for two-wire transmitter via 24 V logic output
Display	3.5 inch TFT color screen (320 × 420 pixels, 256 colors) with touchscreen operation; plain text display available in English, German, French, and other languages; process-specific texts and screens can be individually configured; bar graph display
Interfaces/protocols	1 × RS485 (Modbus); 1 × Ethernet, PROFIBUS DP, PROFINET, or RS422/485 (Modbus); USB host; USB device
Controller type	Two-state controller; three-state controller; modulating controller; continuous controller; continuous controller with integrated position controller
Controller structure	P; I; PD; PI; PID (4 sets of control parameters per channel)
Alarms	16 limit value monitoring functions with 8 selectable alarm functions with timer and confirmation function each
Number of control channels	2 independent and user configurable control channels
Program controller	10 programs each with 50 sections; 8 control tracks
Mounting	Metal/plastic housing for panel mounting
Format	96 mm × 96 mm × 131 mm
Voltage supply	AC/DC 20 to 30 V, 48 to 63 Hz or AC 110 to 240 V +10/-15 %, 48 to 63 Hz
Protection type	At the front IP66; at the rear IP20
Special features	Modular structure with plug-in cards that can be retrofitted individually; intuitive operation via touchscreen; easy-to-use PC setup program including startup software; recording function with evaluation software; autotuning procedure for determining the controller parameters; programmable operating level; math and logic functions, as well as additional binary signal processing; programmable function fields and individually configurable process screen for plant visualization with interactive display and input fields; teleservice and email notification; controller output level and control loop monitoring; integrated web server; Modbus master function; five-digit analog value display; individual assignment of rights to various users (levels and control commands); Ethernet interface; weekly time switch; visualization of process values via the JUMO Device App
Approvals	cULus; DIN EN 14597; GL; AMS2750/CQI-9

general technical data

Measuring inputs

Up to 4 user configurable analog inputs for: RTD temperature probes; resistance transmitters; thermocouples; current 0(4) to 20 mA; voltage 0(2) to 10 V; customer-specific linearization possible

Digital inputs

7 digital inputs for potential-free contacts

Outputs

Max. 12 internal: relays (changeover contact/normally open contact); logic output 0/12 V or 0/24 V; semiconductor output 1 A; analog output 0/4 to 20 mA or 0/2 to 10 V; switching outputs can be expanded with 2 external modular assemblies; voltage supply for two-wire transmitter via 24 V logic output

Display

3.5 inch TFT color screen (320 × 420 pixels, 256 colors) with touchscreen operation; plain text display available in English, German, French, and other languages; process-specific texts and screens can be individually configured; bar graph display

Interfaces/protocols

1 × RS485 (Modbus); 1 × Ethernet, PROFIBUS DP, PROFINET, or RS422/485 (Modbus); USB host; USB device

Controller type

Two-state controller; three-state controller; modulating controller; continuous controller; continuous controller with integrated position controller

Controller structure

P; I; PD; PI; PID (4 sets of control parameters per channel)

Alarms

16 limit value monitoring functions with 8 selectable alarm functions with timer and confirmation function each

Number of control channels

2 independent and user configurable control channels

Program controller

10 programs each with 50 sections; 8 control tracks

Mounting

Metal/plastic housing for panel mounting

Format

96 mm × 96 mm × 131 mm

Voltage supply

AC/DC 20 to 30 V, 48 to 63 Hz or AC 110 to 240 V +10/-15 %, 48 to 63 Hz

Protection type

At the front IP66; at the rear IP20

Special features

Modular structure with plug-in cards that can be retrofitted individually; intuitive operation via touchscreen; easy-to-use PC setup program including startup software; recording function with evaluation software; autotuning procedure for determining the controller parameters; programmable operating level; math and logic functions, as well as additional binary signal processing; programmable function fields and individually configurable process screen for plant visualization with interactive display and input fields; teleservice and email notification; controller output level and control loop monitoring; integrated web server; Modbus master function; five-digit analog value display; individual assignment of rights to various users (levels and control commands); Ethernet interface; weekly time switch; visualization of process values via the JUMO Device App

Approvals

cULus; DIN EN 14597; GL; AMS2750/CQI-9
