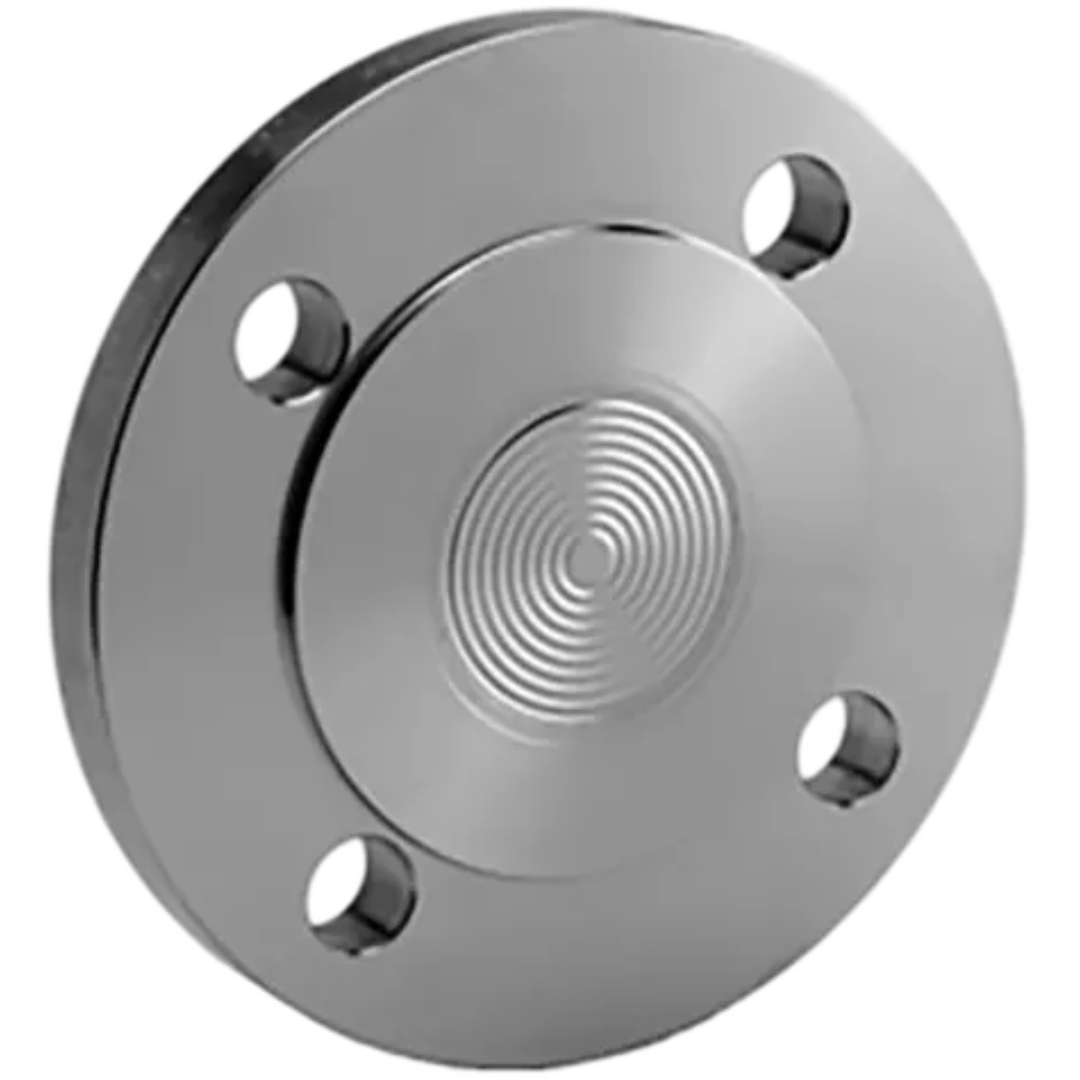

Diaphragm seal
Diaphragm seals protect the pressure measuring device from contaminated, hot, highly viscous, stagnant, crystallizing, and especially corrosive media. This product has been designed according to ANSI B 16.5 and is available with a sealing strip type RF.
Technical data
| general technical data | |
|---|---|
| Material | Stainless steel |
| Filling medium | Silicone oil, halogenated oil, vegetable oil |
| Capillary tube | 1 m, 1.5 m, 2 m, 3 m, 5 m |
| Basic type | 50 mm, 100 mm, 150 mm, 200 mm |
| Connection | Flange connection according to ANSI B 16.5 |
