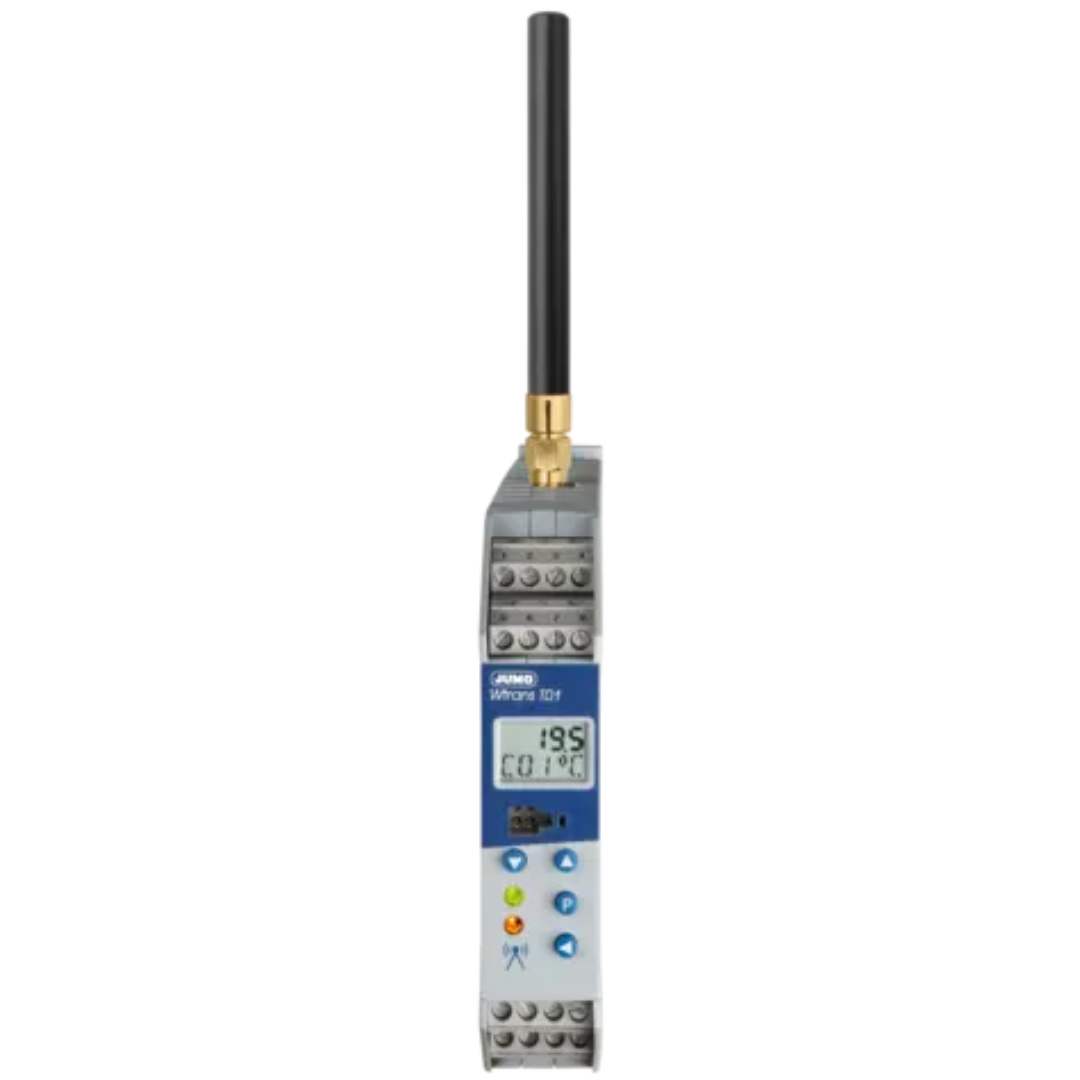

JUMO Wtrans receiver

The Wtrans receiver T01, in combination with suitable Wtrans transmitters, is used for the mobile or stationary measurement of the following physical measurands: temperature, pressure, and humidity. The wireless sensor technology also works in a harsh industrial environment.

Categories: Humidity & CO2, Hygro transducers and hygrothermal transducers, Pressure, Product selector, RTD temperature probes, Temperature, Transmitters, Transmitters

Technical data
Downloads

Technical data

general technical data

Configuration

Via PC interface or keys on the front

Ambient temperature

-20 to +50 °C

Installation

On mounting rail/DIN rail 35 × 7.5 mm

Input

16 receiving channels (receiving frequency 868.4 MHz)

Galvanic isolation

50 V

Output

2 × 4 to 20 mA/0 to 10 V, 2 × relay or 4 × 4 to 20 mA/0 to 10 V

NAMUR compliant

NE21

Voltage supply

AC 110 to 240 V, AC/DC 20 to 30 V

Calibration accuracy

± 0.1 %

Approvals

cULus, IC, FCC

Special features

LCD display, RS-485 interface (Modbus)
