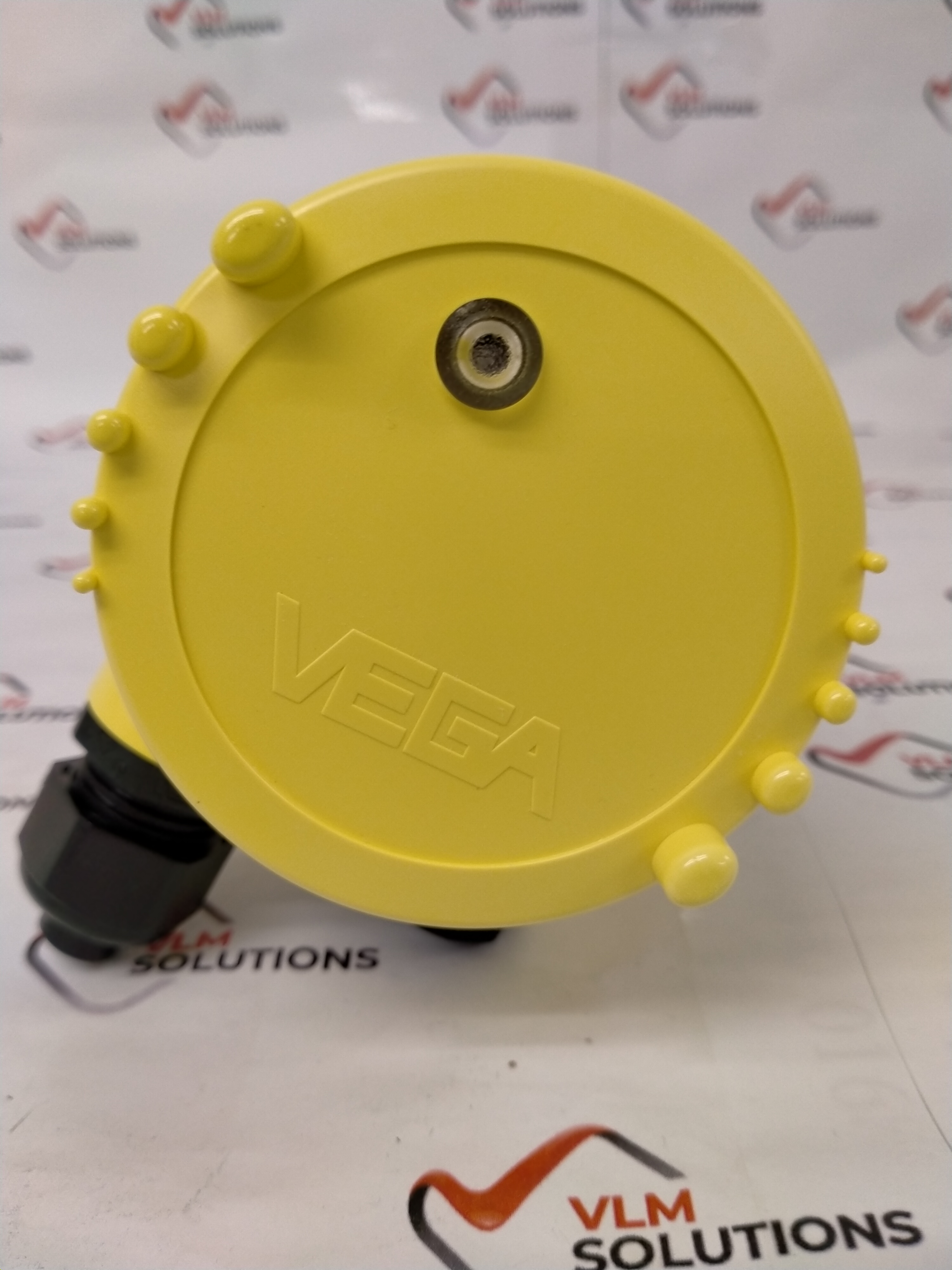

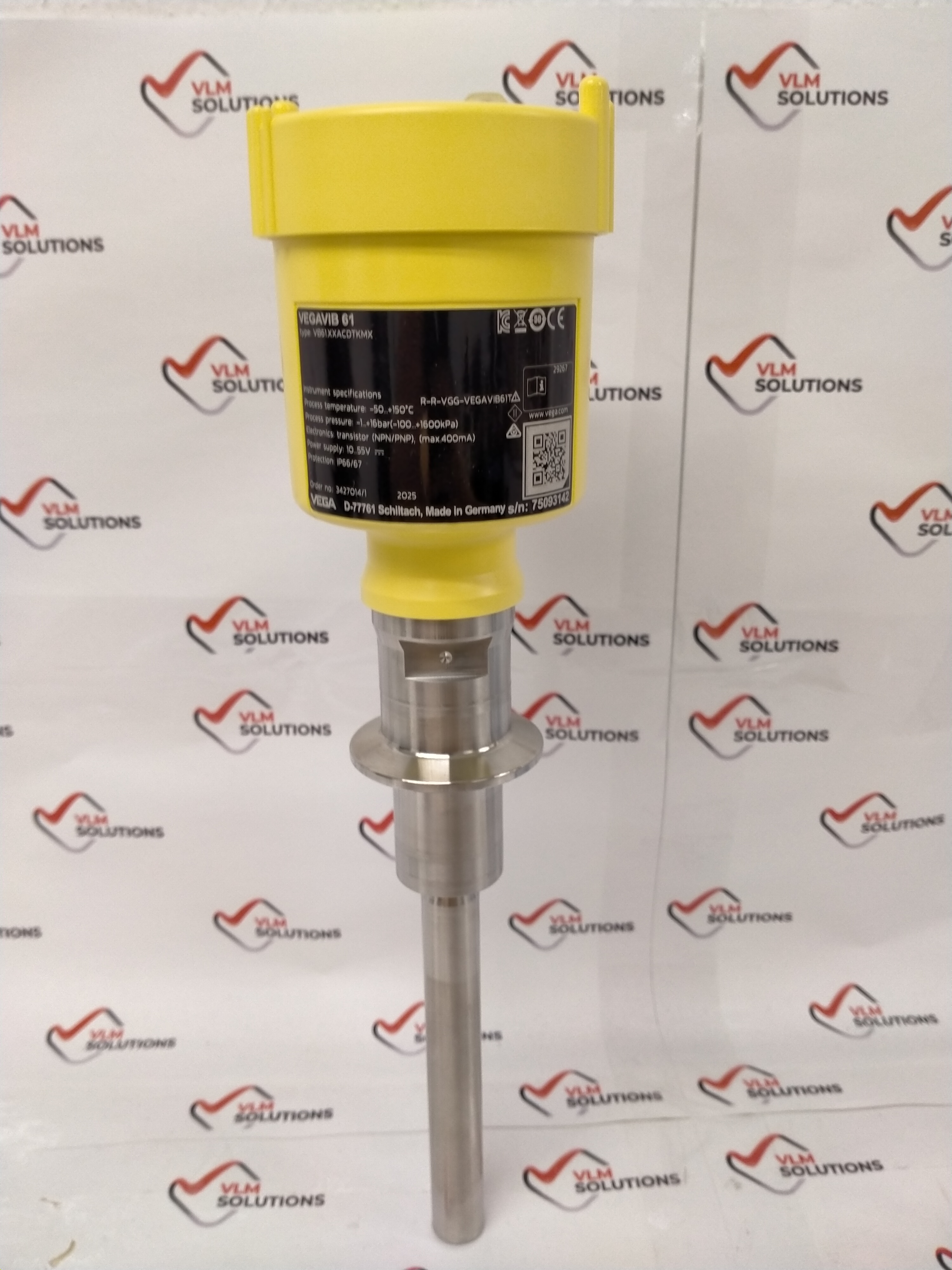

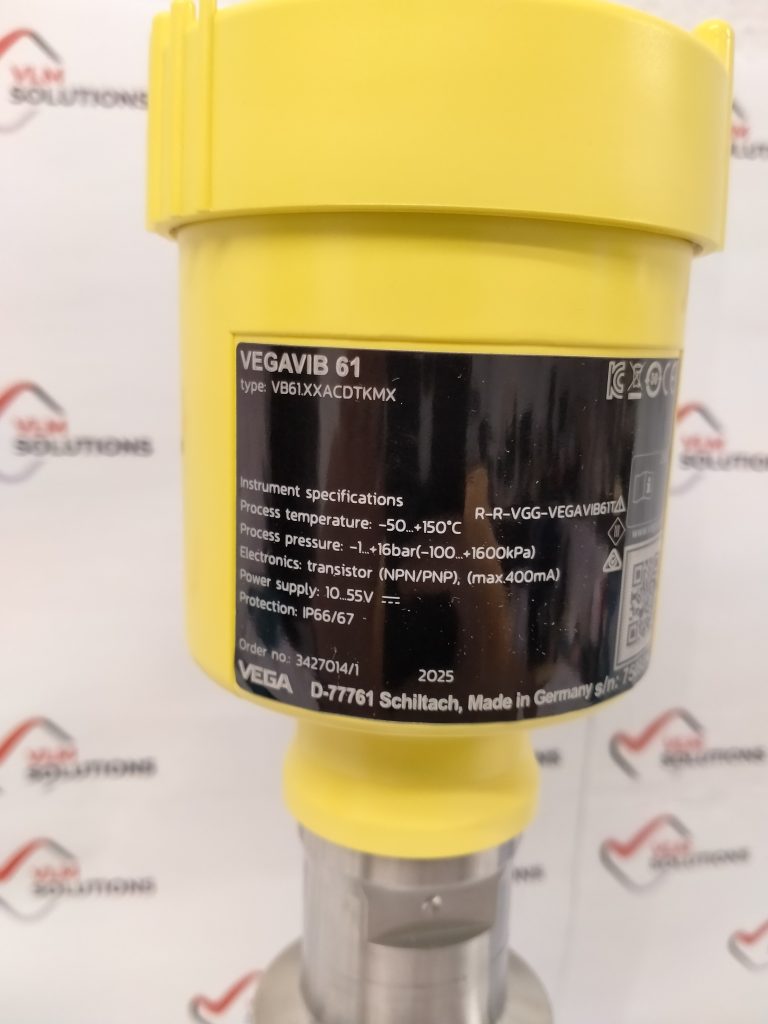

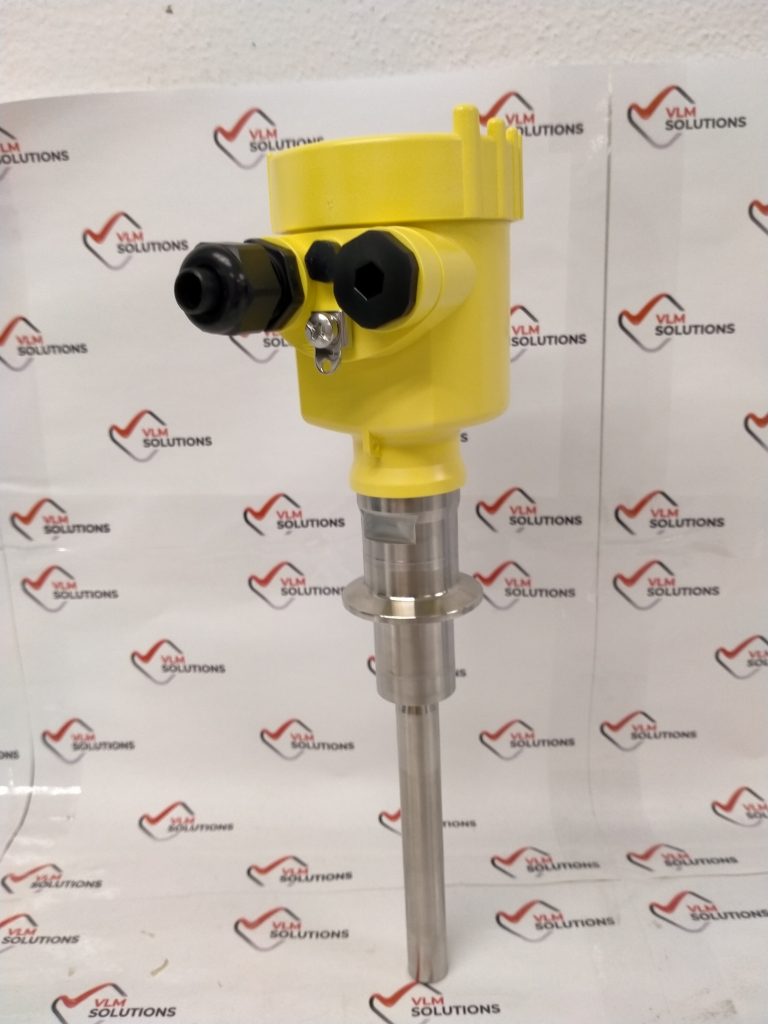

VEGAVIB 61
Vibrating level switch for granular bulk solids
For granulated bulk solids from density 20 g/l – compact version
Application area
It detects the limit level reliably and with millimetre accuracy directly at the mounting position. The smooth surface of the vibrating rod, without sharp corners or edges, prevents bulk material from getting stuck or jammed and is easy to clean.
The VEGAVIB 61 is a level switch for granular and coarse-grained bulk solids. The VEGAVIB 61 detects reliably and accurately the min. or max. limit level. The smooth surface of the vibrating rod, without corners and edges, avoids jamming of the bulk solid and is easy to clean.
Your benefit
- Low maintenance costs
- Minimum time and cost expenditure thanks to simple setup without medium
- Reliable function through product-independent switching point
Technical specifications
Measuring range – Distance
- – [Meter – Foot]
Process temperature
- -50 … 250 °C [°C – °F]
Process pressure
- -1 … 16 bar [Bar – kPa – psi]
Version
- Standard
- Detection of solids in water
Materials, wetted parts
- 316L
Threaded connection
- ≥ G1, ≥ 1 NPT
Flange connection
- ≥ DN 32, ≥ 1½”
Hygenic fittings
- Clamp ≥ 1½” – DIN32676, ISO2852
- Slotted nut ≥ 2″, DN50 – DIN 11851
- hygienic fitting F40 with compression nut
- Hygienic screw connections ≥ DN50 tube ø53 – DIN11864-1-A
- Hygienic fittings ≥ DN25 – DIN11864-1-A
- Hyg. clamp connection DIN11864-3-A; DN50 Rohr ø53
- Hygienic fittings ≥ DN50 pipe ø70 – DIN11864-1-A
Seal material
- no media contact
Housing material
- Plastic
- Aluminium
- Stainless steel (precision casting)
- Stainless steel (electropolished)
Protection rating
- IP66/IP68 (0,2 bar)
- IP66/IP67
- IP66/IP68 (1 bar)
Output
- Relay (DPDT)
- Contactless electronic switch
- Transistor (NPN/PNP)
- Two-wire
- NAMUR
Ambient temperature
- -40 … 80 °C
Approvals
Scope
- ATEX / Europe
- CSA / Canada
- FM / USA
- EAC (GOST) / Belarus
- EAC (GOST) / Kazakhstan
- EAC (GOST) / Russia
- IEC / worldwide
- KOSHA / Korea
- NEPSI / China
- UKR Sepro / Ukraine
- INMETRO / Brazil
- CCOE / India
Explosion protection
- Intrinsic safety “i”
- Flameproof enclosure “d”
- Dust ignition protection “t”
Foodstuffs/Pharma
- 3A
- EHEDG
- FDA
SIL qualification
- SIL2
Display & adjustment
Indication
- Pluggable display module PLICSLED
