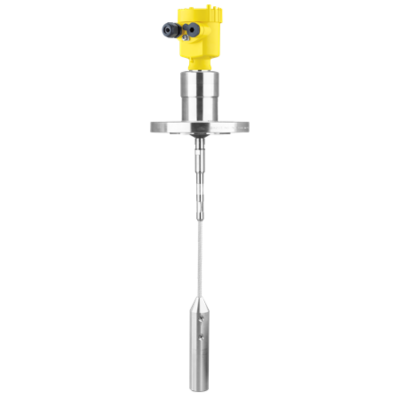

VEGAFLEX 82
TDR sensor for continuous level measurement of bulk solids
Universal TDR sensor for light bulk solids
Application area
Cable or rod sensor. Even in applications with large amounts of dust, condensation or buildup, the sensor delivers precise and reliable readings.
The VEGAFLEX 82 level sensor measures maintenance-free light and heavy-weight bulk solids. Even in applications with strong dust generation, condensation or buildup, the sensor delivers precise and reliable measured values. The VEGAFLEX 82 is an economical and reliable solution for your application.
Your benefit
- The guided adjustment enables a simple, time-saving and reliable setup
- Shortenable probes offer a simple standardisation and highest flexibility in the planning
- Virtually all bulk solids can be measured with the automatic probe end tracking
Technical specifications
Measuring range – Distance
- 75 m [Meter – Foot]
Process temperature
- -40 … 200 °C [°C – °F]
Process pressure
- -1 … 40 bar [Bar – kPa – psi]
Accuracy
- ± 2 mm
Version
- Basic version for exchangeable cable ø 4, ø 6 PA coat.
- Basic version for exchangeable cable ø 6, ø11 PA coat., rod ø16
- Exchangeable rod ø 16 mm
- Exchangeable cable ø 2 mm with gravity weight
- Exchangeable cable ø 6 mm with gravity weight
- Exchangeable, PA-coated steel cable ø 6 mm with gravity weight
- Exchangeable, PA-coated steel cable ø 11 mm with gravity weight
Materials, wetted parts
- 316L
- Alloy C22 (2.4602)
- PA
Threaded connection
- ≥ G¾, ≥ ¾ NPT
Flange connection
- ≥ DN25, ≥ 1″
Seal material
- EPDM
- FKM
- FFKM
Housing material
- Plastic
- Aluminium
- Stainless steel (precision casting)
- Stainless steel (electropolished)
Protection rating
- IP66/IP68 (0,2 bar)
- IP66/IP67
- IP66/IP68 (1 bar)
Output
- Profibus PA
- Foundation Fieldbus
- Two-wire: 4 … 20 mA/HART
- Modbus
- Four-wire: 4 … 20 mA/HART
Ambient temperature
- -40 … 80 °C
Approvals
Scope
- ATEX / Europe
- CSA / Canada
- FM / USA
- EAC (GOST) / Belarus
- EAC (GOST) / Kazakhstan
- EAC (GOST) / Russia
- IEC / worldwide
- KOSHA / Korea
- NEPSI / China
- UKR Sepro / Ukraine
- INMETRO / Brazil
- CCOE / India
- UKEX
Explosion protection
- Intrinsic safety “i”
- Flameproof enclosure “d”
- Dust ignition protection “t”
Ship approval
- ABS
- BV
- CCS
- DNV
- LR
- NK
- RINA
Overfill protection
- WHG
- VLAREM II
SIL qualification
- SIL2
Display & adjustment
Adjustment
- PLICSCOM
- PC, PACTware and DTM
- HART-Communicator
- Software (e. g. AMS™, PDM)
Indication
- Display/adjustment module PLICSCOM
- VEGADIS 81
- VEGADIS 82
Documentation
Guided radar
VEGAFLEX 82, 86
VEGAFLEX 82
Two-wire: 4 … 20 mA/HART
VEGAFLEX 82
Two-wire: 4 … 20 mA/HART
Connection cable
