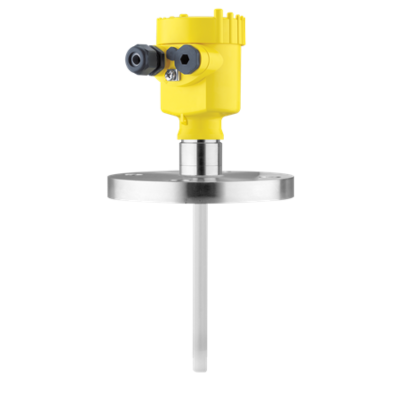

VEGACAL 63
Capacitive rod probe for continuous level measurement
Rod probe, fully PE or PTFE insulated
Application area
For measurement in conductive and non-conductive liquids. A full/empty adjustment is necessary for setup.
The VEGACAL 63 level sensor can be used universally for the measurement of conductive and non-conductive liquids. The rod electrode is fully insulated and the proven mechanical construction offers high functional safety.
Your benefit
- Savings through simple mounting and setup
- Long lifetime and low maintenance requirement through robust mechanical construction
- Maximum utilization of the vessel because measurement over the complete probe length
Technical specifications
Measuring range – Distance
- 6 m [Meter – Foot]
Process temperature
- -50 … 200 °C [°C – °F]
Process pressure
- -1 … 64 bar [Bar – kPa – psi]
Version
- PE insulation
- PE insulation and concentric tube
- PTFE insulation
- PTFE insulation with screening tube PN1
- PTFE insulation with screening tube PN16
- PTFE insulation with screening tube PN40
- PTFE insulation and concentric tube
Materials, wetted parts
- PTFE
- 316L
- Alloy C22 (2.4602)
- Alloy 400 (2.4360)
- PE
- Steel C22.8
Threaded connection
- ≥ G½, ≥ ½ NPT
Flange connection
- ≥ DN25, ≥ 1″
Seal material
- no media contact
Housing material
- Plastic
- Aluminium
- Stainless steel (precision casting)
- Stainless steel (electropolished)
Approvals
Scope
- ATEX / Europe
- CSA / Canada
- FM / USA
- EAC (GOST) / Belarus
- EAC (GOST) / Kazakhstan
- EAC (GOST) / Russia
- IEC / worldwide
- KOSHA / Korea
- NEPSI / China
- UKR Sepro / Ukraine
- INMETRO / Brazil
Explosion protection
- Intrinsic safety “i”
- Dust ignition protection “t”
Foodstuffs/Pharma
- FDA
Ship approval
- ABS
- BV
- CCS
- DNV
- GL
- LR
- RINA
- RMROS
Overfill protection
- WHG
- VLAREM II
SIL qualification
- SIL2
Display & adjustment
Adjustment
- PLICSCOM
- PC, PACTware and DTM
- HART-Communicator
- Software (e. g. AMS™, PDM)
Indication
- Display/adjustment module PLICSCOM
- VEGADIS 81
- VEGADIS 82
Documentation
Capacitive
VEGACAL 62, 63, 64, 66, 69
VEGACAL 63
Two-wire: 4 … 20 mA/HART
VEGACAL 63
Two-wire: 4 … 20 mA/HART
Connection cable
