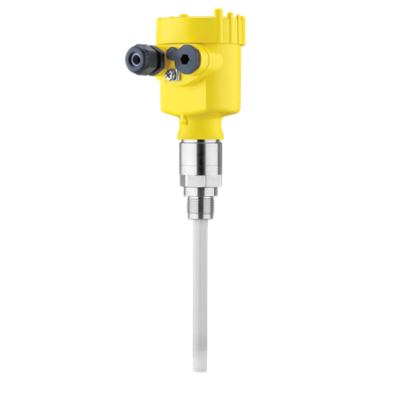

VEGACAL 64
Capacitive rod probe for continuous level measurement of adhesive products
Rod probe, fully FEP insulated
Application area
For conductive and non-conductive liquids. The rod measuring probe is fully insulated and especially suitable for viscous and adhesive products. A full/empty adjustment is necessary for setup.
The VEGACAL 64 is a level sensor for conductive and non-conductive liquids. The rod electrode is fully insulated and is particularly suitable for viscous and adhesive products.
Your benefit
- Reduced number of cleaning cycles through measurement insensitive to buildup
- Long lifetime and low maintenance requirement through robust mechanical construction
- Maximum utilization of the vessel because measurement over the complete probe length
Technical specifications
Measuring range – Distance
- 4 m [Meter – Foot]
Process temperature
- -50 … 150 °C [°C – °F]
Process pressure
- -1 … 64 bar [Bar – kPa – psi]
Version
- FEP insulation
Materials, wetted parts
- 316L
- FEP
- Steel C22.8
Threaded connection
- ≥ G¾, ≥ ¾ NPT
Flange connection
- ≥ DN25, ≥ 1″
Seal material
- no media contact
Housing material
- Plastic
- Aluminium
- Stainless steel (precision casting)
- Stainless steel (electropolished)
Protection rating
- IP66/IP68 (0,2 bar)
- IP66/IP67
- IP66/IP68 (1 bar)
Output
- Profibus PA
- Foundation Fieldbus
- Two-wire: 4 … 20 mA/HART
Ambient temperature
- -40 … 80 °C
Approvals
Scope
- ATEX / Europe
- CSA / Canada
- FM / USA
- EAC (GOST) / Belarus
- EAC (GOST) / Kazakhstan
- EAC (GOST) / Russia
- IEC / worldwide
- KOSHA / Korea
- NEPSI / China
- UKR Sepro / Ukraine
- INMETRO / Brazil
Explosion protection
- Intrinsic safety “i”
- Flameproof enclosure “d”
- Dust ignition protection “t”
Ship approval
- ABS
- BV
- CCS
- DNV
- LR
- RINA
- RMROS
Overfill protection
- WHG
- VLAREM II
SIL qualification
- SIL2
Display & adjustment
Adjustment
- PLICSCOM
- PC, PACTware and DTM
- HART-Communicator
- Software (e. g. AMS™, PDM)
Indication
- Display/adjustment module PLICSCOM
- VEGADIS 81
- VEGADIS 82
