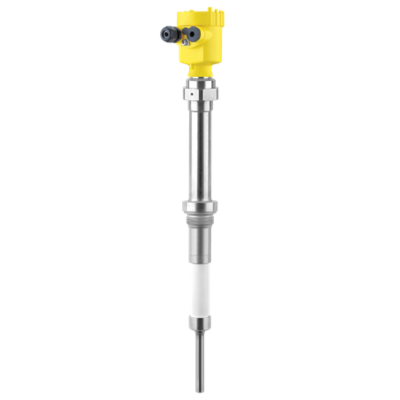

VEGACAL 67
Capacitive high temperature probe for level measurement of bulk solids
Rod probe, partly ceramic insulated
Application area
For measurement of bulk solids at high process temperatures up to +400 °C. A full/empty adjustment is necessary for setup.
The VEGACAL 67 level sensor can be used universally for continuous level measurement of bulk solids at high process temperatures.
Your benefit
- Precise measuring results in virtually all bulk solids and high temperature ranges
- High flexibility through shortenable probe
- Long lifetime and low maintenance requirement through robust mechanical construction
Technical specifications
Measuring range – Distance
- 40 m [Meter – Foot]
Process temperature
- -50 … 400 °C [°C – °F]
Process pressure
- -1 … 16 bar [Bar – kPa – psi]
Version
- Ceramic insulated cable probe
- Ceramic insulated cable probe with crimping sleeve
- Ceramic insulated rod probe
Materials, wetted parts
- 316L
- Ceramic
- 316
Threaded connection
- ≥ G1½, ≥ 1½ NPT
Flange connection
- ≥ DN50, ≥ 2″
Seal material
- no media contact
Housing material
- Plastic
- Aluminium
- Stainless steel (precision casting)
- Stainless steel (electropolished)
Protection rating
- IP66/IP68 (0,2 bar)
- IP66/IP67
- IP66/IP68 (1 bar)
Output
- Profibus PA
- Foundation Fieldbus
- Two-wire: 4 … 20 mA/HART
Ambient temperature
- -40 … 80 °C
Display & adjustment
Adjustment
- PLICSCOM
- PC, PACTware and DTM
- HART-Communicator
- Software (e. g. AMS™, PDM)
Indication
- Display/adjustment module PLICSCOM
- VEGADIS 62
- VEGADIS 81
- VEGADIS 82
