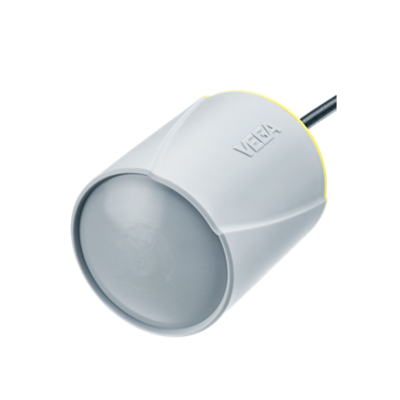

VEGAPULS C 23
Wired radar sensor for continuous level measurement
For standard measuring tasks, IP66/IP68, Type 6P
Application area
Axial cable outlet, measuring range up to 30 m, accuracy ±2 mm, 4 … 20 mA, HART, SDI-12 or Modbus output, Ex-approval optional
VEGAPULS C 23 is the ideal sensor for non-contact level measurement in simple applications where a high degree of protection is required. It is particularly suitable for use in water treatment, pumping stations and rain overflow basins, for flow measurement in open channels and level monitoring. In bulk solids, the sensors are used in medium-sized bulk solids silos, segmented vessels or open heaps.
Your benefit
- Exact measurement results independent of medium, process and environmental conditions
- Unaffected by vessel installations due to very good signal focusing
- Maintenance-free operation due to non-contact 80 GHz radar technology
Technical specifications
Measuring range – Distance
- 30 m [Meter – Foot]
Process temperature
- -40 … 80 °C [°C – °F]
Process pressure
- -1 … 3 bar [Bar – kPa – psi]
Accuracy
- ± 2 mm
Frequency
- 80 GHz
Beam angle
- 4°
Materials, wetted parts
- PVDF
Threaded connection
- G1, 1 NPT, R1
Protection rating
- IP66/IP68 (3 bar), Type 6P
Output
- 4 … 20 mA/HART
- Modbus
- SDI-12
Ambient temperature
- -40 … 80 °C
Approvals
Scope
- ATEX / Europe
- IEC / worldwide
- NEPSI / China
- INMETRO / Brazil
- CCOE / India
- KTL Korea
- CSA / USA and Canada
- FM / USA and Candada
- TIIS / Japan
- IA
- UKEX
Explosion protection
- Intrinsic safety “i”
- Dust ignition protection “t”
- Encapsulation “m”
Foodstuffs/Pharma
- FDA
- Drinking water
- EG1935/2004
Ship approval
- ABS
- BV
- CCS
- DNV
- LR
- NK
- RINA
Overfill protection
- WHG
- VLAREM II
Display & adjustment
Adjustment
- PC, PACTware and DTM
- Smartphone / Tablet / PC via Bluetooth
Documentation
Radar
VEGAPULS C 11, C 21, C 22, C 23, 11, 21, 31
VEGAPULS C 23
Two-wire: 4 … 20 mA/HART
VEGAPULS C 23
Two-wire: 4 … 20 mA/HART
Mounting bracket for VEGAPULS radar sensors
Accessory
Connection cable
Alignment device for VEGAPULS radar sensors
Accessory
