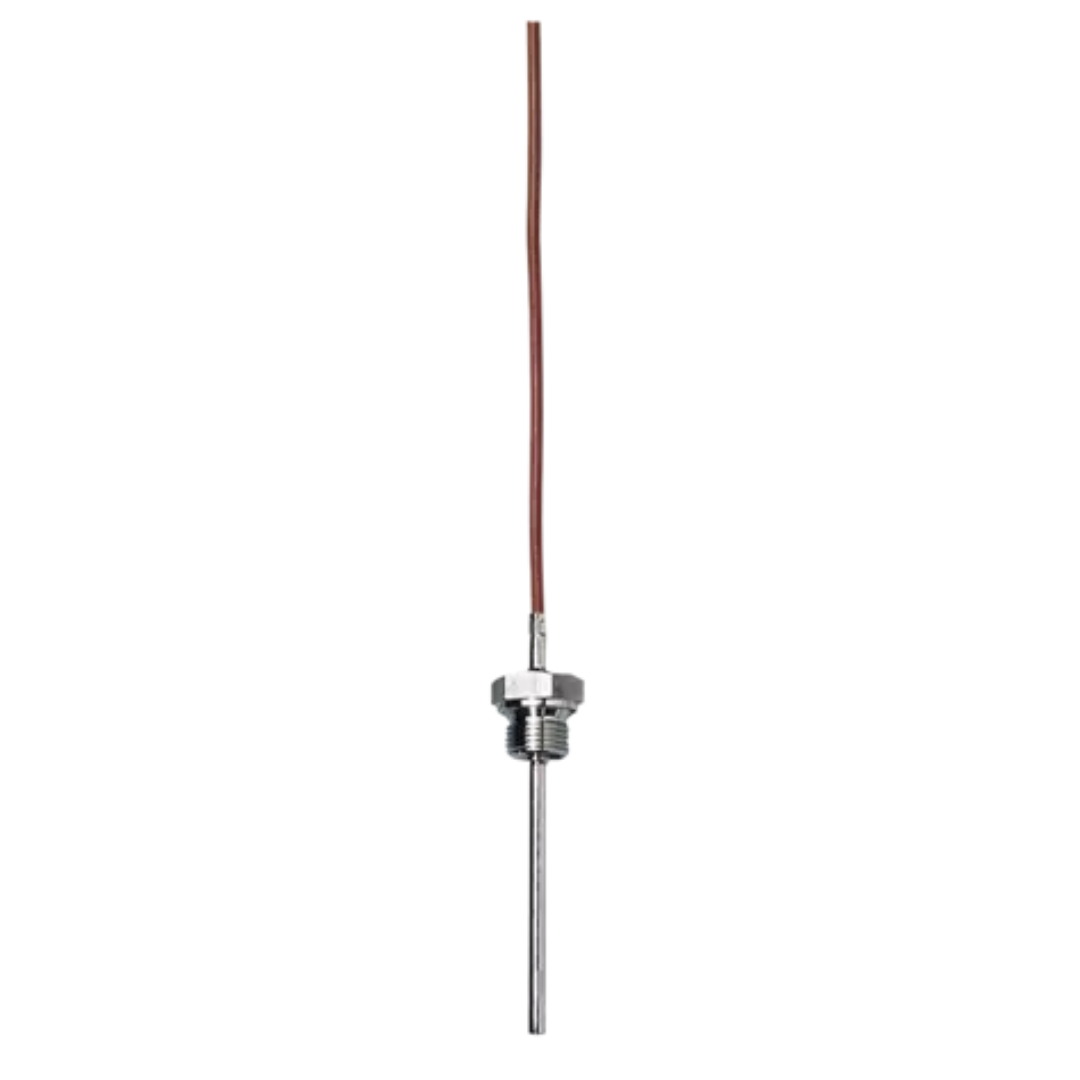

Screw-in thermocouples
Screw-in thermocouples are primarily used for measuring temperatures in liquids and gases. Depending on the version, the compensating cables are suitable for dry or humid rooms that have a temperature range from -20 to +350 °C.
Technical data
| general technical data | |
|---|---|
| Operating temperature | -200 to +600 °C |
| Thermocouples | L, K |
| Connection | Cable |
| Compensating cable | Silicone, ambient temperature -50 to +180 °C; metal braiding, ambient temperature -20 to +350 °C |
| Protection fitting | Stainless steel |
| Process connection | Thread |
| Measuring circuits | 1/2 |
| Special features | Cable made of silicone, PTFE, metal braiding; meets the specification according to AMS2750 and CQI-9 |
| Option | Non-insulated construction |
| Areas of application | Industrial kitchen equipment suppliers, tempering equipment, plastics industry |
Downloads
Data Sheet
Certificate
Brochure
Brochure
Order details
