Thermocouples

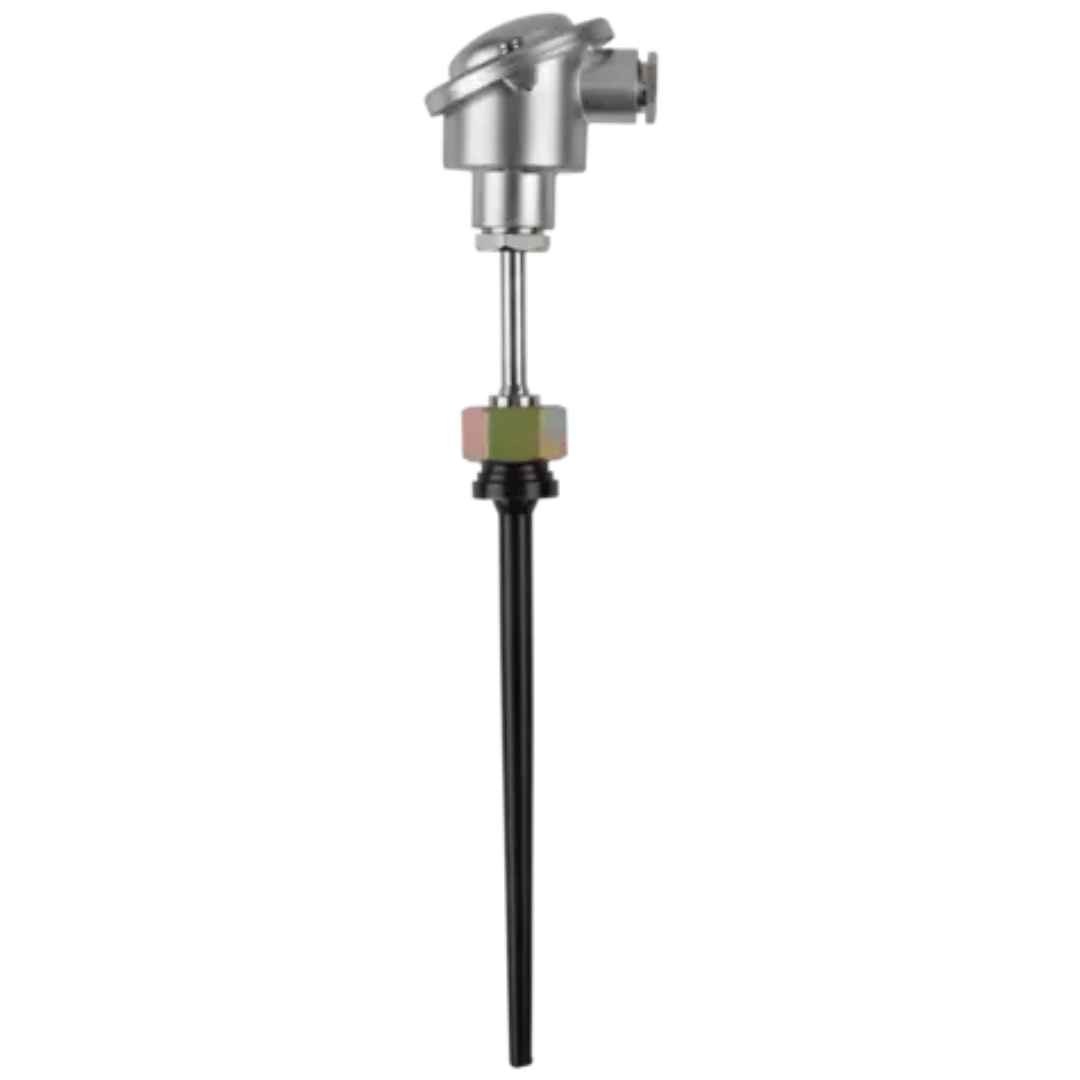

Screw-in thermocouples are predominantly used for measuring temperature in liquids and gases. Protection tubes made of various materials protect the measuring insert against chemical influences and mechanical damage.
Technical data
| general technical data | |
|---|---|
| Special features | Protection tubes made from various materials |
| Operating temperature | -35 to +1500 °C |
| Protection fitting | Stainless steel 1.4571, steel 1.0305, ceramic KER 710, sheath cable Inconel 600 2.4816 |
| Approvals | DIN EN 14597, DIN 4754 |
| Thermopairs | B, K, L, S |
| Process connection | G 1/2 |
| Insertion length | 50 to 5000 mm |
| Terminal heads | Form B DIN 43729 |
| Option | Adjustable stop flange, weld-in sleeve, compression fitting, push-in mineral-insulated thermocouples with compensating cable |
| Areas of application | Heating, furnace, and apparatus engineering; tested control and limitation devices |
