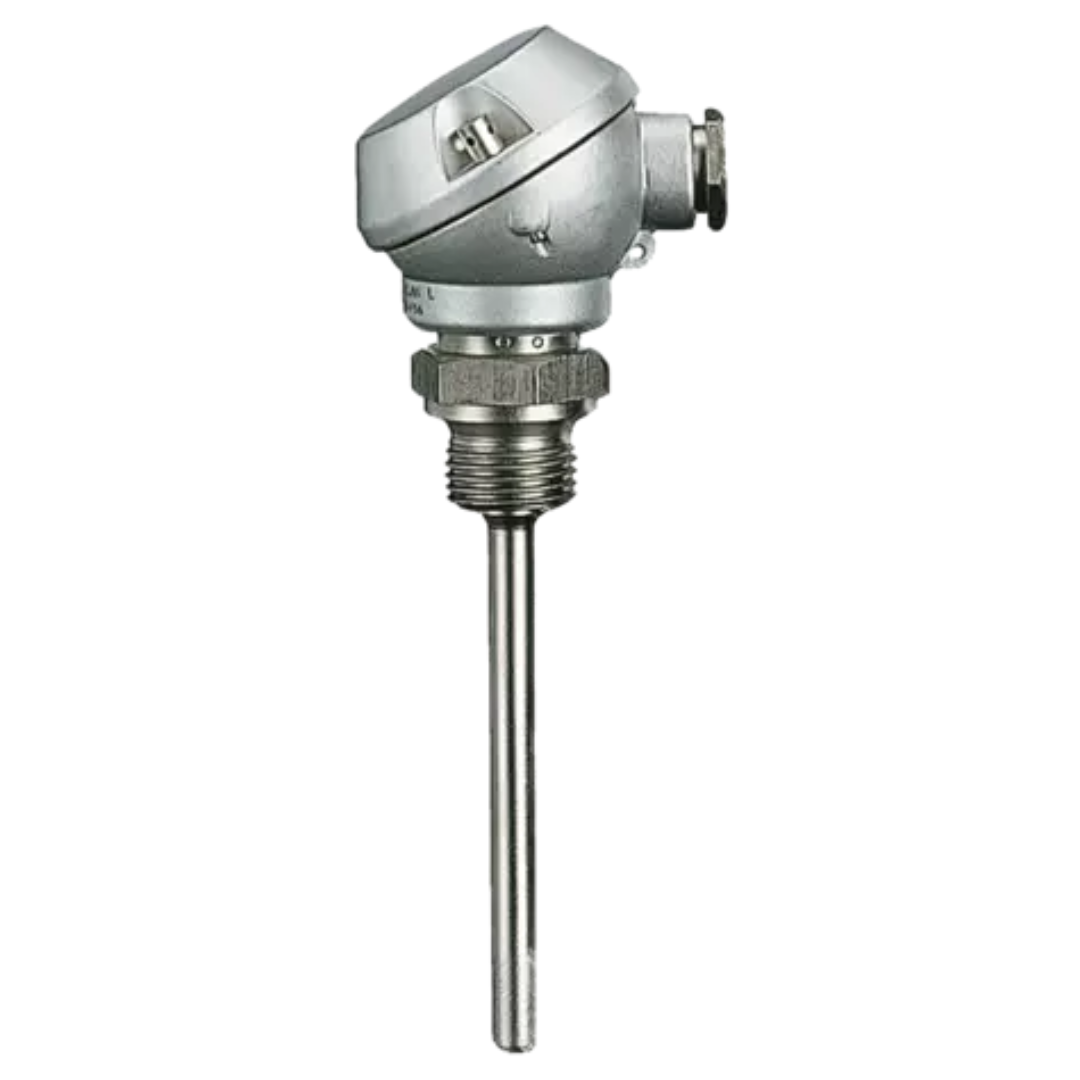

Mineral-insulated thermocouples
Mineral-insulated thermocouples are made of a flexible, thin-walled sheath cable in which the thermocouple wires are embedded in compressed fire-resistant magnesium oxide. The good thermal transfer between the sheath and the thermocouple enables short response times and high measuring accuracy.
Technical data
| general technical data | |
|---|---|
| Terminal head | J, aluminium die-cast |
| Process connection | Screw connection G 1/2, screw connection G 3/8 |
| Protection tube | Stainless steel 1.4541, Inconel 2.4816 (Inconel 600) |
| Measuring insert | J, K, L, N |
| Option | Application-specific insertion length, protection tube diameter as of 0.5 mm, programmable transmitter |
| Areas of application | Chemical plants, power plants, pipes, engine manufacturing, and test benches |
| Protection type | IP65 |
| Special features | Flexible sheath cable with vibration-resistant measuring insert, fast response time |
